Generator Manufacturers and Factories

Home Generator Products Horizontal Axis Wind Turbine Generator Power Set 10kw

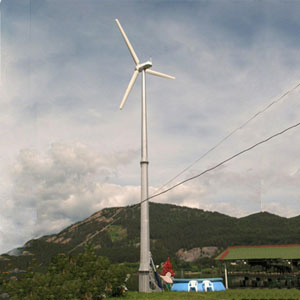

Horizontal Axis Wind Turbine Generator Power Set 10kw

Horizontal Axis Wind Turbine Generator Power Set 10kw
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Application of 10kW Horizontal Axis Wind Turbine Generator:
1) Home, Office, Farm and Factory;
2) Telecommunications Station;
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station.
6) Horizontal Axis Wind Turbine Generator 10kW

Currently our company supply:
1) Wind-solar hybrid led light system;
2) Off grid/on grid wind power generating system
3) Wind-solar hybrid power generating system;
4) Wind-solar-diesel hybrid power generating system;

Model No.H8.0-10KW
Configuration3 Blades, Horizontal axis, Upwind
Rotor Diameter8.0 m / 26.2 ft
Swept Area50.27 m2 / 541.1 ft2
 Direction of RotationClockwise looking upwind
Blade MaterialFiberglass reinforced composite
Rated Power10 kW
Battery Bank Voltage240 Vdc
System Output Voltage110/220V single phase or 380V three phase
Cut-in Wind Speed3 m/s
Rated rotating rate200 r/min
Working Wind Speed3-25 m/s
Survival Wind Speed50 m/s
AlternatorPermanent magnet alternator, SCF technology
Alternator Weight287 kg / 632.7 lbs
Energy monitoring & User controlSiemens PLC controller with touch screen
GearboxNone, Direct drive with front generator design
Over Speed RegulationAuto Yawing & Hydraulic Braking(optional)
Shutting Down MethodManual & Automatic electromagnetism Braking
 Warranty 2 years

Prod Model: H8.0-10000W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power: 10000W
Maximum Output Power: 15000W
Rotor Blades Diameter: 8m
Start-up Wind Speed: 3m/S
Working Wind Speed: 3m/S - 25m/S
Over-Speed Regulation Method: Electromagnetism Brake, Yawing
Survival Wind Speed: 50m/S
Shut-Down Way: Auto or Manual
Tower: Freestanding Tower or Hydraulic Tower
Certificate: CE,UL,ISO
Number Of Blade: Three Blade
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Certification: ISO, CE, UL
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.

We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.

There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.

All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.

Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.

Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
