Residential Wind Turbine Generator-Easy Erected(different models). Product ranges from 400W to 100KW.

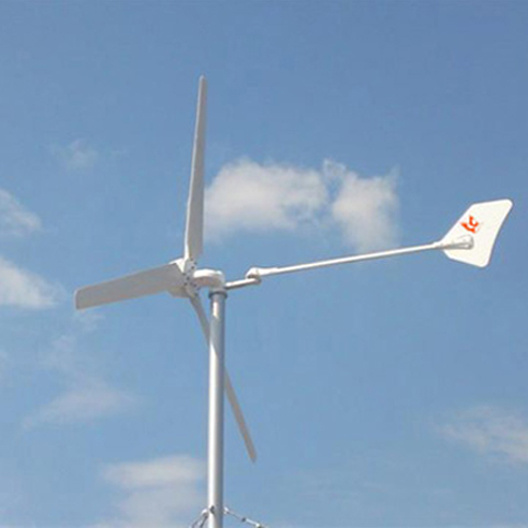

Hummer 2000W wind turbine can be applied in both on-grid and off-grid systems. It can drive a load below 2000W.
1. Product Features:
A) SCF Supercritical generator
Hummer's wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator's weight and size down to 25% to 30% of the traditional one, and the production efficiency is 25% to 30% higher. This ensures that the generator functions perfectly in small wind condition.
B) SKF bearings
Hummer wind turbine adopts two SKF (Svenska Kullager Fabriken) bearings which are produced by the largest bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. Ordinary bearings need to be changed every two or three years, while SKF bearings can greatly reduce the maintenance costs on this matter.
C) Low noise
The design of the rotor blade of Hummer wind turbine absorbs the highlights of the small aircraft's airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.
D) Double braking protection
Hummer 2000W wind turbine adopts the double braking protection system, which are the yawing mechanism and the electromagnetic braking system to regulate the rotation of the wind turbine. It is safe and convenient to shut down the whole system both manually and automatically.
2. Application area:
A) Housing, office, farm and factory;
B) Telecommunications Station;
C) TV Transfer Station;
D) Monitoring Station (military, hydrology, observatory)
E) Water-pumping Station;
3. Company strong strength:
A) High Technology--Won gold award of 37th World Invention Exposition in Brussels Eureka WITH 7 Patents;
B) Certification--CE, UL, ISO Certificate;
C) Hight Service--Long time warranty with Unique Service department.
4. Currently Product Range:
A) 500W-100kw wind turbine Off-grid /Grid-tied;
B) 400W-600W Wind-Solar LED street light and traffic light;
C) Wind-Solar hybrid generating system;
D) Wind-Solar-Diesel hybrid generating system.
5. We have more different models for Residential with different power, just offer your Home Appliances' power, then we will suggest the most suitable wind turbine for you.
|
Rated power(W) |
2000 |
|
Maximum output power(W) |
3200 |
|
Charging voltage(V) |
DC120V |
|
Blade quantity(PCS) |
3 |
|
Rotor blade material |
GRP |
|
Rotor blade diameter(m) |
3.8 |
|
Start-up wind speed(m/s) |
3.0 |
|
Rated wind speed(m/s) |
9.0 |
|
Rated rotating rate(r/min) |
450 |
|
Wind energy utilizing ratio(Cp) |
0.45 |
|
Generator output |
Single-phase frequency conversion AC |
|
Rated charging current(A) |
16.7 |
|
The maximum charging current(in a short time)(A) |
28 |
|
Output AC frequency(Hz) |
0-370 |
|
Generator efficiency |
> 0.8 |
|
Tower height(m) |
10m |
|
Generator weight(kg) |
25 |
|
Speed regulation method |
Yawing+electromagnetism braking |
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
