Generator Manufacturers and Factories

Home Generator Products Horizontal Axis Medium-Sized Wind Turbines Generator with CE/UL

Horizontal Axis Medium-Sized Wind Turbines Generator with CE/UL

Horizontal Axis Medium-Sized Wind Turbines Generator with CE/UL
Price: US $ 54380/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

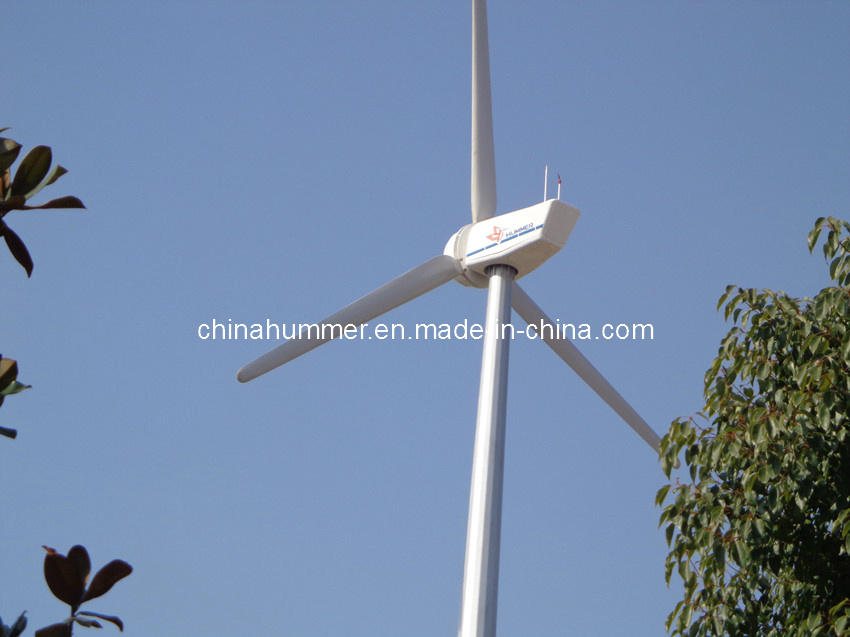

Hummer 60kW wind turbine can be applied in both on-grid and off-grid systems. It outputs three-phase AC and it can drive load below 60kW.

1. Product Features:

1). SCF Supercritical generator
Hummer's wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology makes real that the weight and size of hummer 60kW generator are two-thirds of the traditional one, and the generator efficiency is improved from 0.22~0.28 to 0.42. This ensures that the generator functions perfectly in small wind condition.

2). NSK bearings
Hummer 60kW wind turbine adopts the NSK bearings which are produced by the renowned bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. As well as enabling smooth and quiet rotation, they also perform an important function by taking on the motor's load.

3). PLC integrated with Siemens module
Hummer wind turbine's controlling system adopts the smart touch-screen PLC (Programmable Logic Controller) which is integrated with Siemens controlling unit. The PLC will alarm and adjust the abnormal running status of the wind turbine automatically both timely and efficiently. Siemens module offers high reliability to our PLC and its customers worldwide can testify for that.

4). Low noise
The design of the rotor blade of Hummer wind turbine absorbs the highlights of the small aircraft's airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.

5). Triple braking protection
Hummer 60kW wind turbine adopts the triple braking protection system, which are the yawing mechanism, the electromagnetic braking system and the hydraulic braking system to regulate the rotation of the wind turbine. It is easy and convenient to shut down the whole system both manually and automatically.


2. APPLICATION AREA:
1) Housing, office, farm and factory;
2) Telecommunications Station
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station;


3. CURRENTLY PRODUCT RANGE:

1)500W-100kw wind turbine Off-grid /Grid-tied;
2)400W-600W Wind-Solar LED street light and traffic light;
3)Wind-Solar hybrid generating system;
4)Wind-Solar-Diesel hybrid generating system
 Item Name  Data
 Rated Power(W)  60000
 Maximum Output Power(W) 68000
 Start-up Wind Speed(m/s)  3
 Rated Wind Speed(m/s)  11
 Working Wind Speed(m/s)  2.5-25
 Survival Wind Speed(m/s)  50
 Rated Rotating Speed(r/min)  140
 Generator Efficiency  >0.92
 Wind Energy Utilizing Ratio(Cp)   0.42
 Generator Type  Permanent Magnet Alternator
 Generator Weight(kg)  1500
 Blade Material/Quantity  GPR/3
 Blade Diameter(m)  14.1
 Speed Regulation Method   Yawing+electromagnetism braking+hydraulic braking

Prod Model: H14.1-60KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Generator Type: Permanent Magnet Alternator
System Output Voltage(VAC): 380
Generator Efficiency: >0.92
Generator Weight(Kg): 1500
Blade Material/Quantity: GRP/3
Wind Energy Utilizing Ratio(Cp): >0.42
Certification: CE, UL, ISO
Gearbox: None, Direct Drive with Front Generator
Direction Of Rotation: Clockwise Looking Upwind
Rotating Shaft: Horizontal
Number Of Blade: Three Blade
Stress Way Of Blade: Resistance
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.

We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.

There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.

All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.

Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.

Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
