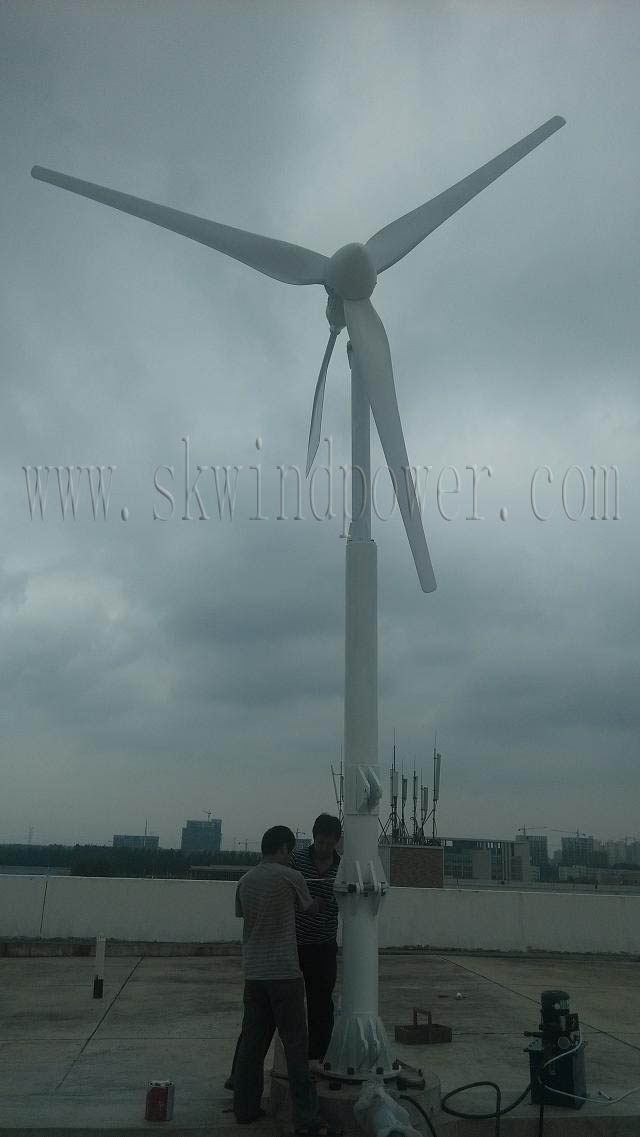

Home Wind Turbine/Home Wind Generator/Horizontal Axis Wind Turbine, Qingdao Saint-Kin Engineering Co., ltd (skwindpower) is one of the world's leading designers and suppliers of Wind Power System, solar, Wind Solar hybrid Systems, water and alternative fuels, especially Wind Turbine, Wind Turbine Generator, Controller, Inverter and windmill tower. Wind solar power systems are more and more popular and widely used, like wind farm, monitoring, farming, fishing, islands, countryside, connecting to grid-tie, etc.
Our team play important roles in China and international markets of wind power, and do effects on increasing efficiency and quality of China Wind Turbine, China Controller, China Inverter, etc. The most important is that our horizontal axis wind turbine and vertical axis wind turbine are safest.
Wind Generators are Permanent Magnet Generator and Top Quality Bearings are used. Electric Control of Variable BLADE Pitch and Rotating Shaft Horizontal Axis Wind Turbine with PATENT, which is kept in higher efficiency and safety is done best.
Wind Turbine Controllers are Charge Controller and Logic Controller with PWM. Top brand components are used in Controller, like ATMEGA single chips, etc., which make controllers work normally through storm or when wind speed is over40m/s. Capacity of controlling is 30%higher than rated power. Control for on-grid systems or off-grid systems are manufactured.
Wind Turbine Inverters are on-grid and off-grid. Output of Pure Sine Wave Power Frequency Wind Inverters, adopted Isolation transformator, is pure, stable but safer. Our Wind Turbine Inverters are perfect multi-protection, like under voltage, overload, overheating, short circuit etc. This inverter can be used on solar power systems too.
Patterns of wind turbine are Horizontal axis Wind Turbine (HAWT) and Vertical Axis Wind Turbine (VAWT), home use wind turbine, small wind turbine, etc. The whole systems are mainly designed by our own engineers and cooperate with famous companies. Wind energy utilization rate (Betz No. ) is 42% for horizontal axis wind turbines, while it is above 35% for vertical axis wind turbines. Mainly sizes are 300w, 500w, 1kw, 2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw, etc.
Items
Rated power |
500W/600W |
1KW |
2KW |
3KW |
5KW |
|
Max power(W) |
750W/900W |
1500W |
3000W |
4000W |
6500W |
|
Blade diameter(M) |
2.7M |
3.2M |
3.8M |
4.5M |
5.0M |
|
Materials of blades |
Fibre Glass Reinforced Plastics |
|
Wind Generator |
3 phases AC, Permanent Magnet Generator |
|
Rated rotor( R/MIN) |
400 R/MIN |
360 R/MIN |
300 R/MIN |
240 R/MIN |
200 R/MIN |
|
Start-up torque(N.m) |
<0.3 N.m |
<0.6 N.m |
<0.8 N.m |
<1.0 N.m |
<1.2 N.m |
|
Poles (PAIR) |
5PAIR |
10PAIR |
14PAIR |
28PAIR |
42PAIR |
|
Rated speed(M/S) |
7M/S |
8M/S |
8M/S |
9 M/S |
10 M/S |
|
Start up wind speed(M/S) |
2.5M/S |
3M/S |
3M/S |
3M/S |
3M/S |
|
Work speed(M/S) |
3-25M/S |
3-25M/S |
3-25M/S |
3-30M/S |
3-30M/S |
|
Security wind speed(M/S) |
40M/S |
50M/S |
50M/S |
50M/S |
50M/S |
|
Noise Level(dBA) |
20dBA |
25dBA |
28dBA |
32dBA |
34dBA |
|
Output voltage(V) |
12V-24V |
24V-48V |
48V-96V |
48V-120V |
48V-192V |
|
Top quality(KG) |
45KG |
60KG |
90KG |
120KG |
180KG |
|
High of tower(M) |
6M |
6M |
6M |
9M |
9M |
|
Guyed tower(STEEL TUBE) |
75MM*5MM |
75MM*MM |
89MM*5MM |
133MM*5MM |
159MM*6MM |
|
Suggested battery(PCS) |
12v150ah/2pcs |
12v150ah/4pcs |
12v200ah/ 6/8pcs |
12v200ah/10pcs |
12v200ah/16pcs |
|
Annual generation(KWH) |
750-1800(KWH) |
1500-3000(KWH) |
3000-6000(KWH) |
4500-9000(KWH) |
7500-15000(KWH) |
Wind Turbine, Wind Turbine Generator, Horizontal Axis Wind Turbine, Vertical Axis Wind Turbine, Controller, Charge Controller, Logica Controller, Inverter, On-grid Inverter, Grid tie inverter, off grid inverter, are supplied by Saintkin Industrial Co., Ltd, China is an enterprise of new energy, engaged in designing, manufacturing, sales, technology service and financial assistance, especially professional of small and medium-size wind turbine system together with relevant towers, as well as concret pumps and other machinery etc.
Since established, the company has constantly striven to technical innovation and the reliability of the products, to supply the best quality products and technical support to the customer's satisfaction. At present, the wind turbines range from 300W, 400W, 500W, 600W, 1kw, 2kw, 3kw, 5kw, 10kw, 20kw, 30kw to 50kw. All models are produced to quantify, so that the clients' purchasing demands can be satisfied.
PRICE: It is quite assured that your co-operation will enjoy the most favourable price in the Chinese Market owning to our shareholders at the factories, the fiancial advantages from the domestic market, the favourable policy from the local government.
QUALITY: Your inquired products can meet the requirements of the regulations and/or standard at your target market or meet the administrative approval requirements of the department of your country or international society and organization. Special orders are also highly appreciated.
GUARANTEE: Your down or advance payments, in case necesssary, will be secured by a Bank Guarantee issued from either a bank of China or a western bank, whichever you prefer to choose. The strong financial assistance to you is also an abundant resource to ensure your projects successful. Therefore, no matter in the terms of payment(s), or in the way of sub-service, you will enjoy the first class service and the most favourable conditions.
WAYS: The way of co-operation is flexible. Any import and export businesses are welcome for discussion. The business scope covers not only the import and export business, but also products agency, distribution, investment etc. Your inquiry and order with or without special requirements or specifications would be highly appreciated by all means.
