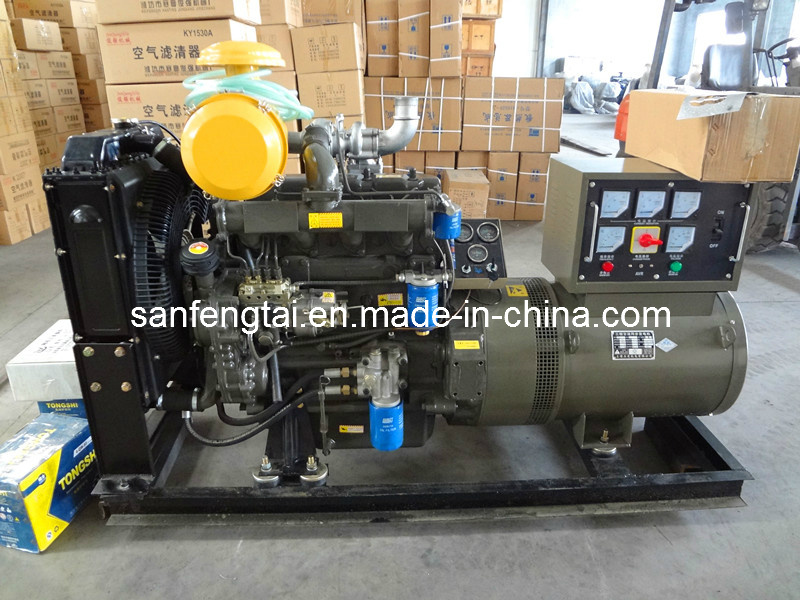

Deutz Diesel Generator Sets
Deutz Diesel gensets have excellent performance, small size, light weight, low fuel consumption, low noise, meet the European II, III emission standards, widely used in luxury buses, Truck, Special vehicles, engineering machinery, oil equipment, power generation equipment, and other fields.
Specifications:
1.diesel generator
2.8-24 hours base fuel tank
3.low fuel consumption
4.Highly Corrosion Resistant Construction
5.low noise
Generator set standard configuration
1. Direct injection internal combustion engine (Diesel);
2. AC synchronous generator(Single bearing);
3. For the environment 40 º C -50 º C radiator, belt-driven cooling fan, fan safety cover;
4. Power output air switch, standard control panel;
5. Common steel base unit (including: Unit damping rubber pad);
6. Dry air filters, fuel filters, lubricating oil filters, starting motor, and self-charging generator;
7. Starting storage battery and connecting cable;
8.Industrial 9dB muffler and connection standard parts;
9. Files: Engine and generator original technical documentation, generating set manual, test report.
Optional accessories:
1. Oil, diesel, water jacket, anti-condensation heater;
2. Battery float charger;
3. Self-protection, self-starting unit control panel;
4. With the "three remotes" unit control panel;
5. ATS automatic load converter;
6. Split daily fuel tank, integrated base fuel tank;
7. Rainproof unit (cabinet);
8. Silent unit (cabinet);
9. Mobile station(cabinet trailer);
10Silent mobile station(cabinet trailer).
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Our service quality assurance:
1. Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2. Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service: We create files for end user and provide them follow-up service.
Similar products:
Weichai diesel generator, Doosan generator set, Volvo diesel generator set, Cummins power generator, and soundproof generator, movable generator etc, power range from 10kVA to 2200kVA.
Our factory:
We are professional generator supplier, I think we must have one type even more can match what you need!
Just send us your inquiry, we will high appreciate it!
|
Genset Model |
GFDC-XZ40 |
|
SET |
Genset model |
GFDC-XZ40 |
|
Output power |
40KW |
|
Power factor |
0.8(lagging) |
|
Output voltage |
400V/230V |
|
Output current |
72A |
|
Rrted Freguency |
50hz |
|
Rated Rotating speed |
1500rpm |
|
The grade of fuel |
(standard)0#light diesel (normal) |
|
Dimension |
1750*650*1350(L*W*H mm) |
|
Genset weight |
690kg |
|
Voltage Regulation steady state(%) |
≤±1 |
|
Voltage fluctuation rate(%) |
≤±0.5 |
|
Voltage regulation transient state(%) |
+20~-15 |
|
Voltage stability time(s) |
≤1 |
|
Reguency regulation steady state(%) |
≤±1 |
|
Requency fluctuation rate(%) |
≤±0.5 |
|
Requency regulation transient state (%) |
+10~-7 |
|
Reguency stability time(s) |
≤3 |
|
Fuel consumption at 100% load |
≤209g/kw*h |
|
Nose(LP7m) |
95dB(A) |
|
ENGINE |
Place of origin/brand |
DEUTZ |
|
Diesel engine model |
TD226B-3D |
|
Number of cylinders |
3/L model |
|
Bore*stroke |
105*120 mm |
|
Compression ratio |
15.5:1 |
|
Starting method |
DC12V Electrical starting |
|
Cooling system |
Closed water circulation cooling |
|
Oil way |
Direct injection |
|
Speed governors method |
Mechanical speed governors |
|
Intake way |
Turbocharge |
|
Overload capacity |
110% |
|
Rotating speed |
1500rpm |
|
ALTERNATOR |
Place of origin/brand |
JiangYue |
|
Alternator model |
W224D |
|
Rated power |
40Kw |
|
Rated voltage |
400V/230V |
|
Insulation class |
H class |
|
Protection class |
IP22 |
|
Connecting type |
3phase4wires Y type |
|
Accommodation type |
AVR |
|
Output frequency |
50hz |
|
Output factor |
0.8(lagging) |
