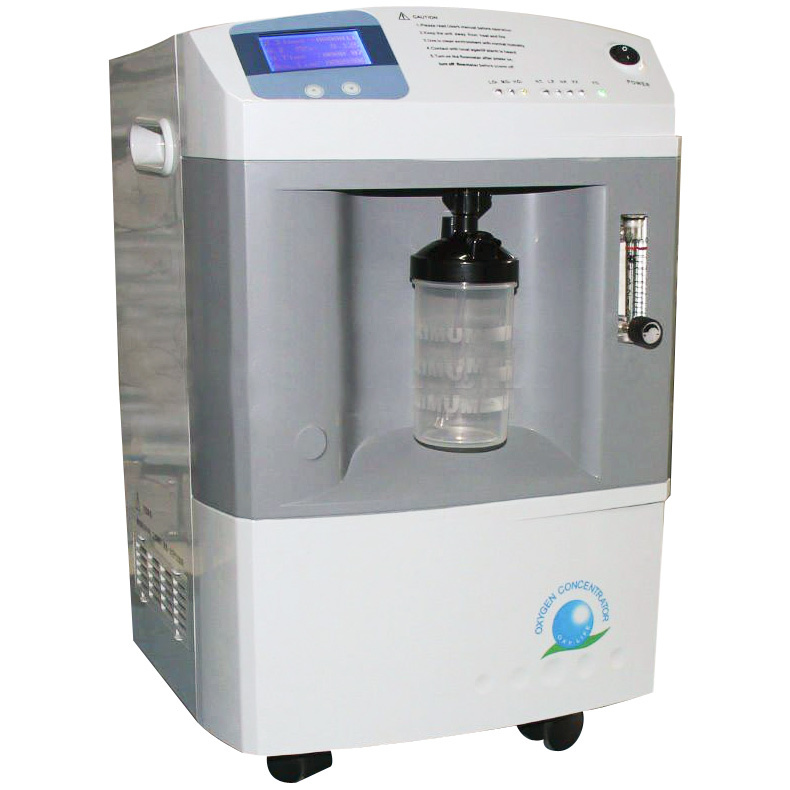

Oxygen concentrator(JAY-5)
FEATURES:
PSA(Pressure Swing Adsorption) technology
Adjustable flowrate
Large LCD display for: Accumulating timing, present timing, presetting timing.
Digital: Pressure digital, temperature digital, purity digital, SpO2 digital.
Maintenance reminding.
SPECIFICATION:
Oxygen flow(L/min): 3L, 5L, 8L, 10L
Purity (%): 93%± 3%
Outlet pressure(Mpa): 0.04-0.07
Sound level dB(A): ≤ 50
Power: AC220± 10%50/60± 1Hz AC110± 10% 50/60± 1Hz (special demands are available)
Power consumption: ≤ 480W
Timer: Accumulating timing: Present timing
Alarm: Power failure alarm, High & Low pressure alarm, high temperature alarm
Net weight (kg): 27
Electric classification: Class II Grade B
Size(mm): 365× 375× 600
ALTERNATIVELY:
Nebulizer
Purity alarm: (Oxygen purity monitoring: When purity is above 85%, it will give green light; When the purity is between 85% and 73%, it will give yellow light; When purity is below 73%, it will give red light)
Maintenance alarm: Alarm for maintenance will be haeard after 3000 hours of operation.
|
Model |
JAY-3, JAY-5, JAY-8, AJY-10 |
|
Rated power |
350W/480W/480W/520W |
|
Operation voltage |
AC220V/110V±10;50/60Hz±1 |
|
Oxygen flow |
0-3L/5L/8L/10L/min |
|
Oxygen Concentration |
93%±3% |
|
Outlet pressure |
0.04-0.07Mpa |
|
Alarm |
Power failure;low & high pressure;temperature;low purity(optional);maintenance(optional) |
|
Sound Level |
≤50dB |
|
LCD display |
Accumulating timing;present timing;Timing |
|
Large LCD display (optional) |
Pressure digital;accumulating timing;present timing;presetting timing temperature digital; Optional:SPO2 digital;maintenance reminding; |
|
Electrical category |
Class II Type B |
|
Net weight |
21/26/26/27 Kg |
|
Dimension |
365*375*600mm |
Atomization particle
(optional) |
≤5μ reaches 90% only for atomization type |
Low purity alarm
(optional) |
When oxygen purity≥85%,the green lamp is on;
When oxygen purity is between 85% and 73%,yellow lamp is on;
When oxygen purity is
<73%,red lamp is on,indicating low purity |
|
|
|
