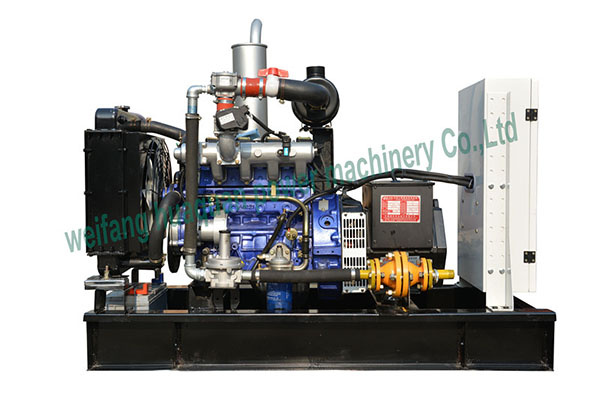

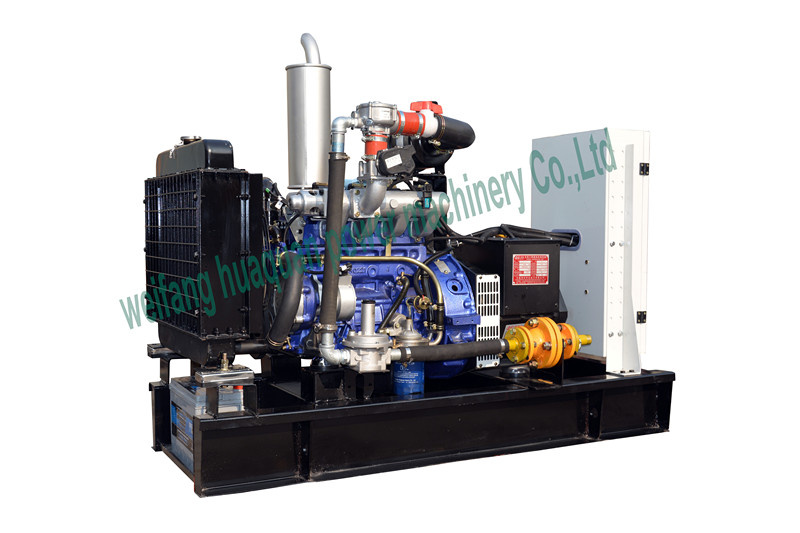

Home Generator From Chinese Famous Brand (Yangdong 10kw)
| Price: |
US $ 6422set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
10kw YANGDONG home generator from Chinese famous brand
Main Technical Parameters:
| Generating set general Model | HQ10GF-1 |
| Structure | integral |
| Exciting method | AVR Brushless |
| Rated Power (kVA/kW) | 12.5/10 |
| Rated Current(A) | 18 |
| Rated Voltage(V) | 400/230 |
| Rated Frequency(Hz) | 50 |
| Rated Power Factor | 0.8 LAG |
| Overall dimension (L x W x H)(mm) | 1240X600X1000 |
| Net weight (kg) | 390 |
| Gas Engine | Model | YD15D1.3 |
| Type | In line 4stroke, electric
control ignition, pre-mixed stoichiometry burn |
| Cylinder number | 3 |
| Bore x Stroke (mm) | 80X90 |
| Total displacement (L) | 1.5 |
| Compression Ratio | 9..6 |
| Rated Power (kW) | 15 |
| CHP recovery heat power (kW) | 19.9 |
| Rated Speed (r/min) | 1500 |
| Fuel type | Natural gas (CH4≥86.3% ) |
| Fuel consumption(Nm3/h) | 13kW (100%) | 11.7kW (90%) | 6.5kW (50%) | 3.3kW (25%) |
| (Calculate heat value is 38.18 MJ/Nm3) | 3.6 | 3.2 | 1.9 | 1 |
| Control panel | NPT Brand10KZY | LCD display |
| Circuit Breaker type | ATS SKT1-20 |
| Control Module | Smartgen HGM6320 |
| Alternator | Model | XN164DC |
| Brand | MBH( Germany brand) |
| Shaft | Single bearing |
| Rated Power (kW) | 10.8 |
| Rating(kVA) | 13.5 |
| Enclosure protection | IP23 |
| Efficiency (%) | 80 |
*High profit;*low maintenance cost;
*key/automatic start ;
*low noise level.
*Small size, low weight, easy to operate, installation and maintenance
*Advanced and reliable control module: Key start, auto start. Full range protects function and arm shutdown feature
*According to professional standards
*Supply soundproof canopy for your option
*Several gensets can be parallel connection, which can increase the total power range. In ddition, the gensets can take aintenance in different times, which will make little influence to the normal performance of gensets.
| Prod Model: |
HQ10GF-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Hauquan |
| Speed: |
1500/1800 R/Min |
| Frequency: |
50/60Hz |
| Colling Method: |
Water Cooled |
| Starting Mode: |
Electrical |
| Dimension (Lxwxh): |
1240X600X1000 Mm |
| Exciting Method: |
AVR Brushless |
| Weight: |
390 Kg |
| Borexstroke: |
80X90 Mm |
| Total Displacement: |
1.5L |
| Gas Source: |
Natural Gas |
