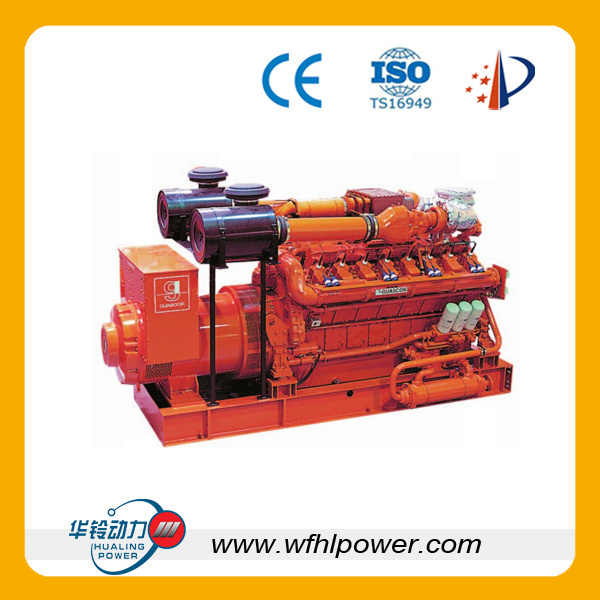

Gas genset Features:
1) Power range: 5kW to 800kW
2) Clean and environmental friendly
3) Longer life: Natural gas engine has a life of over several years if it is properly operated and maintained
4) Low operation cost: Natural gas has a rich reserve with low cost and a high rate of return
5) High profit: Low operation cost, supply of electricity and thermal power at the same time, low maintenance cost
6) Coupled with brushless alternators of Leroy Somer / Engga
7) Well performed control system, high quality monitor instrument, with sound and light alarm devices, auto shutdown
8) Protection function: Over-current, under-voltage, auto-regulate voltage, reverse power
9) Monitor function: Speed, water temperature, lube-oil temperature, lube-oil pressure, exhaust temperature
10) Gas consumption: Less than 0.33cbm/kWh
11) Supply connection: 3 phase, 4 lines
12) Rated voltage: 400V
13) Rated speed: 1, 500rpm/1, 800rpma
14) Rated frequency: 50Hz / 60Hz
15) Rated power factor: 0.8
16) Exciting way: Brushless
17) Starting mode: 24V DC electric starting system
18) Cooling mode: Closed-circuit cooling system
genset |
HL20GF/24/25 |
50/64/75/90 |
100/120/132/150/165/180/ |
Rated power (KW) |
20/24/25 |
50/64/75/90 |
100/120/132/150/165/180/ |
Overall dimension(mm) |
1820×900×950 |
2675×965×1789 |
2832×965×1789 |
Weight(KG) |
700 |
2250 |
2500 |
Generator |
Marathon, Stanford,jienuelei and etc. |
Engine |
HL493(ISUZU power) |
HL6102(CUMMINS power) |
HL6126(STEYR power) |
Mode |
Four-stroke; Inline-four-cylinder; Water cooling; ECU control ignition;dry type thin wall chromium plating cylinder jacket |
Four-stroke; In-line six-cylinder; Water-cooling;pressurizing; Intercooler; single point electronic control injection;dry-type thin wall chrome-plating cylinder jacket |
Four-stroke;Inline six-cylinder; Water-cooling; pressurizing; Intercooler; single point electronic control injection ;dry type thin wall chrome-plating cylinder jacekt |
Engine power(KW) |
24/28/30 |
60/78/90/110 |
120/144/158/180/198/216 |
Rated speed(r/min) |
1500 |
Idling speed (r/min) |
800±50 |
Power factor |
0.8 laggy |
Fuel consumption rate ( g/kw.h) |
<210 |
Excitation way for generator |
Brushless |
Phase and connection |
3-phase 4-wire system |
Exhaust gas temperature at the front turbine |
≤650°C |
Insulation level |
F level |
Rated Voltage |
400V |
Rated Frequency |
50Hz |
Voltage |
Adjustment rate at the stabilized state ≤±5%
Transient adjustment rate ≤±20%
Time for stabilized state ≤±1.5s
Volatility ≤±0.8% |
Frequency |
Adjustment rate at the stabilized state 0~5%( adjustable)
Transient adjustment rate ≤±10%
Time for stabilized state ≤±10s
Volatility ≤±1% |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
