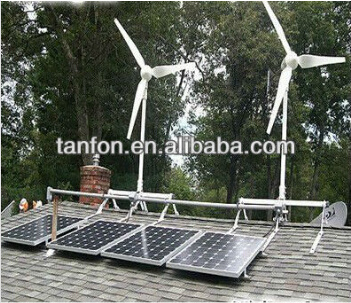

200W-50kw wind power system
This is Lim, if you are is urgent, can contact me directly or
Moble phone: 8613640397187
We can supply wind power system off grid 200W-50kw capacity
And solar wind hybrid system 300W-100kw capacity
The complete system include:
1) wind turbiner
2)wind controller
3)inverter
4)battery
5)pole or tower
6) cable
Wind turbine Feature:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4. Blades have 2 kinds, 300W-1kw have 3 PCS or 5 PCS choose, up to 2kw have lighted blades choose. 5. Noice level below 55dBaround the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.
Wind on grid system: Wind turbine +wind on grid controller +grid tie inverter
Wind off grid system: Wind turbine +wind controller+ battery +pure sine wave inverter
System Application:
1, Living house and home building;
2. Office building, factory and warehouse
3. Shopping mall, venue, stadium and so on
4. Power station, field operation and some huge engineer construction
TANFON 1KW Off grid wind power supply systems |
System
Basic Information |
Wind generator power:1000W
Annual average energy: 2500kWh
Supply power for water pump, TV, washer, fan |
list |
Wind generator
|
Model |
FD-1000 |
Rated power |
1000W |
Starting wind speed |
3m/s |
Cut-in wind speed |
3.5m/s |
Rated wind speed |
12.5m/s |
Security wind speed |
40m/s |
Rated DC voltage |
24/48V |
Rated speed |
650 r/m |
Rotor diameter |
2200mm |
Protection |
Electromagnetic torque
control and electricity brake |
Type |
3phase permanent magnetism
synchronization generator |
Blade material |
Extra-strong and tenacious
engineering plastics |
Packing material |
Carton box and foam material |
Packing dimension |
830*530*460mm |
N.W&G.W(kg) |
27/30kg |
|
QTY
1pcs |
Wind controller
|
Ws1kw/24v wind charger controller
Rated Battery Voltage: 24V
Wind Turbine Maximum Input: 40A
Unload Voltage(factory default): 28V
Unload Current(factory default): 50A |
QTY
1pcs |
Battery
|
Capacity:12V/200AH full sealed
Solar power lead-acid battery,
Service life:5-6 years ,
Size:522*238*218mm
Connect way : 2pcs in series connect to inverter |
QTY
2pcs |
Off-Grid inverter
|
TF1KW/24V pure sine wave inverter
110/120/220/230V output; With grid charger build-in
Protection against overload, short circuit, anti-reverse, discharger, etc. |
QTY
1pcs |
Guy cable tower
|
6m tower;
It help fasten wind generator in safe altitude.
Use steel material with rust prevention.
Easy to install |
QTY
1set |
Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling solar wind product and all kinds of pure sine wave inverter. As one of the leading factories in the green energy source field, Tanfon was initially established in the year of 1996. We are a professional manufacturer of green energy products including: Solar power system, wind power system, solar street light system, all kinds pure sine wave inverter(solar inverter, wind inverter, home UPS inverter ), controller, battery products., with advantage of possessing a professional R&D team to develop new wind energy turbine and inverter in concept of "Green Energy Leads Low Carbon Life".
Product sales to
(Pakistan, Nigeria, Canada, , Costa-Rica, Cyprus, Mocambique, Turkey, Malavi, Thiland, Philippines, Belgium, Indonesia, Czech Republic, Madagascar, Italy, Australia, Egypt, Tajikistan, Sri Lanka, Malaysia, France, USA, Guaemala, Switzerland, Israel ect)
We accept OEM and small trial orders, contacting with us for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual beneficial cooperation relationship with you.
Good quality, best price and better technical support and service, make Tanfon energy technology Co., Ltd as your most valuable cooperator in China.
