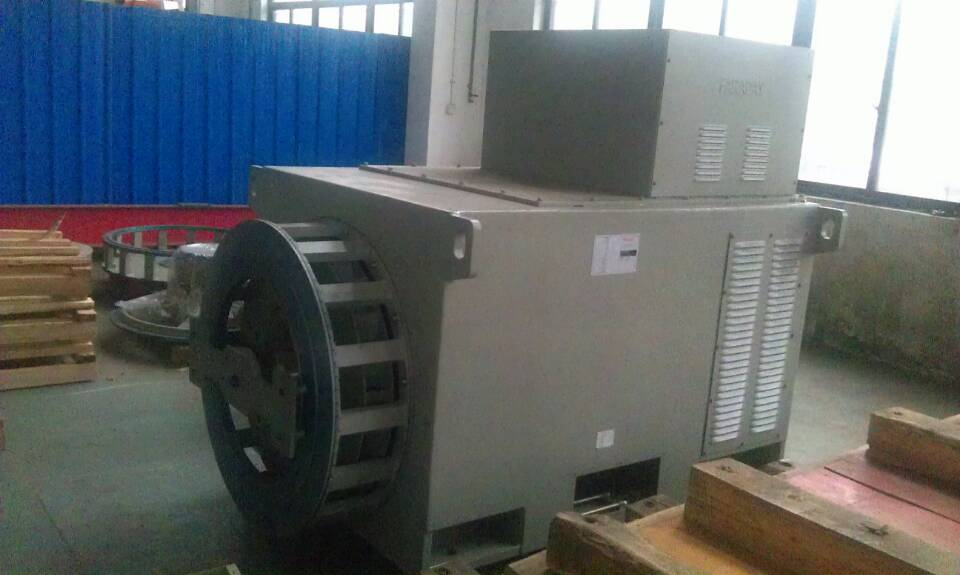

FDH series of high voltage brushless three-phase synchronous alternator is that FARADAY fully learned the design concept from U. S. Westinghouse electric, united Tsinghua University, Shanghai Electric division and a number of R&D institutions, together R&D self-owned intellectual property and many process and technology patents(patents number: 201210351489.8) of full series of high voltage alternators. This series of high voltage alternators can be associated with different major brands diesel engines at home and abroad to high voltage power station, also can be associated with other original power machine to special electrical power, apply to military, communication, industry, mining, post and other many kinds of industries, with the characteristics of reasonable structure, high efficiency, energy saving, stable and reliable working, attractive design, convenient using and maintenance and etc., and gain vigorous popularization and application in many key projects at home and abroad. Our company creates permanent value for high-end customer by excellent quality and perfect service, warmly service for the users.
Electric Performance:
1. Steady-state voltage regulation≤ 1.0%
2. Transient voltage regulation≤ +20%, -15%(60%IN, COSΦ ≤ 0.4delay);
3. Voltage steady range ≥ 10%.
4. Line voltage waveform distortion rate≤ 5%.
5. Strong nonlinear load (such as motor) capacity
6. Stably parallel operation and Grid-connected, reactive power distribution difference<10%.
Product features:
High-efficiency and energy-saving;
Low Inherent frequency, small vibration when running;
"F" insulation class, three anti (anti-corona, anti-salt spray, anti-mildew) insulation covering paint;
After tilting fan and Low Wind-resistance wind path;
Anti interference ability is outstanding;
Long service life of alternator
High voltage regulation precision
Three-phase voltage detection;
Generators are equipped with special thermometric resistances to monitor;
Temperature of major components of the generator to prevent generator fault operation;
Rotary rectifier module's maintenance and exchange is convenient;
Protection level of generators is IP23;
Comply with world leading alternators standard GB755, IEC60034-1.
FAQ:
1. Classification of generator:
(1) single phase or three phase;
(2) single bearing or double bearing;
(3) PMG is optional (except for FD1 series)
(4) Droop Kit and Anti-condensation heater are optional according to the operation environment.
(5) 2 pole/ 4 pole/ 6 pole/ 8 pole alternators are optional
2. How to choose AVR?
FD1/FD2 series SX460
FD3/FD4/FD5 series SX440
FD6 SX321 / PMG
FD7 SX341 / PMG
3. How to select generator?
-- working environment (less than 1000m above sea level & less than 40centigrade ambient temperature)
-- different country with different frequency (60HZ for Korea, Taiwan, Philippines, Saudi Arabia, North America and South America countries)
-- For sea side operating environment, anti-condensation heater and droop CT
-- Insulation class H generator
-- 2/3 pitch
-- silicon steel, 100% copper wire, VPI system with Elantas Epoxy insulation painting
4. What is FD and FDH?
--FD means Faraday low voltage alternator
--FDH means Faraday high voltage alternator
| Model | Rated power
(KW) | Rated Voltage(V) | Rated frequency(HZ) | Speed (rpm) |
| FDH560series | FDH5601S1(2)-4 | 1400 | 3300 | 50 | 1500 |
| FDH5601MS1(2)-4 | 1500 | 3300 | 50 | 1500 |
| FDH5601M1(2)-4 | 1600 | 3300 | 50 | 1500 |
| FDH5601LM1(2)-4 | 1800 | 3300 | 50 | 1500 |
| FDH5601L1(2)-4 | 2000 | 3300 | 50 | 1500 |
| FDH5602S1(2)-4 | 1500 | 4160 | 60 | 1800 |
| FDH5602MS1(2)-4 | 1600 | 4160 | 60 | 1800 |
| FDH5602M1(2)-4 | 1800 | 4160 | 60 | 1800 |
| FDH5602LM1(2)-4 | 2000 | 4160 | 60 | 1800 |
| FDH5602L1(2)-4 | 2200 | 4160 | 60 | 1800 |
| FDH5603S1(2)-4 | 1400 | 6300 | 50 | 1500 |
| FDH5603MS1(2)-4 | 1500 | 6300 | 50 | 1500 |
| FDH5603M1(2)-4 | 1600 | 6300 | 50 | 1500 |
| FDH5603LM1(2)-4 | 1800 | 6300 | 50 | 1500 |
| FDH5603L1(2)-4 | 2000 | 6300 | 50 | 1500 |
| FDH5604S1(2)-4 | 1200 | 10500 | 50 | 1500 |
| FDH5604MS1(2)-4 | 1400 | 10500 | 50 | 1500 |
| FDH5604M1(2)-4 | 1500 | 10500 | 50 | 1500 |
| FDH5604LM1(2)-4 | 1600 | 10500 | 50 | 1500 |
| FDH5604L1(2)-4 | 1800 | 10500 | 50 | 1500 |
| FDH5605S1(2)-4 | 1400 | 13800 | 60 | 1800 |
| FDH5605MS1(2)-4 | 1500 | 13800 | 60 | 1800 |
| FDH5605M1(2)-4 | 1600 | 13800 | 60 | 1800 |
| FDH5605LM1(2)-4 | 1800 | 13800 | 60 | 1800 |
| FDH5605L1(2)-4 | 2000 | 13800 | 60 | 1800 |
