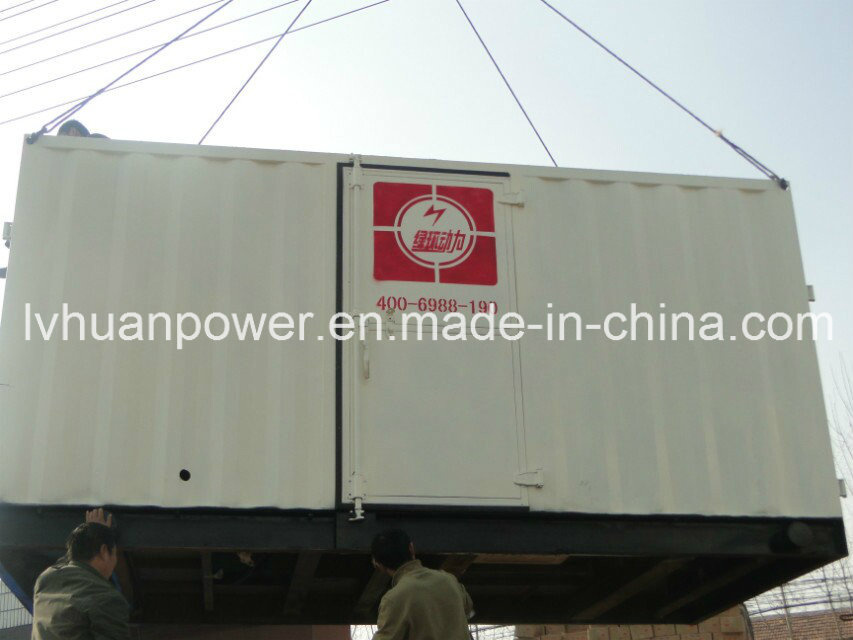

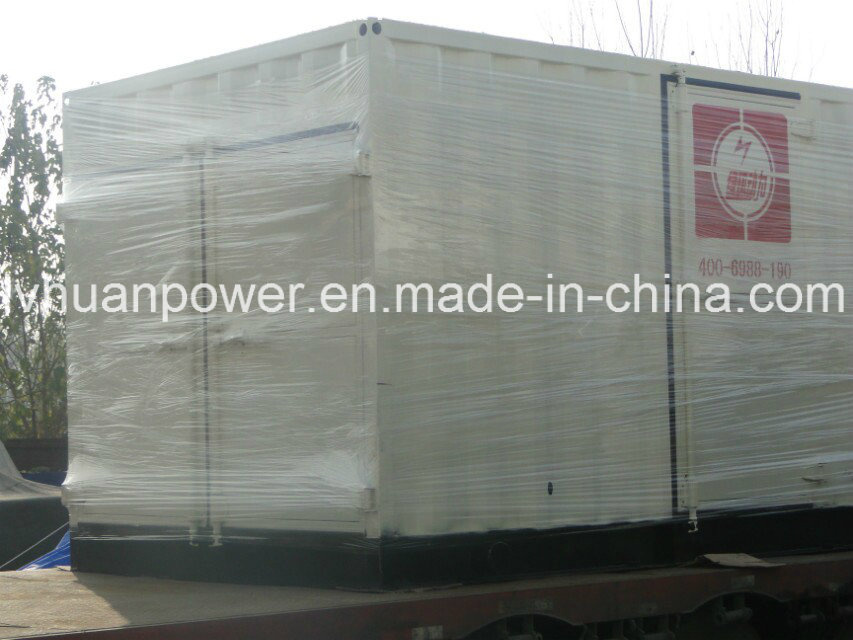

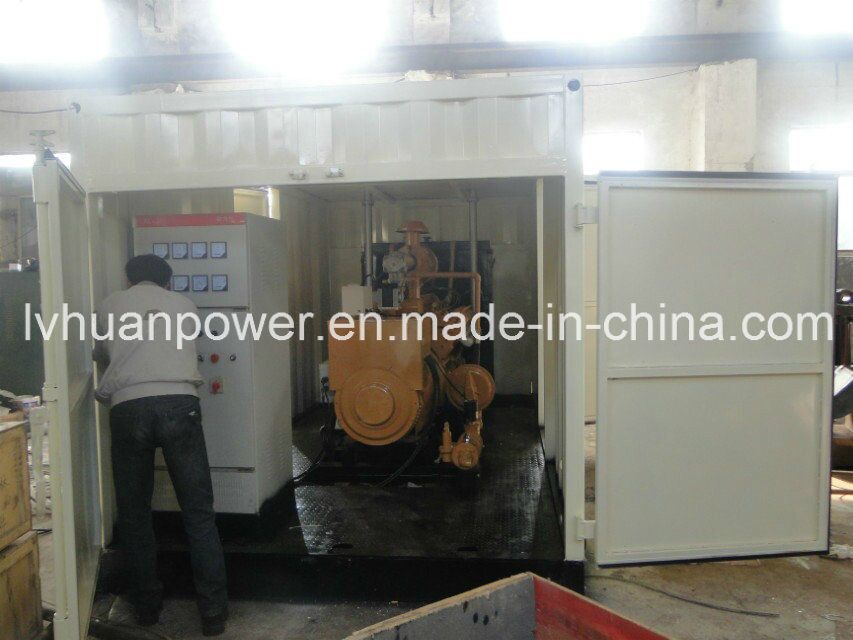

High Standard Container Silenced Type Water Cooling 200 Kw Coal Bed Gas Generator Set
| Price: |
US $ 43100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
mashgas(Coal bed gas) is a kind of burnable gas without any color, taste and smell. it will explode if the concentration ranges at 5%-16%, and if oxygen more than 12%, it will also explode when meets the naked light or temperature between 650 degrees and 750 degrees. explosive power will be biggest if concentration is 9.5%. It will not explode if concentration more than 16%. it was generated by coal or rotten plants and exist in two states: absorbing and dissociate. China is the third biggest mashgas reserves country. Generation with mashgas not only keep the mine safe also remit the situation of lacking power.
Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.
Requirements for mashgas:
Within 1m to the intake valve of gas generator set
Gas temperature<40ºC
The ratio of CH4 in natural gas >70%;
Pressure of natural gas: 3--20 kpa, rate of pressure change <1 kpa/min;
H2S≤200mg/Nm3;
if the CH4 covers less than 30%, the total content of CH4 and O2, should not be less than 28%, the content of O2 should not be less than 16%
Moisture content ≤40g/Nm3;
Impurity particle size ≤5µm, impurity content ≤30 mg/Nm3
Heat value≥4.2MJ/Nm3
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system:EGS gas controller of American WOODWARD Company.
scope of application:Biogas generator set is widely used in the many area where can generate biogas,like rubbish landfill,livestock excrement disposal,industrial organism disposal.
|
SHANDONG LVHUAN POWER EQUIPMENT CO., LTD. |
|
Address: High-Tech Industries Development Zone Jinan City, Shandong,China |
|
Website: www.lvhuandongli.com/en |
|
|
|
|
|
|
|
Parameter of Coal bed Gas Generator Set |
|
Model Number (Engine Type) |
LHCBG200 |
|
Brand Name |
LVHUAN |
|
Prime Power/Standby Power |
160KW/200KW |
|
Rated Speed |
1500/1800RPM |
|
Rated Frequency |
50/60Hz |
|
Rated Voltage |
400V/230V |
|
Phase |
AC 3-Phase, 4 wire |
|
Voltage Stability |
≤±2% |
|
Voltage transient |
≤±10% |
|
Voltage Stable time |
≤1s |
|
Heat consumption |
≤11mj/kw.h |
|
Lubricant consumption |
≤1.0g/kw.h |
|
Engine Capacity |
26.9L |
|
Cylinder Number |
12 |
|
Cylinder Bore |
138mm |
|
Stroke |
150mm |
|
Starting System |
DC 24V electric motor |
|
Cooling method |
water cooler |
|
Lubricant method |
Passive and flying lubricant |
|
Isolation class |
H |
|
Protection |
IP23 |
|
Alternator |
Chinese Stamford |
|
Power Factor |
0.8 lagging |
|
Exciting method |
brushless |
|
Colour |
your choice |
|
Certificates |
ISO 9001:2008, CE |
|
Warranty |
1 year or 1000 running hours which arrives first |
|
Type |
Open |
|
Control system |
Automatic alarm system |
|
Size |
3250x1450x2140mm |
|
Weight |
3200kg |
| Prod Model: |
LHCBG200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Exciting Method: |
Brushless |
| Gas Mixing Type: |
Outside |
| Gas Pressure: |
3-20 Kpa |
| Intake Mode: |
Natural Intake |
| Sparking Mode: |
Sparking Plug |
| Cooling Mode: |
Circulating Water Cooling |
| Overhaul Time: |
>30000h |
| Gas Source: |
Gas |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
