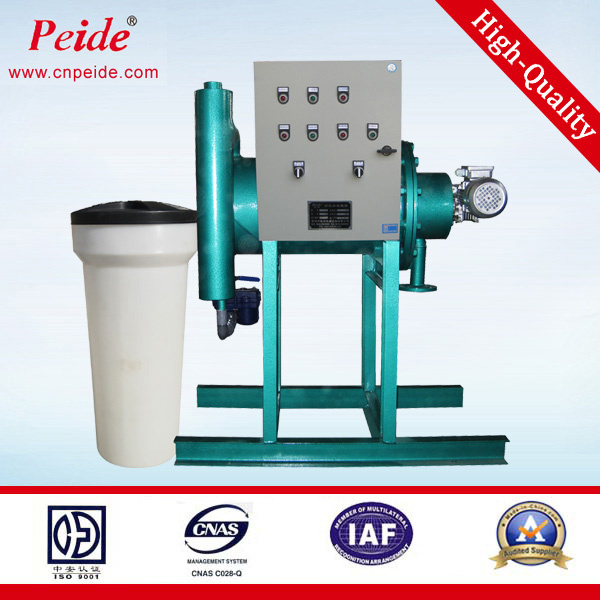

High Speed Pipe Bypass Circulating Water Treatment Equipment
1. Advantages of water treatment equipment
1. No secondary pollution
2. Reduce turbidity
2. Features
1 Just next to the stream processing system of water flow of 1%-5%, and ease of installation;
2 No need for chemicals, no secondary pollution, green;
3 To rust dirt, removal of yellow water;
4 Reduce turbidity;
5 Intelligent Automatic operation;
6 Is directly visible.
3. Core principles
1. Efficient pulse and low-voltage electric field can capture dirt ions, cleaning visible.
2. Electric field produce the crystallite which has function of prevent with 48hours.
3. Electrode with the function of activity and catalytic can produce reactive oxygen and other strong bactericidal factor which can kill bacterial and algae.
4. Active substances form Fe3O4 dense protective film to prevent corrosion on the inner wall of water pipe
5. The suspended will be divided efficiently and removed from the water treatment equipment. The water will become clean.
4. Technical parameters
Input power: ~ 380 v, 50 hz
Operating voltage: < 36 v
The range of the water temperature: 0 ~ 50 ° C
Head loss: 4 ~ 7 m
The range of the water quality: CaCO3
Total hardness: < 700 mg/l
Descaling anti-scaling efficiency: 99%
Sterilization rate: > 99%
Algae removal rate: > 97%
Legionella bacteria: Meet the national standards
Corrosion rate: Meet the national standards
Model |
Suitable pipe (mm) |
Boundary dimension |
Extension size |
Head loss (m) |
Max power (W) |
L (mm) |
W (mm) |
H (mm) |
Inlet and outlet (mm) |
Drain valve (mm) |
PDII-0100F |
80 |
1450 |
720 |
1260 |
25 |
25 |
6 |
90 |
PDII-0200F |
100 |
1450 |
720 |
1260 |
25 |
25 |
6 |
120 |
PDII-0300F |
150 |
1450 |
720 |
1260 |
25 |
25 |
6 |
160 |
PDII-0400F |
200 |
1450 |
720 |
1260 |
25 |
25 |
6 |
200 |
PDII-0500F |
250 |
1450 |
720 |
1260 |
25 |
25 |
6 |
300 |
PDII-0600F |
300 |
1450 |
720 |
1260 |
32 |
25 |
4 |
500 |
PDII-0700F |
350 |
1450 |
720 |
1260 |
32 |
25 |
7 |
600 |
PDII-0800F |
400 |
1475 |
740 |
1260 |
40 |
25 |
5 |
800 |
PDII-0900F |
450 |
1475 |
740 |
1260 |
40 |
25 |
7 |
900 |
PDII-1000F |
500 |
1500 |
750 |
1260 |
50 |
25 |
4.5 |
1100 |
PDII-1100F |
600 |
1500 |
750 |
1260 |
50 |
25 |
5 |
1300 |
PDII-1200F |
700 |
1750 |
770 |
1260 |
65 |
25 |
4 |
1500 |
PDII-1300F |
800 |
1750 |
770 |
1260 |
65 |
25 |
5 |
1800
|
WELCOME TO INQUIRE, YOU WILL GET MORE THAN THAT YOU SEE!
Started from 2004, Peide has been concentrating on research and production for water treatment equipment, our founder Mr. Wu has been supplying team work for over 7000 project, and draw lessons from A large number of engineering practice and accumulated rich experience in design and installation. Considering from better cost-efficiency, safety, credibility, we supplied our solutions to our customers, such as Cocacola China, Pepsi China, Siemens, Gates Hydraulic, HSBC, Shanghai Expo Venue, Danone, Kerry food, Kafu, Hair, Lenovo, GE, Benz, Toyota, Hyundai Motor etc.,
For decades, we have been water treatment equipment for food, beverage, pharmacy, hospital, precision electronics, chemical, electric power, surface cleaning, air-conditioner industries. Our customer is mainly in the USA, Japan, South Korea, France, Norway, England, India, Chile, Mexico and other 70 countries.
Mainly Products: UV water sterilizer & disinfection equipment, Water Filter equipment including Bag type filter, Sucking automatic type filter, Automatic brush type filter, Sand filter equipment, Electric scale equipment, Recycling water treatment equipment, Ion stick etc., .
Certificate: ISO: 9001: 2008, CE, China Famous Brand
Sales: 20M RMB/year
Peide is always looking for new ways to increase the value of the products and services we offer to our customers. Our goal is to creat class quality, class service, class management and class environment. Try to make our sky bluer, our ground greener our water cleaner.
