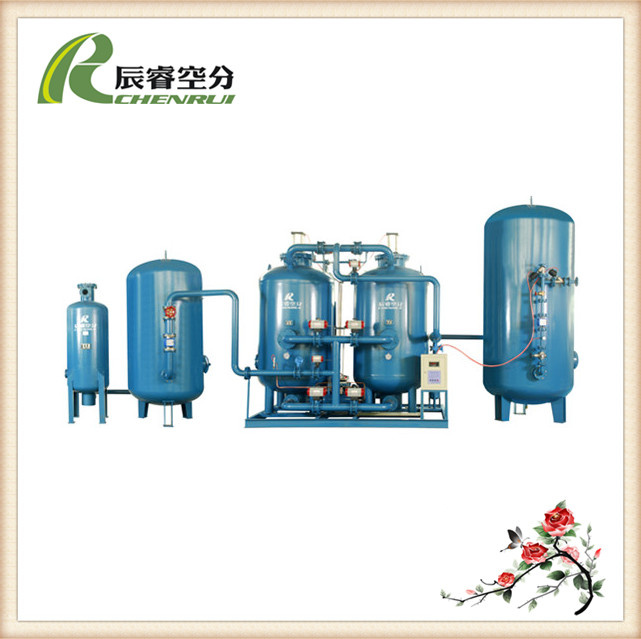

High Quality Nitrogen Generator & Inflator Machine

High Quality Nitrogen Generator & Inflator Machine
Price: US $ 1000/Set
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T


1. Specification
     -Purity:97-99.999%
    -Capacity:5-3000Nm3/h
    -Nitrogen pressure: 0.1-0.8MPa
    -OEM Services
    -PSA Nitrogen Generator

2. Applications
    - Food packaging (cheese, salami, coffee, dried fruit, herbs, fresh pasta, ready meals, sandwiches, etc. ..)
    - Bottling wine, oil, water, vinegar
    - Fruit and vegetable storage and packing material
    - Industry
    - Medical
    - Chemistry
    .
    .
    .
 3.Principle of Operation
     The oxygen and nitrogen generators are constructed according to the principle of operation P.S.A. (Pressure Swing Adsorption) and are composed by a minimum of two absorbers filled up with molecular sieve.The absorbers are crossed alternatively by the compressed air (previously purified in order to eliminate oil, humidity and powders) and produce nitrogen or oxygen. While a container, crossed by the compressed air, produces gas, the other regenerates itself losing to pressure atmosphere the gases previously adsorbed. The process comes repeated in cyclical way. The generators are managed by a PLC.

4.Technical Features
     - It is an advanced technology with less investment.
    - The quality is reliable and both the N2 purity and quantity are stable.
    -The unit is supplied in a skid-mounted manner, which can be transported and installed easily.
    - It is full automatic control and no need for operators, easy to start-up and shutdown, simplified and convenient maintenance.

5. Equipment Installation Condition

Item

Description

Remark

Power

220V/50Hz

100W

Power for Nitrogen Generator

220V/50Hz

60W

  Power for Heatless         Air Dryer

Environment Temperature

≤38ºC (good ventilation)

/

Gas(PSA gas consumption)


Capacity

  ≥ ___Nm3/min
  (20ºC,101.325kPa)

Air Compressor Output Requirements

Pressure

              ≥ 0.8MPa

Temperature

              ≤ 50 ºC

Oil Content

              ≤ 3 PPm

Dust Size

              ≤ 5 μm



Our Services



After-sales service department
Our service department is formed by a skilled team of engineers. There are more than 15 of them, whose average age is about 35. We always adhere to the general principle of "good faith, high quality, innovation, and development ", and follow the idea of giving customers the maximum of satisfaction, which laid a good foundation to ensure that the service quality. We obtained loads of compliments for we not only guarantee the service quality, but also the benefits of customers.

 After Sales Service Commitment
Free warranty for the equipments during the promised period
1. The nitrogen generator,1 year warranty, maintenance responding time is less than eight hours.
2. Ancillary equipment ,1 year warranty, maintance responding time is less than 8 hours.
3. Lifelong maintance service in a timely manner, the responding time is less than 8 hours.
4.Provide 24-hour hotline service. 0086-18757180256
5.Return visit every six months (callback or on the spot).
6. Supply accessories in a timely manner, the delivery time is generally 1-7 days.
7.Free repair at the expiry time of warranty

FAQ

How to Get a Promot Order
When you kind sending the inquire to us, please kindly send it with below information


                   Technical Information
           Your Kind Requirement
                     Capacity                   _________Nm³/h
                     Purity                   _________%
                     Outlet Pressure                   _________Mpa or Bar
                     Power                    ________V/HZ
                 Nitrogen Application

 Thank you!

Prod Model: nitrogen generator
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gas Source: Gas
Hangzhou Chenrui Air Separator Installation Manufacture Co., Ltd. Is a professional manufacturer producing series of air separation units: PSA nitrogen generators, PSA oxygen generators, VPSA oxygen generators, compressed air dryers, compressed air filters etc.

We have been making series of air separation units for nearly 20 years. With the support of a perfect management system and advanced manufacturing tools, we make constant technological improvements. We have built long-term good cooperation with many design and research institutes. Our air separation units have better and better performance.

Our company has passed ISO9001: 2008 certification. We have won many honors. The strength of our company is constantly growing.

We warmly welcome all of our customers to build win-win cooperation with us.
