Home Generator Products High Quality Fast Delivery 400kw/500kVA Soundproof Generator (GDC500*S)

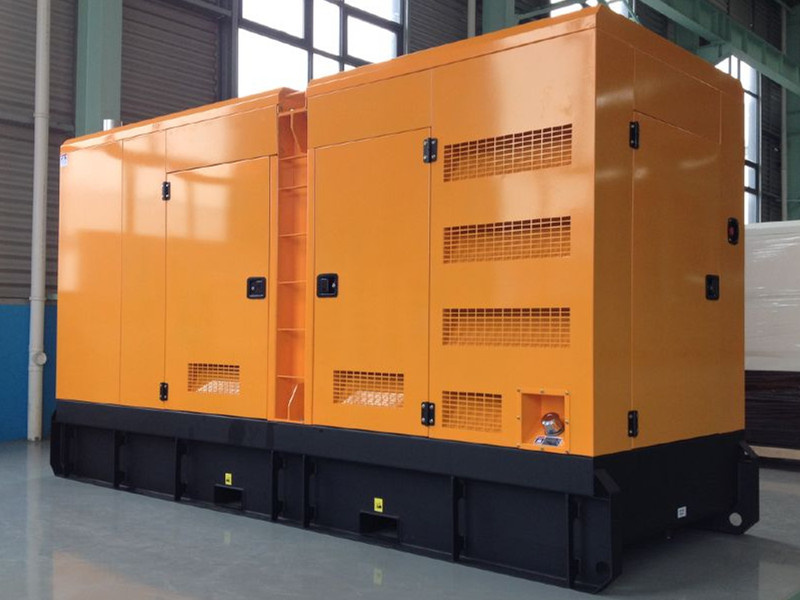

High Quality Fast Delivery 400kw/500kVA Soundproof Generator (GDC500*S)

High Quality Fast Delivery 400kw/500kVA Soundproof Generator (GDC500*S)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
High quality fast delivery 400kw/500kVA Soundproof Generator (GDC500*S)

1) Power range: 50kVA/40KW
2) Brushless Synchronous A. C. Alternator,
3) Stamford Type of Electric Generator
4) Three Phase optional, IP23, Class H

Scope of Supply:
1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternator
Scope of supply

Engine specification
1.20kw-1000kw Cummins engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption

Alternator: Stamford
Option with: Marathon, Leroy somer,
A) three phase brushless generator, self-excited, 4-pole, single bearing
B) AVR self-regulated, voltage regulation rate ≤ ± 1%
C) IP23 protection grade
D) Class H insulation
E) Radio interference restraining accords with stipulation of VDE0875-N and ISO8528
F) Moistureproof, sand-proof, dustproof, salt-proof and vibration-proof

Control system:
1. Automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button

Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.

Generator Set Model CodeGDC500*S
AlternatorAlternator Model CodeHCI544
Alternator BrandStamford
Frequency(Hz)50Hz
Rated Power(KW/KVA)400KW/500KVA
Standby Power(KW/KVA)440KW/550KVA
Rated Voltage(V)400/380V
Rated Current(A)72A
Steady Voltage Regulation≤ 1.0%
Transient Voltage Regulation≤ +20%, -15% (60% In, cosφ =0.4 lag)
Adjustable Voltage Range95-105% Un
Waveform Distortion at No-load≤ 5% (Line Voltage)
Insulation ClassH
Power Factor (cosφ )0.8
EngineEngine Model CodeKTA19-G3A
Engine BrandCummins
Speed(RPM)1500
Bore X Stroke (mm)102x120
Displacement (L)3.9
Max Water Temperature100C
100%Load Fuel Consumption (g/kw. h)209
Governor TypeCummins Unique Pump with Electrical Fuel Control System (EFC)
Exhaust Back Pressure10kPa (Maximum)
Lubrication Oil(L)11
Generator SetStart MethodElectric Start
Battery Voltage(V)24
Output3-Phase/4-Wire
Standard Altitude≤ 1300mm, if above, 4% of rated power will descend per 300 meter
Ambient Temperature≤ 40C, Well Ventilation, If above, 2% of rated power will descend per 11C
Silent type Size(MM)4300*1430*2175
Packing MaterialNude
Net Weight(kg)open type4306
ATS& AMF: module functions1. Low oil pressure shutdown.
2. High water temperature shutdown.
3. Over speed shut down.
4. Under voltage tripping.
Contact: Ms Vicki Yuan
Tel: 86 514 80915716
Prod Model: GDC500*S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire: 100% Pure Copper Wire
Alternator: Stamford, Marathon, Engga
Engine: Cummins, Mtu, Deutz Is Optional
Controller: Dse, Smartgen Is Optional
Function: ATS/Amf, Open/Soundproof Is Optional
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Wind Cooling
Output Type: AC Three Phase
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.

Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.

GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.

GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.

Warmly welcome to GODLIKE.
