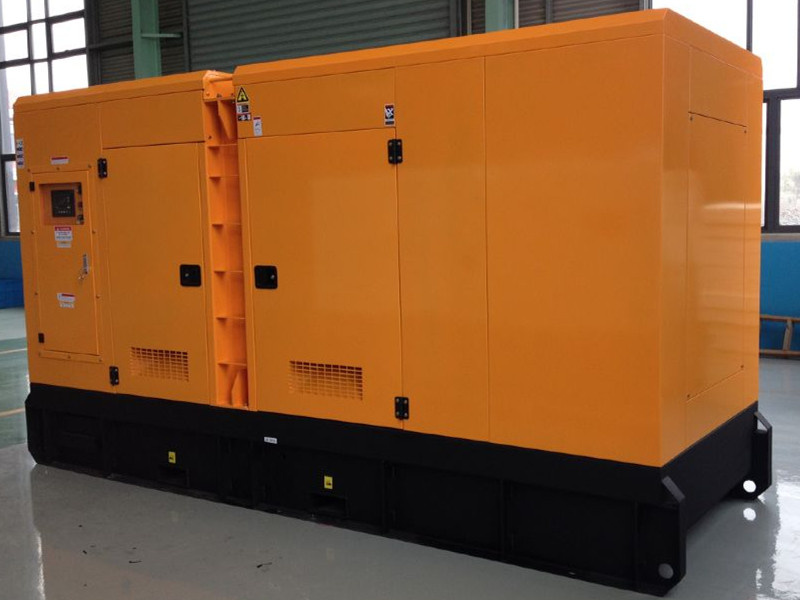

High quality afdordable price Cummins Silent 400kW/500kVA Generator (KTA19-G4) (GDC500*S)1.The genset canopy can be designed by customers demand free of charge.
2.Noise level can be designed by customer demand, standard noise level is 70-73DB at 7m. Super silent is 60-65DB at7m.
3. Canopy color can be painted free of charge by customer demand. It is high quality paint.
4.All connection components and door lock are stainless steel.
5. We added oil filling inlet with lock
6. The oil box is separate madeand then welded to the base frame, not by simple welding on the base frame. It is to make sure there is no oil leakage
7. The base frame is with forklift mouthwhich is easy to load and discharge
8. For Logo, we can paint customer's logo when the order is more than 5sets.
9. For technical specification or question, we can support you by our strong technical team.
DIESEL GENERATOR SET | Diesel GenSet Model | GDC500*S |
Prime power (KW/KVA) | 400/500 |
Standby power (KW/KVA) | 440/550 |
Rated voltage(V) | 230/400 |
Rated current (A) | 720 |
Frequency(Hz) | 50 |
Rated Rotary Speed (RPM) | 1500 |
Power factor | 0.8 |
Power supply mode | 3 phase,4 wire |
Starting method | 24V DC |
ENGINE | Diesel Engine | Cummins |
Model | KTA19-G4 |
Engine prime power (KW/KVA) | 448/560 |
Engine standby power(KW/KVA) | 504/630 |
Cylinder Qty. | 6 |
Bore(mm) *Stroke (mm) | 159*159 |
Compression rate | 14.5:1 |
Cooling liquid volume (L) | 91 |
Displacement(L) | 18.9 |
Lubricant capacity (L) | 50 |
Cooling method | Water cooled |
Intake method | Turbocharged&inter-cooled |
ALTERNATOR | Alternator Features: 1. Kaijie,ENGGA,Stamford, Leroy Somer, Marathon 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof |

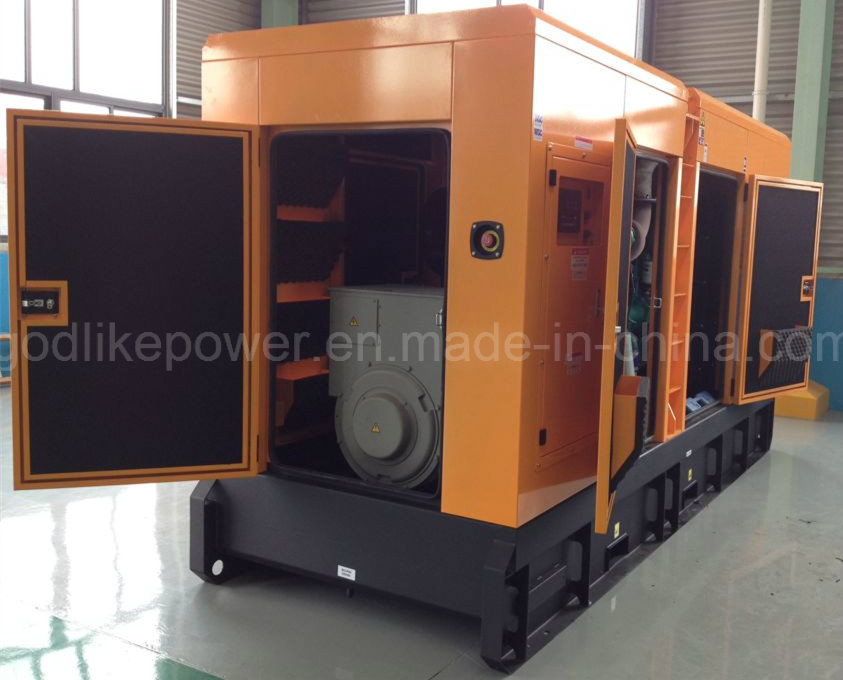

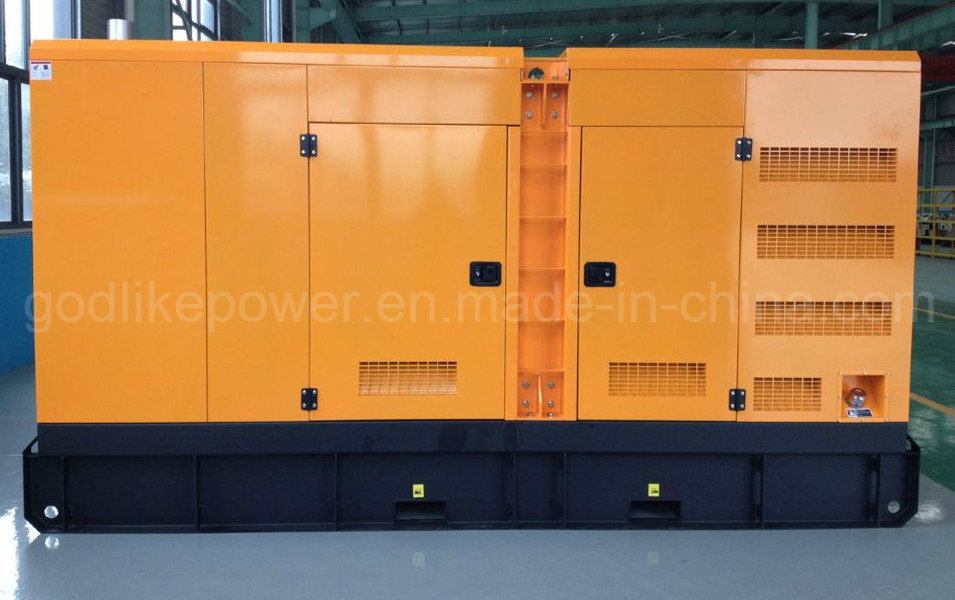

Generator photos:

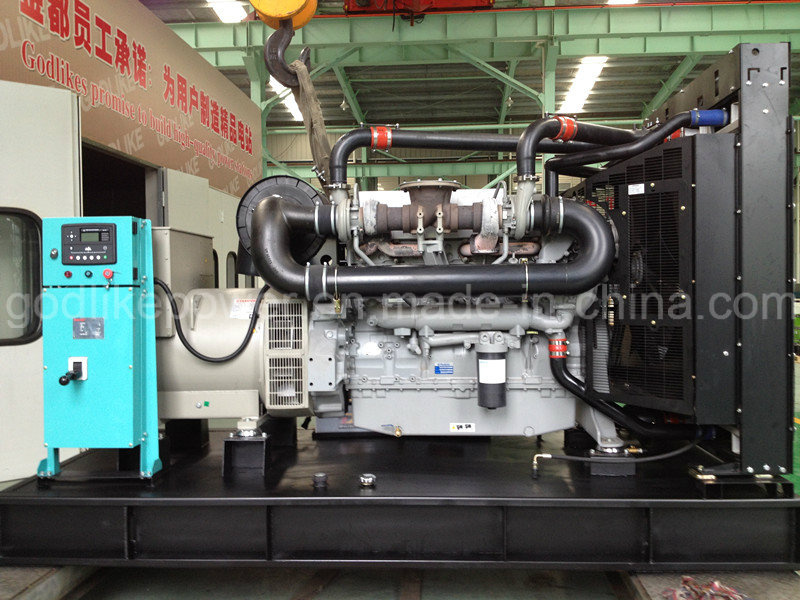

Open type generator
Contact: Ms Vicki Yuan
Mob:+86 159 5258 5329
Tel:+86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
