| Price: | US $ 280/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Money Gram |

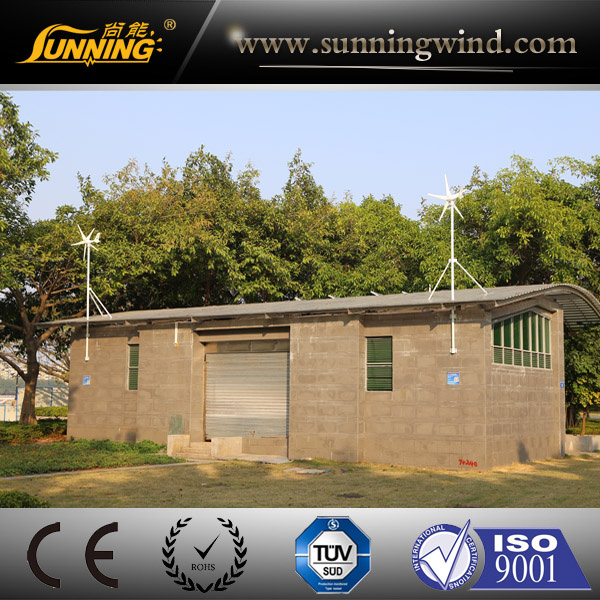

High Quality 300W Wind Power Generator For House
At present,some remote area could not get the government power normally, and bring many troubles to government. According the situation, our company could supply home wind solar hybrid system for home, it could make good use of the wind and sunshine, which are clean, normal and recycling. We could supply different system for different requirement of family use.
Home wind solar hybrid power system is combined with wind turbine, solar panel, controller, inverter, cables and some other components. In dark or rainy, the wind turbine could generate the power, and the solar panel could generate in sunny, when there is wind and sunshine, both of them could generate power, it will much better than use one of them only.
Mini small wind generator characteristics:
1. Low start-up wind speed
Low wind speed series small wind turbines generate more than 30% effective power than the same rotor diameter wind turbine annually.
2. High-efficient generator system
Three-phase permanent magnet synchronous small wind generator, more than 10% of the efficiency of ultra-GB, starting resistance, only be 1/3 of the GB limit, motor insulation rating class h insulation.
3. PWM power management system
Built-in a new intelligent controller, monitoring the wind turbines operation in real-time PWM(maximum power point tracking) charge.
4. Noise reduction innovative technology
Start and product electricity at the 1.5m/s, noise only at dB at 13m/s/.
5. Perfect wind wheel system
The wind turbine generator wheel are made of a low temperature resistance, aging high strength compound material, can cope with a variety of complex wind conditions, charge wind energy into electrical energy efficiently and sustainably...
6. Unique design of the rudder
Small wind turbine generator rudders are ale to respond to the wind speed and wind direction flexibly, enhancing the efficiency of power generation.

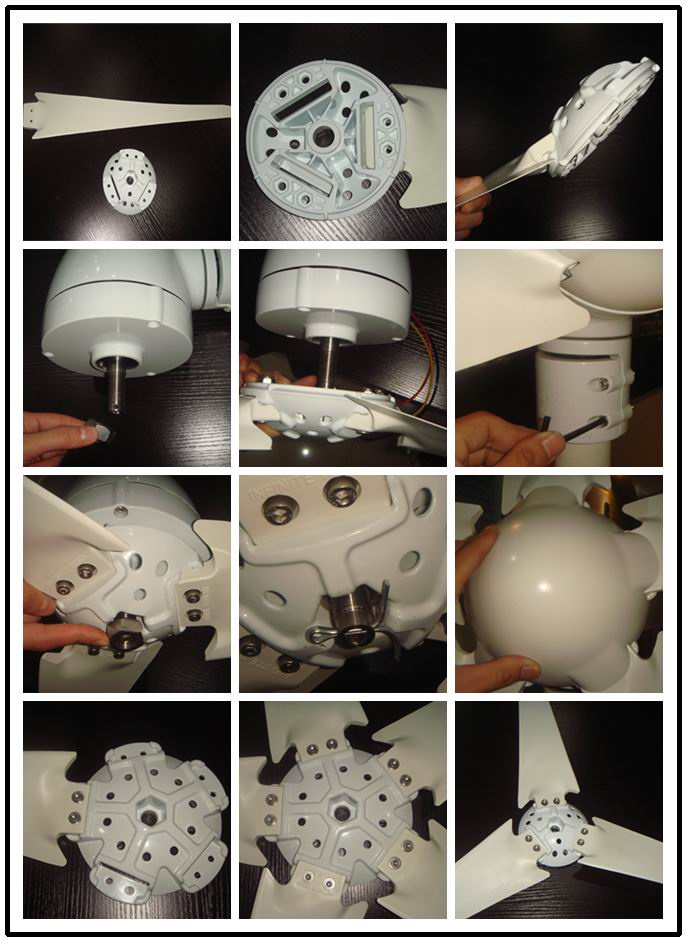

For fome MINI wind turbine details

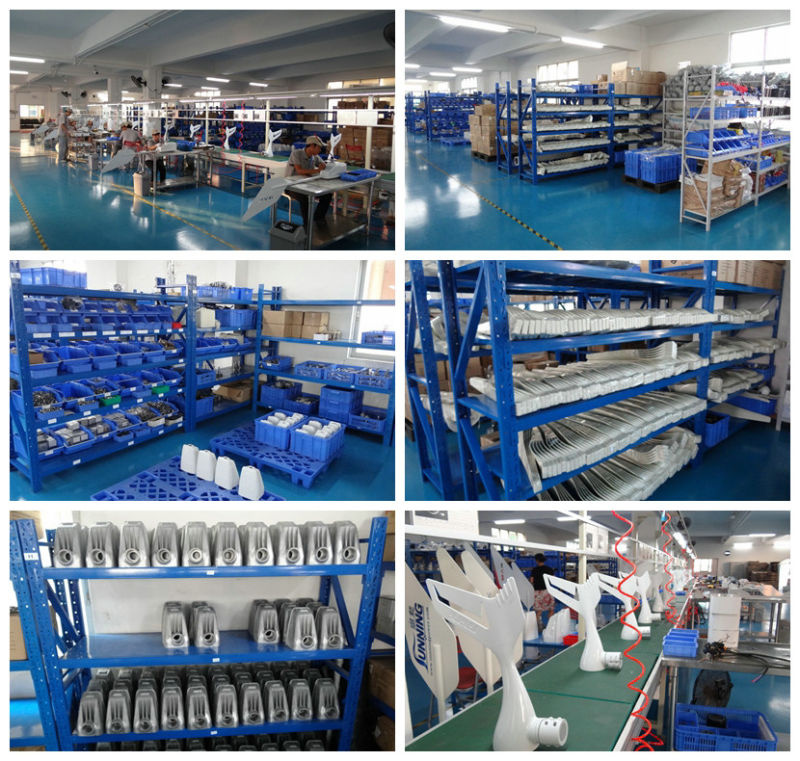

Our factory
www.sunningwind.com
| Rated Capacity | 300 watts at 28 mph (12.5 m/s) |
| Max Capacity | 350watts |
| Rotor Diameter | 1.21m |
| Weight | 7.1 kg |
| Shipping Dimensions | 770x 410x 200 mm (9kg) |
| Mount | 1.5 in schedule 40 1.9 in (48 mm) OD pipe |
| Start-Up Wind Speed | 2.0 ( m/s) |
| Cut-In Wind Speed | 2.5(m. s) |
| Voltage | 12, 24 VDC |
| Turbine Controller | Microprocessor-based smart internal regulator with Maximum Power Point Tracking |
| Body | Cast aluminum |
| Blades | 5 PC Nylon Fiber |
| Overspeed Protection | Electronic torque control |
| Kilowatt Hours per Month | 30 KWh/mo at 3.2 m/s |
| Survival Wind Speed | 35 m/s |
| Warranty | 3 year limited warranty |
| Prod Model: | MINI 5 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Capacity: | 300W |
| Rotor Diameter: | 1.21 M |
| Weight: | 7.1 Kg |
| Start-up Wind Speed: | 2.0 M/S |
| Cut-in Wind Speed: | 2.5 M/S |
| Voltage: | 12, 24V DC |
| Body: | Cast Aluminum |
| Blades: | 5 PC Nylon Fiber |
| Overspeed Protection: | Electronic Torque Control |
| Kilowatt Hours Per Month: | 32kwh/Mo at 3.2 M/S |
| Rotating Shaft: | Horizontal |
| Stress Way Of Blade: | Resistance |
| Number Of Blade: | 5 |
