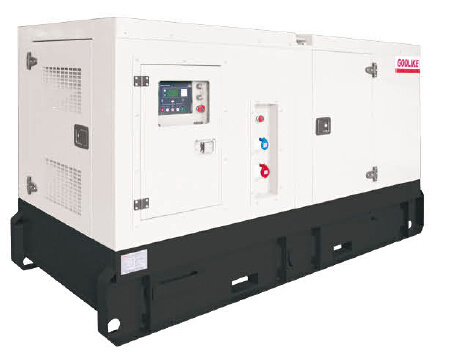

High Quality 20-1500kVA Diesel Generator Manufacturer

High quality 20-1500kva diesel generator manufacturer

Scope of Supply:
1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternator
Scope of supply

Engine specification
1.20kw-1000kw CUMMINS engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption

Alternator: Stamford
Option with: Marathon, Leroysomer,
A) three phase brushless generator, self-excited, 4-pole, single bearing
B) AVR self-regulated, voltage regulation rate ≤ ± 1%
C) IP23 protection grade
D) Class H insulation
E) Radio interference restraining accords with stipulation of VDE0875-N and ISO8528
F) Moistureproof, sand-proof, dustproof, salt-proof and vibration-proof

Control system:
1. Automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button


Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices


Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.

Genset data
Manufacturer		GODLIKE		Speed		1500rpm
Original		China		Rated voltage		400v/230v
Model		GDC60*S		Rated current		360A
Prime power		60kw/75kva		Rated frequency		50Hz
Standy power		66kw/83kva		Factor		0.8
Cooling		Water cooled
Engine data
Manufacturer		CUMMINS		Cooling way:		water cooling
Original		China		Speed governing method		electronic
Model		6BT5.9-G1		Starting	DC24V
Governor type		Mechanical		Type	Naturally Aspirated
Speed		1500rpm
Prime power(kw)		163
Standby power(kw)		180		Displacement(L)		3.9
Cylinder		6		Compression Ratio		17.3:1
Fuel Consumption (lir/hr)		13.8		Bore × Stroke(mm)		102*120
Alternator data
Manufacturer		GODLIKE		Leads number		12
Original		Jiangdu,Yangzhou,China		Voltage accuracy		± 1%
Model		JDG184E		Frequency		50Hz
Prime power		60kw/75kva		Insulation class		H
Power factor		0.8		Protection rate		IP23
Voltage(V)		230/400		Excitation system		Brushless,AVR
Bearing number		Single
