OEM factory in Guangzhou
Basic Info.

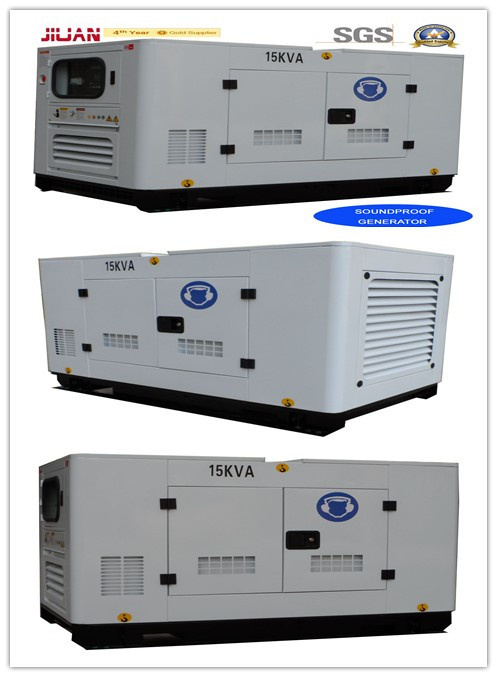

Model No.: CDP15kVA
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
Output Type: AC Three Phase
Generator: Super Silent
Generator Color: Anycolor Is Available
Export Markets: Global
Additional Info.
Trademark: JIUAN Power
Packing: By Iron Frame (Standard Export Packing)
Standard: CE/ISO
Origin: Guangzhou China
HS Code: 85021100
Production Capacity: 200sets/Month
Product Description
JIUAN Diesel Generator Set Advantage:
50Hz@1500rpm or 60Hz@1800rpm all are available
AVR delivers non fluctuating power
Panel type digital control panel
12 Volt / 24 Volt electric starter ensures easy starting
Low oil pressure shut down system
Low fuel cut out protection
Low water cut out engine protection
Enclosed structure ensures quieter operation
Alternator (Dynamo) excitation mode brushless self excitation
Three-phase output meets differing requirements
Four Cylinder, four stroke, water cooled diesel engine
8 hours running @ full load on a single tank of fuel
Dual access doors for easy maintenance
Optional automatic or manual transfer switches available
ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
Noise Level (65-70dBA @ 7m)
All ratings are at sea level
After-sales Service:
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611
Contact Sales Manager
24 hours after-sales contact number: 0086 15817087202
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. Perkins (UK) 8kVA - 2000kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 40kVA
7. Weichai (China) 8kVA - 150kVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
|
MODEL |
CD-P12KW/15KVA |
|
Powered by PERKINS Engine |
|
Standby Power (50HZ) |
12KW/15KVA |
|
Prime Power (50HZ) |
11KW/14KVA |
|
Engine Model |
Original Uk Perkins 403D-15G |
|
Engine Prime Power (50HZ) |
12.2KW |
|
Engine Standby Power (50HZ) |
13.5KW |
|
Speed |
1500rpm |
|
Cylinders |
3L |
|
Bore x Stroke |
84 x 90 mm |
|
Fuel Consumption(100% loading) |
3.6 L/H |
|
Displacement (L) |
1.496 |
|
Compression Ratio |
22.5:1 |
|
Cooling Method |
Water - cooled |
|
Starting Method |
12V DC electrical start |
|
Alternator Model |
LEADTECH OR STAMFORD 164C |
|
Voltage |
220V/380V |
|
Electric Current |
22A |
|
Power Factor |
0.8 |
|
Phase |
3-phases |
|
Brush/Brushless |
Brushless |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
|
G.W |
600 KGS |
|
Overall Size |
1680x900x1100 MM SILENT
2100*900*1200MM SUPER SILENT |
|
20FT |
12 PCS |
|
OPTIONAL |
ATS(auto transfer switch) |
|
|
Auto Battery Charger |
|
|
AMF (auto mains failure) |
|
|
SUPER SILENT |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
