Home Generator Products High-Purity Nitrogen Machine

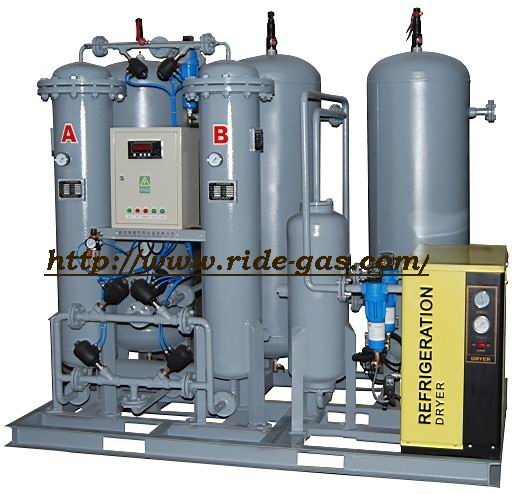

High-Purity Nitrogen Machine

High-Purity Nitrogen Machine
Price: US $ 20000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T,D/P
Nitrogen generaotr-chemical
Working principles:

RDN series nitrogen generators are based on the PSA principles using high quality carbon sieve as adsorbent to get nitrogen from the air in certain pressure. The compressed air is pressed and Decompressed desorption in the absorber adsorption after purifying and drying to the aerodynamics effect, Oxygen in the carbon molecular sieve pore diffuse more quickly than nitrogen, oxygen is adsorbed by carbon molecular sieve priority, nitrogen enrichment in gas phase to form nitrogen products. And then after decompression to atmospheric pressure, sorbents achieve regeneration by adsorption and desorption of oxygen and other impurities.
Usually there are two adsorption Towers in the system, one is used to adsorb and produce nitrogen the other is used to adsorb and regenerate. Through the PLC controller controls the pneumatic valve open and close to keep alternating between the two towers, then we can achieve the purpose of getting continuous production of high-quality nitrogen.
The whole system consists of the following parts: Compressed air components, air tanks, oxygen and nitrogen separator, nitrogen buffer tank.
Nitrogen generaotr-chemical

2. Technical index:

Nitrogen capacity: 5-3000N3/h
Purity: 95%-99.9995%
Outlet pressure: 0.3-0.8Mpa (adjustable)

Nitrogen generaotr-chemical

3. Features:

3.1 quick and convenient start and stop

3.2 low investment and energy consumption

3.3 high automation

3.4 simple operation and maintenance

3.5 short installation period and small ground treatment workload

4. Package: Wooden case

5. Delivery time: Within 45 days
Compressed air gage pressure 0.85Mpa intake pressure)
Nitrogen  production   5-2000Nm3/h
Nitrogen  purity    96%-99.995%
Outlet pressure 0.3Mpa (can control)
Dew point   ≤ -45° C
Effective gas consumption 2.8-32.5Nm3/min

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Industry
Technology: Psa
Place Of Origin: China
Raw Material: Air
Model Number: Rdn5-3000nm3/H
Usage: Nitrogen
Production Capacity: 200 Sets Every Year
Warranty: One Year Free Maintenance
Nitrogen Purity: 95%-99.9995%
Characteristic: Low Cost and Simple Operation
Gas Source: Gas
Ride has been widely accepted by the markets and customers after several years' development in the gas equipment industry. He was enrolled as Fuyang gas equipment co. Ltd in Zhejiang province in 2007. And he is such an enterprise that set out the research and development, design, manufacturing and service of gas equipment for the all-round development. He was audited by the France Veritas and obtained the ISO 9001: 2008 quality management system certification in March 2009. The company lies in the beautiful Fuchun River and Hangzhou Fu yang hi-tech area. Also it is between the Hangzhou West Lake and National scenic area--Thousand Island Lake, Yaolin Wonderland. So the economy develops well and the traffic is very convenient.

Ride specializes in the air separation plant, compressor and air supply system development. We aim to provide world-class quality of gas equipment. The PSA device and Oxygen equipment we have produced are widely used in metal heat, food, pharmaceutical, chemical, electronics, new materials, glass, petroleum, aerospace, etc.

As a rich experience and technology manufacturer, Ride's sales engineers can offer the different selections about the different types according to the different gas requirements and conditions for customers. They can analyze specific conditions and make scientific, reliable and economical recommended service. Then skillful production personnel and technical staff combines advanced technology and flawless manufacturing fully reflected in every product; The perfect after-sales service system and customer service philosophy ensures that each device can run in optimal working condition.
