LNitrogen Generator Principle Of Operation

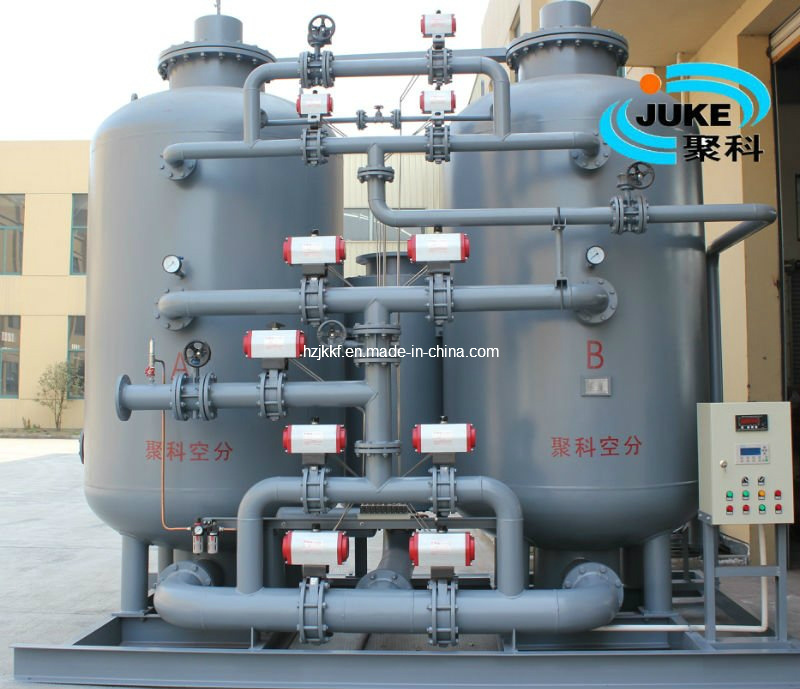

LKSN PSA nitrogen generating equipment use the high quality carbon molecular sieve as adsorbent, and utilize PSA principle, acquiring nitrogen gas from compressed air directly.
L1. Under the pressure of certain. Because of kinetic effect, the spread rate of oxygen and nitrogen on carbon molecular sieve has big differenceses. As a great deal of oxygen molecules is adsorbed by carbon molecular sieve, nitrogen molecules enrichs at gaseous phase, so nitrogen and oxygen get separated.
L2. As the adsorption capacity of carbon molecular sieve on oxygen changed with the pressure, different pressures have obvious difference, when reduce pressure, it can desorb the oxygen molecule adsorption on carbon molecular sieve, making carbon molecular sieve regeneration, like this make it recycling use.
L3. Choose two adsorption tower processes, one tower adsorption then produce nitrogen, the other desorption regeneration, the two circulation alternate, continuously output high quality of nitrogen.
LTechnical characteristics
L1. Unique molecular sieve protective measures so as to lengthen the service life of carbon molecular sieve.
L2. Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out, it can not cause of molecular sieve pulverization phenomenon. Equipped with the limit settlement alarm system, when it reach the floor level of journey, the equipment will sound and light alarm by itself.
L3. Configureed DCS remote control system interface, it can monitor the system operate condition through the computer.
L4. Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen.
L5. Perfect process design and excellent energy conservation characteristics reduce the cost of gas.
L6. Reasonable structure design make the transportation, sling and installation very convenient.
L7. Selecting the safe and reliable control components, so the equipment can run stable and reliable, it also has various fault alarm.
L8. It operates easily, runs stably, and has a high degree of automation, can realize no one operates.
|
Model |
Output |
Effective gas consumption |
Air purification system |
Import and export caliber(mm) |
Note |
|
KSN— 5A |
5 |
0.4 |
KJ— 0.5 |
DN15 |
DN15 |
Air purification system and PSA nitrogen generator entirety installation |
|
KSN— 10A |
10 |
0.7 |
KJ— 1 |
DN25 |
DN25 |
|
KSN— 20A |
20 |
1.3 |
KJ— 2 |
DN25 |
DN25 |
|
KSN— 30A |
30 |
2 |
KJ— 2 |
DN25 |
DN25 |
|
KSN— 40A |
40 |
2.55 |
KJ— 3 |
DN32 |
DN25 |
|
KSN— 60A |
60 |
4 |
KJ— 6 |
DN40 |
DN32 |
Air purification system and PSA nitrogen generator |
|
KSN— 80A |
80 |
5.2 |
KJ— 6 |
DN40 |
DN40 |
Segregate installation |
|
KSN— 100A |
100 |
6.7 |
KJ— 10 |
DN50 |
DN40 |
|
|
KSN— 120A |
120 |
7.9 |
KJ— 10 |
DN50 |
DN40 |
|
|
KSN— 150A |
150 |
10 |
KJ— 10 |
DN50 |
DN40 |
|
|
KSN— 200A |
200 |
13.5 |
KJ— 20 |
DN65 |
DN50 |
|
|
KSN— 300A |
300 |
20 |
KJ— 20 |
DN65 |
DN50 |
|
|
KSN— 400A |
400 |
26 |
KJ— 30 |
DN80 |
DN65 |
|
|
KSN— 600A |
600 |
40 |
KJ— 40 |
DN100 |
DN65 |
|
|
KSN— 800A |
800 |
51 |
KJ— 50 |
DN125 |
DN65 |
|
|
KSN— 1000A |
1000 |
63 |
KJ— 70 |
DN125 |
DN65 |
PSA generator |
|
KSN— 1200A |
1200 |
75 |
KJ— 80 |
DN150 |
DN80 |
field installation |
|
KSN— 1500A |
1500 |
94 |
KJ— 100 |
DN150 |
DN80 |
|
Hangzhou Juke Air Separator Installation Manufacture Co., Ltd. is a high-tech enterprise established in 2008. We are specialized in the research, development and manufacture of nitrogen generators, oxygen generators, compressed air dryers, and so on. Our products are widely applied to petroleum chemical, metallurgical coal, electronic electricity and biomedical industries.
We have a professional and experienced technical development team which is willing to design and manufacture products with both standard and customized specifications. All of our products must be 100% tested to ensure their functionality, reliability, security and durability before shipment.
During the past few years, our priority has always been "customer services and customer satisfaction". We have done a lot to raise our quality level and have striven to establish a sound quality management and guarantee system. Furthermore, our company has attained ISO9001: 2008 Quality Management System certificate.
By virtue of excellent energy saving technologies and unremitting efforts of Juke people, we have reasons to believe that Juke will become the technology leader in this industry. Quality is our life, prestige is our basis and service is our cornerstone! Juke is willing to work hand in hand with friends from all circles to create a bright future.
