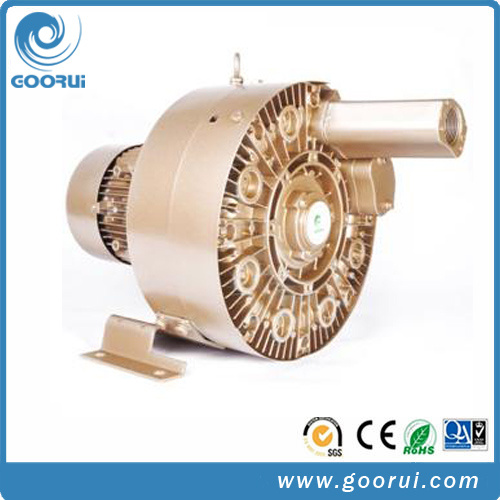

Goorui Ring Blower Material:
Goorui Ring Blower adopts ADC12 aluminium alloy materials(Benz wheel) and high precision high temperature Sweden SKF bearings.
Goorui Ring Blowers' Advantages:
Energy-saving operation through higher efficiency
Variable output control
Pulsation-free compression
Virtually maintenance-free
ADC12 aluminum alloy, Processed on precision CNC machine
Designed and improved by latest technology and molded with high strength material
Sealing ring is placed between housing & motor to prevent entry of foreign matter.
Two- pole motor with TEFC IP54 and insulation F.
In front bearing structure ensures dynamic stability
All products are strictly tested before leaving the factory
Wide range of power configuration and sizes
Long term durability
Simple operation
Applications:
Agriculture(Fish pond and aeration tanks)
Beverage(bottle drying)
Bio fuels
Food and vegetable processing
Medical and Health service(Dental cart and dental vacuum)
Package (Air knives blown-off / Labeling/Drying)
Plastics/Rubber(Air knives blown-off/ Bottle blow moulding/ Extruder Degassing/Pneumatic conveying/ Thermoforming)
Printing
Paper and pulp/ paper converting
Textile industry
Transportation/Loading/Unloading(Pneumatic conveying/material handling)
Water treatment/sewage treatment
Woodworking(CNC Routing/bulk handling)
Why Choose Goorui Regenerative Blower
10 Years experience in vacuum field and solutions.
We have 36 core technology patents.
All our products adopt SKF & NSK bearing.
Our product can heat-resistant up to 130`C.
Power: 150W to 25KW.
Airflow up to 2400m3/H.
Pressure up to 1000mbar.
Vacuum up to -730mbar
CE, SGS, RoHS, ISO9001: 2008certified
| Model | Frequency | Power | Voltage | Current | Max. Air Flow | Max.Static Pressure | Max.Static Pressure | Noise | Dimensions(L*W*H) | Weight |
| In stock | Hz | KW | V | A | m3/h | mbar | mbar | dB(A) | mm | Kg |
| GHBG 002 34 2R2 | 50 | 1.5 | 200-240/345-415Y | 7.5/4.3Y | 47 | -370 | 650 | 58 | 298*525*326 | 28 |
| 60 | 1.75 | 220-275/380-480Y | 7.5/4.3Y | 60 | -500 | 740 | 62 | 28 |
Dongguan Foersheng Mechanical &Electrical Technology Company Limited (FLS) is one of the world's leading side channel blower manufacturer with over 10 years experience in blower and motors R&D, producing, marketing and after sales service.
FLS has own a manufactory center in Dongguan City and sales subsidiaries in 4 cities, Dongguan, Shanghai, Chengdu and Qingdao. Its sales network covers over 20 countries worldwide, including Asia, Europe, Africa and American, etc.
Our service includes
1. Supply & manufacture of side channel blower (ring blower/regenerative blower), air flow capabilities range from 60 to 2550 m3/h, vacuum capabilities 60 to 1000mbar. Supply & manufacture of explosion proof blowers and bare shaft (belt drive style ) blower.
2. On site performance testing of side channel blowers.
3. Also supply accessories (silencer, pressure relief valve, filter, filter barrels), frequency inventor, liquid ring vacuum pump. etc.
Our Blower features are:
1.100% oil free air delivery
2. No routine maintenance
3. Quiet operation, low noise
4. Versatile /ATEX /IE motor options
5. CE, UL, CCC, RoHS, ISO9001
6. Insulation class: F, Protection class: IP54
Industries application:
1. Agriculture(Fish pond and aeration tanks)
2. Food and vegetable processing
3. Dental cart and dental vacuum
4. Air knives blown-off / Labeling/Drying
5. Air knives blown-off/ Bottle blow mould / Extruder Degassing/Pneumatic conveying/ Thermoforming)
6. Printing/CNC table material holding
7. Paper and pulp/ paper converting
8. Textile industry
9. Pneumatic conveying/ Biogas conveying /material handling
10. Water treatment/Sewage treatment
11. Woodworking(CNC Routing/bulk handling)
