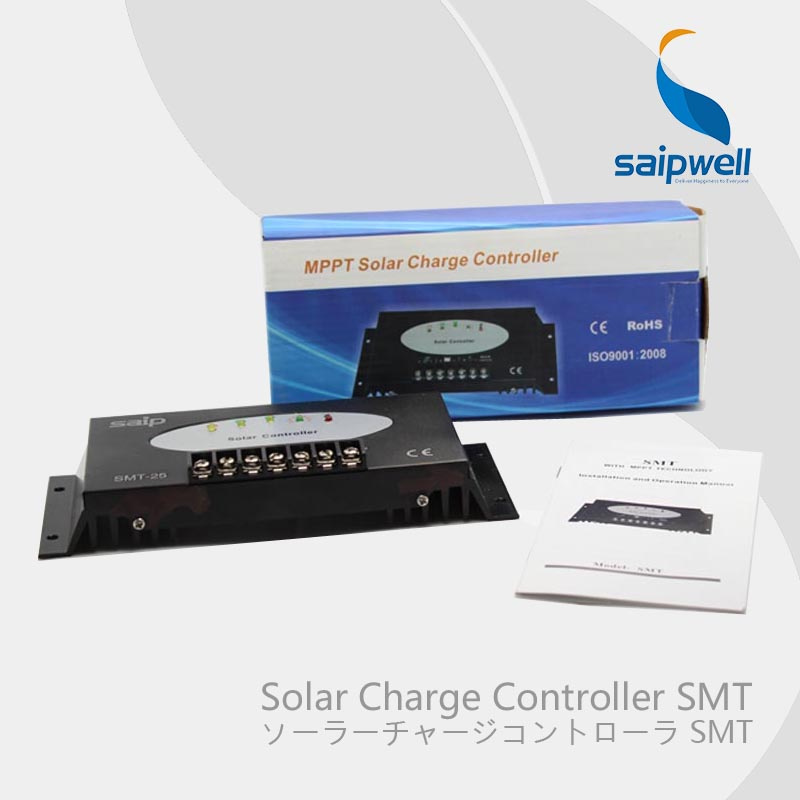

High-Power 20A 12V 24V PWM Solar Charge Controller

SMT10/15/20/30/40 Feature 1. Battery State-of-Charge display with 3 LEDs; 2. Acoustic load disconnect pre-warning; 3. PWM-regulation; 3. Boost, Equalize and Float charging, also for VRLA; 4. Automatic 12/24 Volt detection; 5. Integrated temperature compensation; 6. Large terminals (up to 16mm2 wire size); 7. SOC and voltage controlled LVD; 8. Fully electronically protected . Introduction: 2013 NEWEST mppt hybrid solar charge controllers SMT Series The SMT series is a sophisticated solar charge controller family for low cost applications. The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions. The temperature-compensated three-stage MPPT charging method (boost-equalizationfloat) is now adjustable to sealed and vented lead-acid batteries. The new version also allows an either SOC or voltage controlled low voltage disconnect function. The battery status is clearly indicated by three LEDs. As the first controller on the market in this price range it comes with an acoustic low voltage load disconnect pre-warning feature. Model SMTNL10 SMTNL15 SMTNL20 SMTNL30 SMTNL40 Nominal voltage Automatic recognition 12/24V Max. Solar panel current 10A 15A 20A 30A 40A Max. Load panel current 10A 15A 20A 30A 40A Boost voltage 14.5V/29.0V Equalization voltage 14.8V/29.6V Equalization voltage 13.7/27.4V Deep discharge protection 11.0/22.0V Controlled by voltage Load reconnect voltage 12.8/25.6V Temperature compensation -4mV/cell× K Self consumption <4mA Max. Wire size 16mm2(AWG#6) Dimensions(W× H× D) 80× 187× 28mm(W× H× D) Weight 300g Temperature range -20to +50 Products Show
