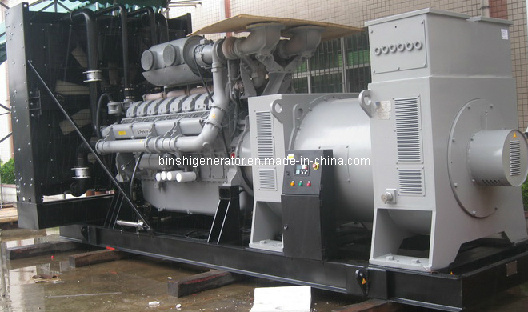

High Performance Perkins Power Generator (BPX 2000)
Perkins diesel generator set:
Brand: Perkins Diesel Generator Set
Genset Model: BPX2000
Prime power(KW/kVA) 1646 / 1800
Standby power(KW/kVA) 2000 / 2250
Rated current(A) 722
Rated voltage (V) 400/230
Rated frequency(Hz) 50Hz
Phases arrangement 3phase 4 line
Power factor 0.8(lagging )
Starting method DC 24V electric starting
L*W*H(mm) 5450X2280X3150
Weight (kg): 15331
Engine
Engine brand Perkins
Engine model: 4016TAG2A
Broke*times; Stroke(mm) 160*190
No. Of cylinders and arrangement: 16V
Displacement(L) 61.1
Compression ratio 16: 1
Rated revolving speed(rpm) 1500
Effective average cylinder pressure(kPa) 2405
Induction system Exhaust turbocharged
Maximum resistance of intake system (kPa) 2.5
Air consumption(m3/min) 35.8
Maximum exhaust back pressure(kPa) 6.0
Exhaust smoke level(m3/min) 94
Exhaust gas temperature(Centigrade ) 550
Cooling method Cooled by water and fan
Exhaust air rate (m3/min) 564
Cooling liquid total capacity(L) 58
Alternator
Brand Faraday(Marathon, Engga, Leroy -somer optional )
Model: FD7G-4
Rated capacity(KW/kVA) 400/500
Excitation Method Brushless, self-excitation
Protection class IP23
Insulation class H
Winding pitch 2/3
Overspeed capacity 2250rpm
Short circuit current capacity 300%(3In): 10s
Telephone harmonic factorTHF 2%
Rated Alternator temperature rise 125Centigrade
Controller
Model: DSE7320
Contents Overspeed\oil-pressure\water temperature\charging failure\showing alarm trouble
Main function High water temperature\low oil pressure\overspeed\starting failure\key starter \samrt remote starter.
|
BS POWER DIESEL GENERATOR SET |
|
50HZ 1500rpm 400/230V |
|
PERKINS ENGGA |
|
Genset Model |
kw/KVA |
KW/kva |
Engine Model (PERKINS) |
Cyl. |
Displacement (L) |
Alternator Model (Engga) |
Maximum Current(A) |
Fuel cons.100% (L/H) |
Net weight (kg) |
Dimensions (L x W x H) MM |
|
Prime |
power |
Standby |
power |
Open Type |
Silent Type |
|
BPX33 |
30 |
33 |
24 |
26 |
1103A-33G |
3L |
3.3 |
EG160-24N |
48 |
7.1 |
827 |
750x650x1250 |
2200x1000x1600 |
|
BPX50 |
45 |
50 |
36 |
40 |
1103A-33TG1 |
3L |
3.3 |
EG225S-40N |
72 |
10.7 |
934 |
750x650x1250 |
2200x1000x1600 |
|
BPX66 |
60 |
66 |
48 |
53 |
1103A-33TG2 |
3L |
3.3 |
EG225S-50N |
95 |
13.9 |
954 |
750x650x1252 |
2300x1100x1600 |
|
BPX88 |
80 |
88 |
64 |
70 |
1104A-44TG2 |
4L |
4.4 |
EG225M-60N |
125 |
18.7 |
1089 |
750x650x1253 |
2500x1100x1600 |
|
BPX110 |
100 |
110 |
80 |
88 |
1104C-44TAG2 |
4L |
4.41 |
EG225M-70N |
159 |
22.6 |
1149 |
2000x650x1254 |
2800x1100x1600 |
|
BPX150 |
135 |
150 |
108 |
120 |
1006TAG |
6L |
5.99 |
EG225L-80N |
216 |
31.5 |
1504 |
2350x700x1450 |
3000x1100x1850 |
|
BPX165 |
150 |
165 |
120 |
132 |
1006TAG2 |
6L |
5.99 |
EG225L-100N |
238 |
41 |
1575 |
2350x750x1450 |
3100x1100x1900 |
|
BPX200 |
180 |
200 |
144 |
160 |
1106C-E66TAG4 |
6L |
6.6 |
EG225L-120N |
288 |
44.6 |
1685 |
2350x750x1450 |
3100x1100x1900 |
|
BPX220 |
200 |
220 |
160 |
176 |
1306C-E87TAG3 |
6L |
8.7 |
EG280M-160N |
317 |
49.1 |
1988 |
2660x900x1500 |
4000x1300x1900 |
|
BPX250 |
227 |
250 |
184 |
200 |
1306C-E87TAG4 |
6L |
8.7 |
EG280L-180N |
360 |
50.3 |
2083 |
2800x1000x1600 |
4200x1400x2000 |
|
BPX275 |
250 |
275 |
200 |
220 |
1306C-E87TAG6 |
6L |
8.7 |
EG280L-200N |
397 |
55.6 |
2113 |
2800x1000x1600 |
4200x1400x2000 |
|
BPX385 |
350 |
385 |
280 |
308 |
2206C-E13TAG2 |
6L |
12.5 |
EG315M-280N |
556 |
84 |
3289 |
3070x1000x1170 |
4500x1400x2200 |
|
BPX440 |
400 |
440 |
320 |
352 |
2206C-E13TAG3 |
6L |
12.5 |
EG315M-320N |
635 |
92 |
3498 |
3150x1150x1780 |
4700x1500x2200 |
|
BPX500 |
454 |
500 |
360 |
400 |
2506A/C-E15TAG1 |
6L |
15.2 |
EG315L-360N |
721 |
99 |
3876 |
3500x1150x1780 |
5300x1500x2200 |
|
BPX550 |
500 |
550 |
400 |
440 |
2506A/C-E15TAG2 |
6L |
15.2 |
EG315L-400N |
794 |
106 |
3985 |
3750x1150x2000 |
5800x1500x2500 |
|
BPX650 |
590 |
650 |
470 |
520 |
2806C-E18TAG1A |
6L |
18.1 |
EG355L-500N |
939 |
129 |
4767 |
4069x1536x1958 |
6100x2000x2500 |
|
BPX700 |
650 |
700 |
520 |
560 |
2806A-E18TAG2 |
6L |
18.1 |
EG355L-500N |
1010 |
132 |
4777 |
4100x1550x2000 |
6200x2000x2500 |
|
BPX800 |
725 |
800 |
580 |
640 |
4006-23TAG2A |
6L |
22.9 |
EG355L-600N |
1154 |
157 |
6278 |
3800x1700x2300 |
6000x2300x2800 |
|
BPX880 |
800 |
880 |
640 |
704 |
4006-23TAG3A |
6L |
22.9 |
EG400S-640N |
1270 |
175 |
6318 |
3800x1750x2350 |
6000x2360x2800 |
|
BPX1100 |
1000 |
1100 |
800 |
880 |
4008TAG2A |
8L |
30.6 |
EG400L-800N |
1587 |
194 |
8892 |
5100x1950x2500 |
8300x2500x3000 |
|
BPX1375 |
1250 |
1375 |
1000 |
1100 |
4012-46TWG2A |
12V |
45.8 |
EG400L-1000N |
1984 |
258 |
11716 |
5100x2280x3050 |
8300x2600x3600 |
|
BPX1656 |
1505 |
1656 |
1204 |
1325 |
4012-46TAG2A |
12V |
45.8 |
EG400L-1200N |
2390 |
281 |
12428 |
4950x2280x3050 |
8000x2600x3600 |
|
BPX1875 |
1705 |
1875 |
1364 |
1500 |
4012-46TAG3A |
12V |
45.8 |
EG400L-1350N |
2706 |
370 |
13664 |
5450x2280x3150 |
9000x2800x3800 |
|
BPX2028 |
1844 |
2028 |
1476 |
1622 |
4016TAG1A |
16V |
61.1 |
EG500M-1600N |
2927 |
383 |
13808 |
5450x2280x3150 |
9000x2800x3800 |
|
BPX2250 |
2000 |
2250 |
1646 |
1800 |
4016TAG2A |
16V |
61.1 |
EG500M-1600N |
3247 |
434 |
15331 |
5450x2280x3150 |
9000x2800x3800 |
|
BPX2475 |
2058 |
2475 |
1800 |
1980 |
4016-61TRG3 |
16V |
61.1 |
EG500L-1800N |
3608 |
473 |
16950 |
5450x2280x3150 |
10000x2900x3800 |
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
