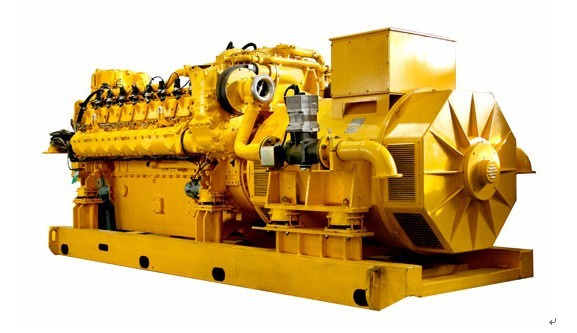

High Performance Natural Gas Generator Set
Genset model: BCX1600
Prime power: 1200KW/1500kVA
Standby power: 1360KW/1600kVA
Advantage of BS gas genset:
BS gas generator features advanced process, rational structure, reliable performance, Great electrical efficency, low oil onsumption, low noise and vibration, easy to start.
Details of BS products:
Standard Configuration of Natural Gas Generator Set:
Engine for natural gas genset: Commins (produce by joint venture)
Alternator: Leroysomer(Farady/Marathon are availabe)
Control System: Famous brand deepsea, Key starting, Auto control panel, Remote control panel, ATS(Auto transfer switch)
Nature gas genset feature:
1, 4 stroke with water cooling
2, ratianal structure with water tank & fan & safe guard
3, AVR(auto voltage regulation)
4, Insulation --H class, Protection -- IP22 (IP23 in marine)
Natural Gas Generator Set Performence:
1) Water cooled inside --closed circle water cooling system.
2) Compressed air to start.
3) Standard voltage is 400/230V and the rated frquency 50Hz, with r. P. M 1500, 3pha & 4wire contected. (60Hz or other voltage can be provided according to your special requests...)
4) with perfect protection and control function. Low water alarm, high gas temperature, low oil pressure and high water temprature protection alarm are all installed
5) Low gas pressure is acceptable, no need to set up specified gas storage tank, which will save the investment and enhance the efficient output power
6) Independantly over-load protection, automatically emergency stop in abnormal situation, unique sensors protection, adapt to all sensors.
7) Stainless steel base with vibration pad. Blue color, package: Plastic wraped or wooden case.
8) Noise-proof, exhaust silencer.
9) Documents can be submited: Installation & maitenance instruction, operation, manual, quality certificate and ex-factory testing report. Completed parameter display, all in English languge.
Afer-sale service of Natural Gas Generator Set:
Guarantee: 12months or 1000hours (subject to which reches firstly).
|
Parameter of 1200kw/1500kva Binshi natural gas genset |
|
Model Number |
BS1200-G |
|
Brand Name |
BS |
|
Prime power/Standby power |
1200kw(1500kva)/1360KW(1600kva) |
|
Electrical efficency |
39% |
|
Oil consumption |
< 1.35g/kw. h |
|
Rated Speed |
1000RPM |
|
Engine Number |
BS16V190T |
|
Rated Frequency |
50/60HZ |
|
Rated Voltage |
400V/230V |
|
Phase |
AC 3-Phase, 4 wire |
|
Total output volume |
97.5L |
|
Alternator |
Engga/Marathon/Leroysomer |
|
Cylinder |
16v(190*215mm) |
|
Starting System |
DC 24V electric motor |
|
Cooling method |
water cooler+fan |
|
Size |
5920*2180*2200mm |
|
Weight |
17200kg |
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
