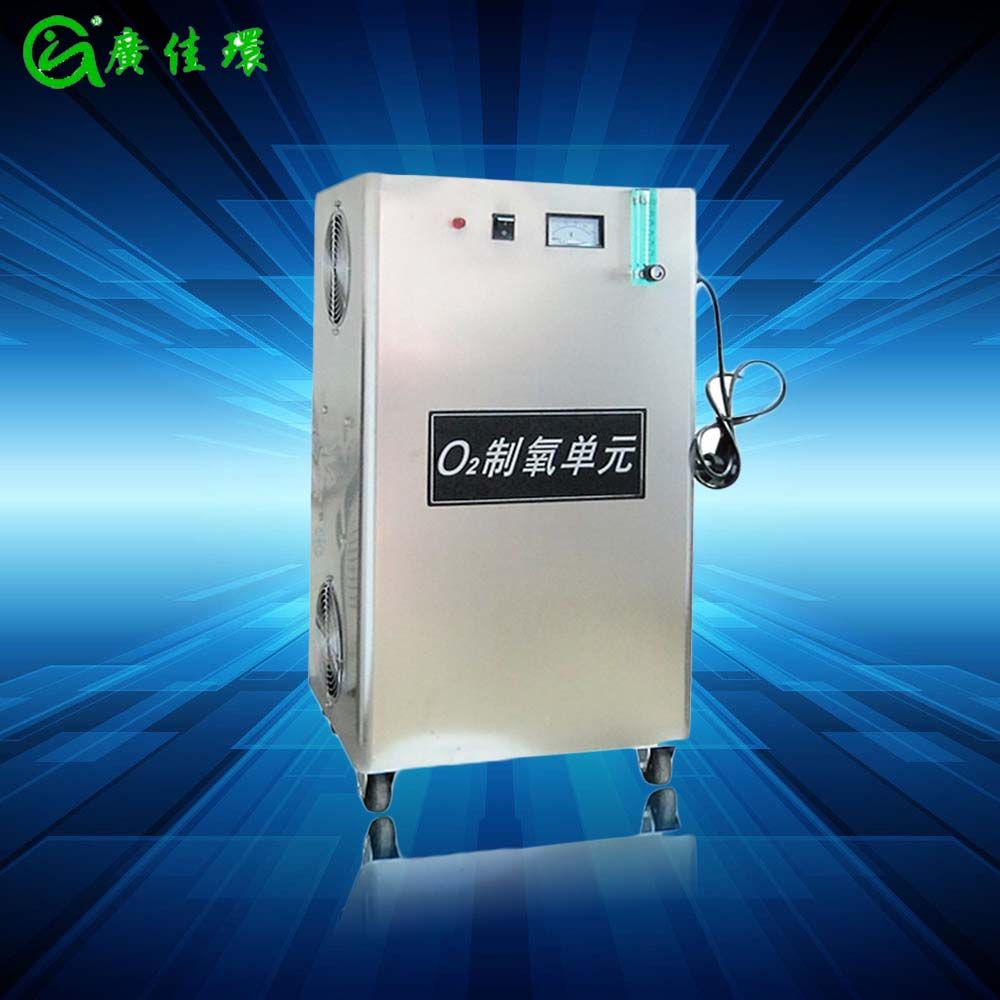

Model: ZL-3-100L
Characteristics
1. High oxygen concentration and output pressure
2. Apply PSA oxygen technology, using clean dry air as raw material, with low cost
3. Low power consumption but high efficiency
4. Simple reliable and safe maintenance
5. Small and light weight, easy operation
6. Cost-effective
Product Description
Technique principle:
?Purified air drying treatment, role of pressure swing adsorption to achieve separation of oxygen and nitrogen
?Due to selective adsorption characteristics of zeolite, nitrogen molecule is adsorbed in zeolite, oxygen concentration in gas phase obtained, as product output.
?System device has two absorption tower, production of oxygen adsorption tower, tower desorption recycling, pay latent and continue
Specification:
Type | Model | Oxygen output(L/Min) | Oxygen purity | Outlet pressure(Mpa) | Power(KW) | Size(CM) | Work principle | Gas source |
Oxygen generator | HY-01435 | 3-5L | 95%±2% | 0.1 | 0.5 | 40*30*76 | PSA technology | inner |
HY-01445 | 5-10L | 95%±2% | 0.1 | 1.2 | 55*40*113 | inner |
HY-01455 | 10-20L | 95%±2% | 0.1 | 2.2 | 55*40*124 | inner |
HY-01465 | 20-30L | 95%±2% | 0.1 | 3.1 | 70*40*140 | external |
HY-01475 | 30-40L | 95%±2% | 0.1 | 4.7 | 70*40*150 | external |
HY-01485 | 40-50L | 95%±2% | 0.1 | 5.6 | 75*45*160 | external |
HY-01495 | 50-60L | 95%±2% | 0.1 | 7.5 | 75*45*160 | external |
HY-01500 | 60-80L | 95%±2% | 0.1 | 9.2 | 75*45*165 | external |
HY-01505 | 80-100L | 95%±2% | 0.1 | 11.8 | 75*45*175 | external |
Compositions:
*refrigerant dryer *air compressor
*air storage tank *adosorption air dryer *ultra-filter elements
*oxygen generation unit and oxygen storage tank
Applications ( For Industrial Use):
1. Welding/Brazing Furnace Enrichment
2. Fermentation Glass Industry
3. Fish Farming Ozone Generator
4. Sewage Treatment Pulp & Paper
5. Chemical Oxidation Rough Cutting
6. Battery Manufacture Melting
7. Mini-Steel Mills Cement & Lime Kilns
8. Metal Spraying Copper Smelting
Packaging & Shipment:
1. Packaging Details: carton.wooden case
2. Delivery Details: 7-30 days after payment.15 days after 30% deposit.sometimes depends on amounts .
3. Shipment: By Express. DHL AIR Mail.etc.
Our Sevices:
1. pre-sale services: timely communication to know well what you need
2. product services: provide our high quality product for you
3. All -in -one services: instruct the custormers how to use the product
4. After sales services: 24 hour online
Guangzhou Jiahuan Appliance Technology Co., Ltd. Specializes in manufacture of ozone generator, ozonator for water treatment and air purifier, PSA oxygen generator, etc. Our company is a high tech company based on advanced ozone technology and core engaged in ozone equipment machanism, ozone equipment design and manufacturing, ozone application project design. As the leading technology enterprise in Chinese ozone industry, we could provide installation, operation, debugging and other professional services.
