High Output Ozone Generator Sterilizer (YL-S3500)
| Price: |
Negotiable |
| Trade Terms: |
by express, by sea |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

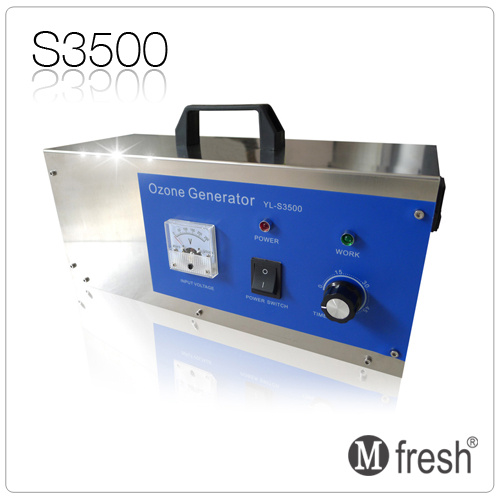

High Output Ozone Generator Sterilizer YL-S3500
Specification:
Name: High-output ozone generator
Input voltage: AC220V/50Hz
Working voltage(V): 3.0~3.5K
Working frequency(Hz): 8~10K
Nominal Power(W): 45
Ozone output(g/h): 3.5G
Ozone density(mg/l): 8~10
Effective Space (m3 ): 0-300
Material: Imported stainless steel
Dimension(mm): 350*130*150
Installation:
1. This product should work in a dry and ventilated room. If it must work outside, please shield it from direct sunshine and rain.
2. For air purification, it can work with a silicon pose linked and the other side LED to the place. For water purification, it can work with a silicon linked and the other side put into water with a air stone.
3. Please make sure the silicon pose is in good condition for proper function.
Use:
1. Plug into 220V socket with earth wire and voltage meter reacted (AC 220V). Press the power switch, the red light on and pump working. Switch the timer and the green light on. (The timer can set a time within 1hour)
2. Open the switch and working indicator on(green light), pump working. Twisting the knob and fix the time for ozone output.
3. You can fan at output then smell the ozone odor(Do not smell ozone directly).
Care and Maintenance:
1. Please keep the surface of machine clean at regular period.
2. Please change the silicon pose when it is broken.
Note:
1. When for air purification, it is advised that people should avoid the sterilization area in case of respiratory system stimulation because of high density of ozone.
2. For water purification, please install with anti-reflux device in case of damaging machine. (It is advised to install antioxidant normally closed valve at the pipeline and it` s power synchronous with ozone power.
3. This product` s voltage is 220V/50Hz and there is a high voltage inside. Please make sure there is a earth wire and avoid electric shock.
4. Do not smell ozone directly in case of respiratory system stimulation. Nor do the pregnant and children.
Warning!
Ozone is strong oxidant and unpleasant smelly. When people inhale it, eye, nose, throat, and mucosa membrane of respiratory system will be stimulated. It will cause cough, headache, sore throat. People will feel ozone and take action to avoid it when people are exposed to ozone that is far away the regulated maximum density.
Declaration:
According to the principle sustainable development, our company have the right to amend and improve the instruction of any model or product with informing customers.
|
Model |
YL-S3500 |
Input Power |
AC220V |
|
Rating Voltage |
3.0~3.5KV |
Working Frequency |
50Hz |
|
Rating Power Consumption |
45W |
Ozone output |
3.5g/h |
|
Ozone Density |
8~10mg/L |
Effective Area |
≤ 300m3 |
|
Material |
Stainless steel |
Dimension |
350x130x150mm |
| Prod Model: |
YL-S3500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
AC220V |
| Plug: |
Euro UK Australia |
| Voltage: |
220V |
| Timer: |
From 0-45mins |
| Ozone Output: |
3.5g/H |
| Material: |
Stainless Steel |
| Certification: |
CE |
| Usage: |
Industry |
| Purifying Technology: |
Ozone |
| Type: |
Ozone |
| Structure: |
Portable |
