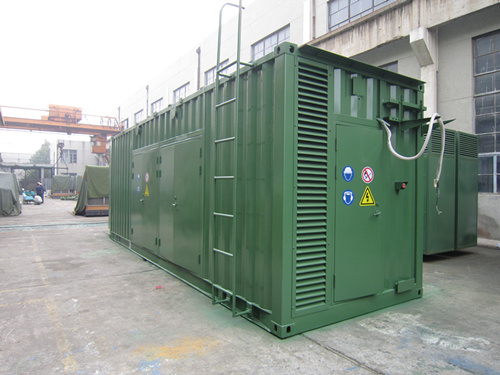

High integrated power plant containerized generator set
Featrues of containerized generator set:
1. High integrated power plant
The containerized generator set holds the generator and control parts in one container and the radiator (with multifans), silencer, exhaust hest exchanger are installed on the container roof, all forming an independent standardized power plant with flexible adjustment of power plant capacity.
2. Fine appearance, easy for lifting and shipment
The design of generator container is in accordance with standard container, and the container is produced by professional manufacturer with good presentation and ease for lifting and shipment.
3. Low noise
As a type of silent gensets, stringent technical measures are taken to control noise emission of the genset. According to factory testing, when genset container is fully closed, containerized genset's noise emission is ≤ 80dB(A) during the day and ≤ 70dB(A) at night (1 meter away from genset).
4. Forced ventilation, stabilized interior temperature at fully closed operation
During fully closed operation, forced ventilation can ensure normal radiating of equipment inside the container. The flow fan has different blowing speed according to temperature status inside the container. Forced ventilation system controls the temperature rise to the level of ≤ 10 degree centigrade, also gas detector and explosion proof lamp is installed inside the container.
5. Enough space for operation and maintenance
Following measures are taken to ensure enough space inside the container:
Using wide container: Width of 3000mmm, each side of the genset has extra width of 620mm;
Pipe system of the engine is completely elevated, all pipes, valves, regulators are hoisted on the roof of the container;
6. Less civil construction, quick and easy installation
Compared with traditional power plant, AVESPEED generator only needs a cement foundation for installation. Electricity can be generated after installation on site and connected with water, electricity and gas. The construction period is sharply reduced.
7. Small space, water and energy conservation
The highly integrated AVESPEED generator needs less construction space, is equipped with radiator and waste heat boiler or heat exchanger thus enhancing energy utilization efficiency and conserving water resource.
8. High automation level, large automatic power plant can be constructed
AVESPEED generator, equipped with advanced automation control hardware and software, gives an automatic and stable operation. The operation parameters of generator can be in the form of remote transmission of data to control room hence large scale automatic power plant can be built. With the option of such communication function of computer network and mobile phone network the operation can be fully automated.
|
Generator Set |
600GJZ1-PwZ-ESM/EAM& all type |
|
Control System |
ESM/EAM |
|
Noise level(1 meter away, dB(A), genset is fully closed) |
Day time:≤80,Night time: ≤70 |
|
Exhaust Heat Boiler |
Optional |
|
Mute Configuration |
Optional |
|
LxWxH(mm) |
Max:9014x3000x2900 |
|
Total Weight(kg) |
Max:20000 |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
