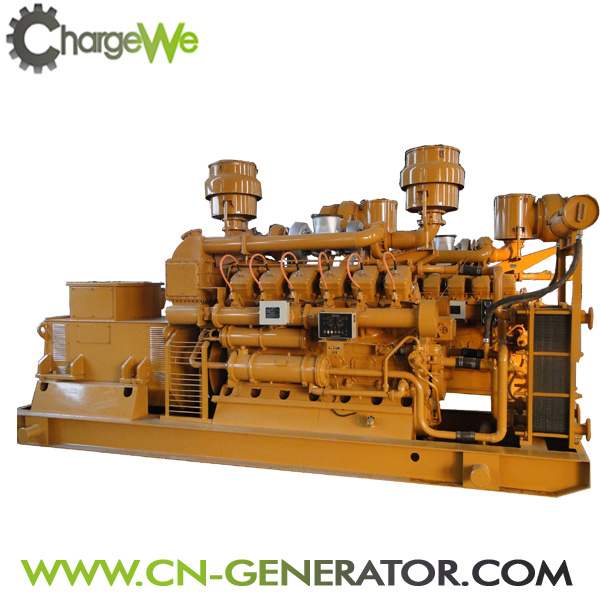

High Efficiency Wood Chips Biomass 600kw Gas Powered Generator with Genset Parts
| Price: |
US $ 129500/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
High efficiency wood chips biomass 600kw gas powered generator with genset parts Specifications :
1.Power range :20kva~1250kva also can parallel run
2.High quality engine ,stamford or Simens alternator .
3.24hours continuous runing hours
4.Manufacuturer of generator for 20yeears, OEM provided.

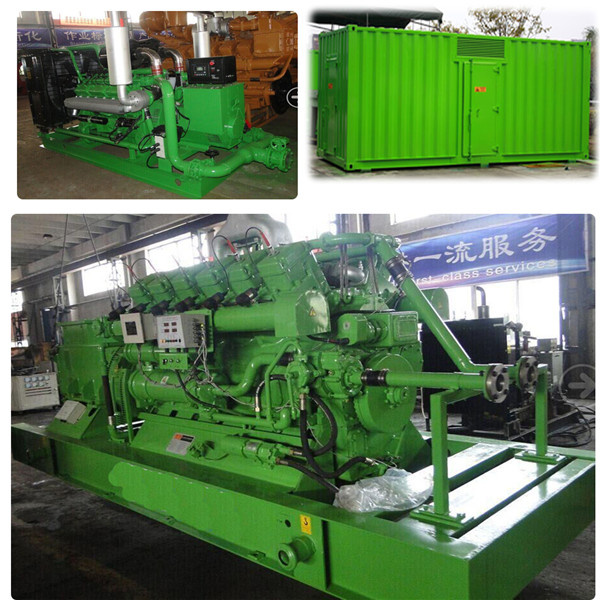

5.Container genset , silent genset and mobile trailer generators can be provided.
Requirements for biomass
Within 1m to the intake valve of gas generator set
1.Generator temperature≤40ºC
2.Pressure 3-10kpa ,pressure changing rate≤1kpa/min
3.H2S≤200mg/Nm3
4.NH3≤20 mg/Nm3
5.Tar content ≤20 mg/Nm3
6.Impurity particle size≤5um .impurity content≤30 mg/Nm3
7.Moisture content≤40 g/Nm3
8.Heat value≥4.2mj/Nm3
Noted : If there are too much sulfur and ammonia in the gas ,it will not only corrode the electrode of sparking plug heavily but also increase the acid value of engine oil which will corrode the parts inside of genset ,easy to generate precipitate and increase the attrition corrosion to the engine.Main model of Natural gas genererators| Genset No. | Engine No. | Rated power | Rated speed(r/min) | Size(L*W*Hmm) | Weight(KG) |
| CW-20GFT | CW4105 | 20KW | 1500 | 2200×850×1300 | 900 |
| CW-40GFT | CW6105 | 40KW | 1500 | 2700×850×1350 | 1200 |
| CW-60GFT | CW4135 | 60KW | 1500 | 2300×850×1350 | 1300 |
| CW-80GFT | CW6135 | 80KW | 1500 | 4000×120×1750 | 2300 |
| CW-100GFT | CW6135 | 100KW | 1500 | 4000×120×1750 | 2300 |
| CW-120GFT | CW12V135 | 120KW | 1500 | 4000×120×1750 | 4000 |
| CW-200GFT | CW12V135 | 200KW | 1500 | 4000×120×1750 | 4000 |
| CW-300GFT | 6190ZLDT-2 | 300KW | 1000 | 5600×1970×2170 | 9000 |
| CW-400GFT | 12V190DT-2 | 400KW | 1000 | 5600×1970×2235 | 11000 |
| CW-500GFT | 12V190ZLDT-2 | 500KW | 1000 | 5600×1970×2670 | 11500 |
| CW-600GFT | 12V190ZLT | 600KW | 1000 | 5600×1970×2670 | 11500 |
Shandong Chaiwei Power Equipment are manufacturer of genset for 20years . mainly proudce natual gas generator ,biogas generator ,biomass generator ,coal mine gas generator , coal oven gas generator ,syngas generatror ,LPG genset ,diesel generator etc ,also have installed 35 power plants in many countries , container CHP generation ,Co-generation , biogas power plants projects etc.
Accessories of generator set
Apprication scope of the Accessories : Jichai engine , shendong (Diesel gen-set, gas gen-set) such as 12V190,8V190 6190 ,6135 and other engine types

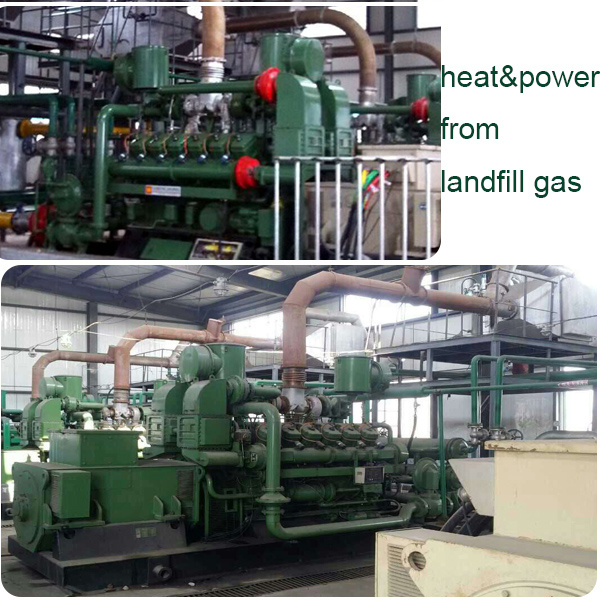

Power plants
Clients visited
Contact us
Tel:+86-18853132968(whats app)
Website: www.cn-generator.com
| Prod Model: |
CW-600GFT Biomass generator |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
AC Three Phase |
| Rated Power: |
25kVA~1250kVA |
| Starting System: |
DC 24 Electric Motor |
| Gas Source: |
Natural Gas |
Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. So the OEM and ODM are available. We have completed quality inspection system to make sure each product that customer get is perfect, and the professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
