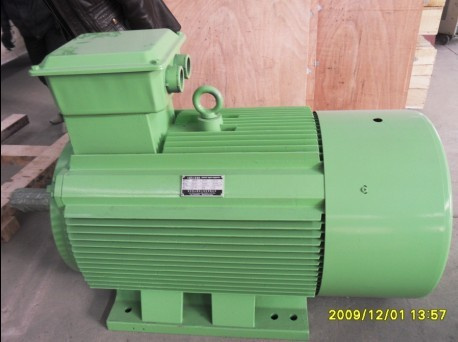

High Efficiency Direct Drive Permanent Magnet Generator (1500RPM, 1800RPM)

Name: High Efficiency Direct Drive Permanent Magnet Generator (1500RPM, 1800RPM)
Brand: aboutgenerator.com
SKU: 711387805
Availability: InStock
Rating: 4.4 (96 reviews)

Price:	US $ 500-50000/Piece
Trade Terms:	FOB,CFR
Min Order:	1/Piece
Pay Type:	T/T,D/P,Paypal,Western Union

Contact Supplier

Xinda Green Energy Co., Limited

Showroom Product Company Profile

Diesel generator, gas generator, also can use for wind turbine and hydro turbine system, 1500rpm 1800rpm 1000rpm, 750rpm all available

Power	Voltage	50Hz Speed	Current	Power factor	Efficiency	Rated torque	Peak torque	Model	Length	Weight
0.2kw	220V	1500RPM	0.59A	0.98	91.00%	1.27Nm	2.5N. m	Y80-4M	295	5kg
0.5kw	220V	1500RPM	1.49A	0.98	91.00%	3.18Nm	6N. m	Y80-4M	295	6kg
0.8kw	220V	1500RPM	2.38A	0.98	91.10%	5.09Nm	10N. m	Y80-4M	295	7kg
1 kw	220V	1500RPM	2.98A	0.98	91.20%	6.37Nm	13N. m	Y80-4L	295	7.5kg
1.5kw	220V	2000RPM	4.47A	0.98	91.30%	7.12Nm	15N. m	Y80-4L	295	9kg
2kw	220V	3000RPM	5.96A	0.98	91.40%	6.37Nm	13Nm	Y80-4L	295	5kg
2.5kw	220V	3500RPM	7.45A	0.98	91.50%	8.28Nm	16Nm	Y80-4L	295	6kg
3 kw	220V	4500RPM	8.95A	0.98	91.60%	6.37Nm	13Nm	Y80-4L	295	7kg
4 kw	220V	6000RPM	11.93A	0.98	91.60%	6.37Nm	13Nm	Y80-4L	295	9kg
1 kw	220V	1500RPM	2.9A	0.98	91.50%	6.37Nm	12Nm	Y90-4M	340	20kg
1.5kw	220V	1500RPM	4.4A	0.98	91.60%	9.55Nm	20Nm	Y90-4L	340	22kg
2 kw	220V	1500RPM	5.8A	0.98	91.60%	12.7Nm	25Nm	Y90 -4L	340	25kg
2.5 kw	220V	1500RPM	7.3A	0.98	93.50%	35.0Nm	65Nm	Y100-4M	475	20kg
3 kw	220V	1500RPM	8.7A	0.98	93.60%	47.8Nm	100Nm	Y100-4L	515	22kg
4 kw	220V	1500RPM	11.7A	0.98	93.60%	70.0Nm	150Nm	Y100-4L	515	25kg
8kw	380V	7000RPM	13.2A	0.98	93.60%	10.7Nm	20Nm	Y100-4L	475	25kg
4 kw	380V	1500RPM	6.8A	0.98	92.80%	25.5Nm	50Nm	Y112-4M	400	33kg
5 kw	380V	1500RPM	8.4A	0.98	93.00%	31.8Nm	60Nm	Y112-4L	400	26kg
5.5 kw	380V	1500RPM	9.2A	0.98	93.10%	35.0Nm	70Nm	Y112-4L	400	36kg
6 kw	380V	1500RPM	10.1A	0.98	93.20%	38.2Nm	80Nm	Y112 - 4L	400	30kg
5.5 kw	380V	1500RPM	9.1A	0.98	93.50%	35.0Nm	65Nm	Y132-4M	475	65kg
7.5 kw	380V	1500RPM	12.4A	0.98	93.60%	47.8Nm	100Nm	Y132-4L	515	76kg
11kw	380V	1500RPM	18.1A	0.98	93.60%	70.0Nm	150Nm	Y132-4L	515	83kg
4.5 kw	380V	1000RPM	9.1A	0.98	93.50%	35.0Nm	65Nm	Y132-4M	475	65kg
5.5 kw	380V	1000RPM	9.0A	0.98	93.60%	47.8Nm	100Nm	Y132-4L	515	76kg
7.5kw	380V	1000RPM	12.2A	0.98	93.60%	70.0Nm	150Nm	Y132-4L	515	83kg
13 kw	380V	1500RPM	21.2A	0.98	93.50%	82.8Nm	200Nm	Y160-4M	605	103kg
15 kw	380V	1500RPM	24.5A	0.98	93.50%	95.5Nm	200Nm	Y160-4M	605	110kg
18.5 kw	380V	1500RPM	30.2A	0.98	93.60%	117.8Nm	240Nm	Y160-4L	650	117kg
20kw	380V	1500RPM	32.6A	0.98	93.60%	127.3Nm	270Nm	Y160-4L	655	121kg
22kw	380V	1500RPM	35.8A	0.98	93.60%	140Nm	280Nm	Y160-4L	660	125kg
22 kw	380V	1500RPM	35.7A	0.98	93.50%	140.1Nm	290Nm	Y180-4M	670	175kg
25 kw	380V	1500RPM	40.6A	0.98	93.60%	159.2Nm	330Nm	Y180-4L	670	182kg
30 kw	380V	1500RPM	48.5A	0.98	93.60%	191.0Nm	400Nm	Y180-4L	710	190kg
35 kw	380V	1500RPM	56.2A	0.98	93.50%	222.8Nm	450Nm	Y200-4M	775	250kg
37 kw	380V	1500RPM	59.6A	0.98	93.60%	235.7Nm	480Nm	Y200-4M	775	260kg
40 kw	380V	1500RPM	64.5A	0.98	93.60%	254.7Nm	520Nm	Y200-4M	775	275kg
45 kw	380V	1500RPM	71.2A	0.98	93.50%	286.5Nm	580Nm	Y200-4M	815	285kg
50 kw	380V	1500RPM	80.0A	0.98	93.60%	318.3Nm	630Nm	Y225-4L	815	300kg
55 kw	380V	1500RPM	88.1A	0.98	93.60%	350.2Nm	710Nm	Y225-4L	845	320kg
60 kw	380V	1500RPM	96.1A	0.98	93.50%	382Nm	770Nm	Y250-4M	605	403kg
75 kw	380V	1500RPM	120.2A	0.98	93.60%	477.5Nm	960Nm	Y250-4M	650	415kg
80 kw	380V	1500RPM	127.9A	0.98	93.60%	509.3Nm	1050Nm	Y250-4M	650	423kg
18.5 kw	1140V	375RPM	30.4A	0.98	93.00%	471.1Nm	800Nm	Y250-4M	650	413kg
22 kw	1140V	375RPM	36.3A	0.98	93.30%	560.2Nm	1000Nm	Y250-4M	650	413kg
90 kw	380V	1500RPM	143.6A	0.98	93.50%	573Nm	1200Nm	Y280-4M	1000	560kg
110 kw	380V	1500RPM	175.4A	0.98	93.60%	700.3Nm	1480Nm	Y280-4M	1000	610kg
130 kw	380V	1500RPM	207.2A	0.98	93.60%	827.7Nm	1700Nm	Y280-4M	1000	620kg
150 kw	380V	1500RPM	238.6A	0.98	93.50%	955Nm	2000Nm	Y280-4M	1050	660kg
180 kw	380V	1500RPM	284.8A	0.98	93.60%	1146.0Nm	2200Nm	Y280-4L	1050	680kg
200 kw	380V	1500RPM	315.8A	0.98	93.60%	1273.3Nm	2500Nm	Y280-4L	1050	690kg
250 kw	380V	1500RPM	395.6A	0.98	93.50%	1591Nm	3000Nm	Y315-4M	1310	1100kg
280 kw	380V	1500RPM	443.1A	0.98	93.60%	1782Nm	3400Nm	Y315-4L	1340	1170kg
300 kw	380V	1500RPM	474.8A	0.98	93.60%	1910Nm	3600Nm	Y315-4L	1340	1220kg

Prod Model:	XD-PMG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Customized
Shaft:	Customized
Housing:	Cast Iron
Bearing:	SKF
Phase:	Three Phase

Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on

Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
