High Efficiency Air Source Ozone Generator Water Purifier

High Efficiency Air Source Ozone Generator Water Purifier
Price: US $ 800/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Ozone is an unstable gas comprising of three oxygen atoms, the gas will readily degrade back to oxygen, and during this transition a free oxygen atom, or free radical is form. The free oxygen radical is highly reactive and short lived, under normal conditions it will only survive for milliseconds.

Ozone is a colorless gas that has an odor similar to smell of the air after a major thunderstorm.
Ozone has a greater disinfection effectiveness against bacteria and viruses compared to chlorination.  In addition, the oxidizing properties can also reduce the concentration of iron, manganese, sulfur and reduce or eliminate taste and odor problems.  Ozone oxides the iron, manganese, and sulfur in the water to form insoluble metal oxides or elemental sulfur.  These insoluble particles are then removed by post-filtration.  Organic particles and chemicals will be eliminated through either coagulation or chemical oxidation.   Ozone is unstable, and it will degrade over a time frame ranging from a few seconds to 30 minutes. The rate of degradation is a function of water chemistry, pH and water temperature.

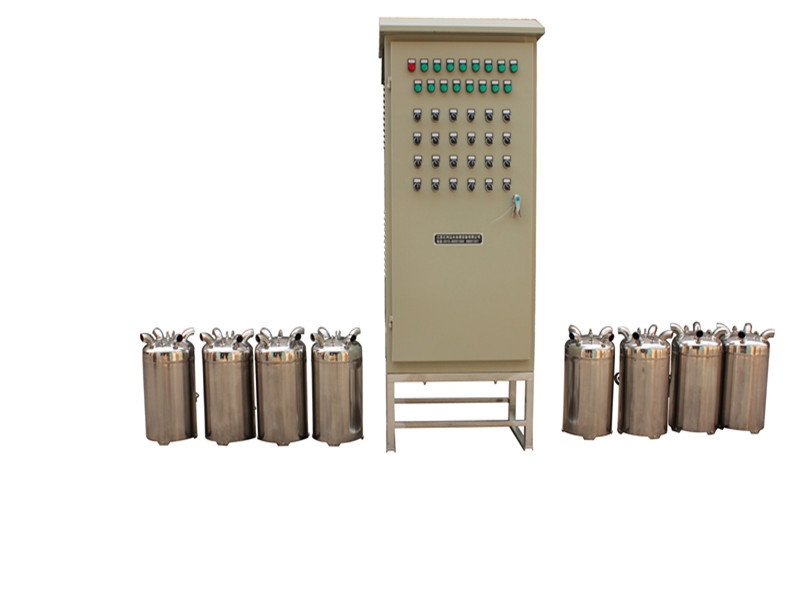

Water-tank self-cleaning ozone water disinfector

Operating Principle
First, place the circulation tank of self-cleaning sterilizer to the lower middle part of the water tank so as to guarantee the even circulation of the tank water. When the water level reaches the designed top limit, the electric control cabinet starts up the high-voltage power and the strongly-oxidized gas generated by the immersible pump flows through the pipeline to the aeration section to aerate-disinfect the water, and at the same time, the immersible pump sends the disinfected water back into the water tank to circulate the stagnant water. Thus water circulation continues until thorough disinfection is completed and the water quality is guaranteed. Before delivered off the factory, the time for this product has been setted,no need resetting for the user.

Categorization of Products
1. Water-tank ozone self-cleaning disinfector
2. Water-tank micro-electrolysis self-cleaning disinfector

Working principle for the water-tank micro-electrolysis self-cleaning disinfector:
The water-tank self-cleaning disinfector starts up electro-chemical reaction to excite the chlorine ions dissolved into the water to generate the following oxidized substances: HCLO, CLO2, O3, O and Cl2, etc. The above oxidized matters will then be diffused and circulated so as to dispose the water tank, all the water inside and the water tank walls, damage the bacteria and alga microbiological cells and ultimately achieve the goal of disinfection and killing algae.
Specifications for (external) water-tank micro-electrolysis self-cleaning disinfector

Specifications for (embedded) water-tank ozone self-cleaning disinfector


Model
Volume adaptable for water tanks (pools)

Power (W)
Used for disinfection of secondary water supply (m³)Used for first water
tanks (m³)
WTS-1010-3010-50280
WTS-2030-6050-80350
WTS-3060-15080-200480


Applications
The water-tank self-cleaning disinfector has been widely used in such water storage areas as high level cisterns, water storage tanks, living water tanks, clean water pool of sewage treatment works, fire water tanks, fountain springs, waterscape cistern, swimming pools and the water storage pools for such industries as aquatic products, aquaculture, oceanic world and food and beverage.



Prod Model: WTS-40
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ozone Tube: Stainless Steel Housing and Rubber Tube
Submerged Pump: Ss,Plastic
Ozone Output: 5g-100g/Hour
Control Panel: Ss,Carbon Steel
Installation: Submerged Into Water
Type: Ozone
