High Biogas Production Capacity Mini Biogas Digester Biogas Generator

High biogas production capacity mini biogas digester biogas generator

Raw material source of small biogas equipment Portable methane biogas plant

1.    High oncentrated organic wastewater
2.    Residual sludge in sewage plant
3.    Kitchen waste
4.    Animal manure
5.    Crop straw

Product Description

Brief introduction of portable biogas plant small biogas equipment biogas plant machinery:

Household portable biogas plant represents a boon for urban and rural people to meet their energy needs. They do helpin two ways: one is to reduce waste and the other is to provide valuable energy.


The aim of establishing a biogas plant (also called methane gas plant)can vary from environmental protectionand waste reduction to renewable energy production. the step of a biogas project undergoes the following steps:

1.Project idea

2.Pre feasibility study

3.Feasibility study

4.Detailed planning of the biogas plant

5.Permission procedure

6.Construction of the biogas plant

7.Operation and maintenance

8.Re-investment, renewal and replacement of components

9.Demolition or refurbishment


 Kingdo can supply you the complete biogas making technology and complete set of biogas machinery, and experienced in the biogas project, we have set up small /mini biogas plant and large biogas plant in China and overseas.

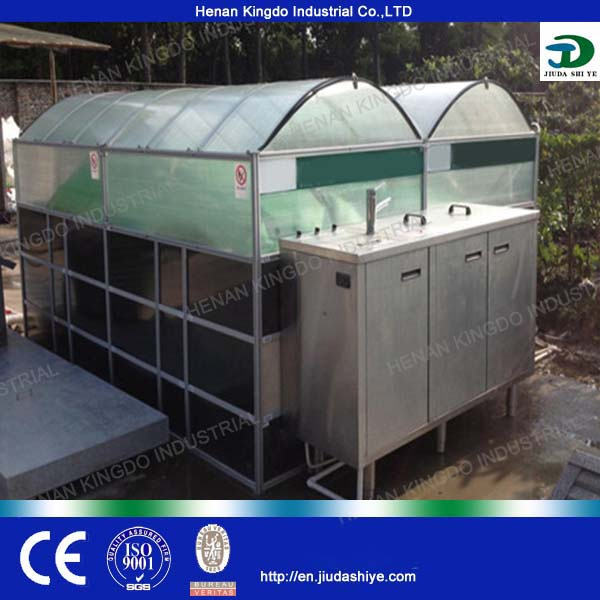

A model of small biogas plant biogas equipment biogas making machine–KYRB-3


Category	Specification
Product name	Portable Mini Biogas Combination
Item No.	KYRB-3
Manufacture	Henan Hi-tech Kingdo Industrial Co., Ltd
Dimension	1620mm*1320mm*1760mm
Weight	60kg
Packing volume	0.44m3
Packaging composition	Main case *1, lighting isolation board*1, aluminium profile *2, EPS board *1
Main case KYRB -3A	L*W*H:704mm*649mm*39mm Volume 0.18m3
Hollow sheet KYRB -3B	L*W*H:1591mm*536mm*143mm Volume 0.12m3
Frame Aluminum Profile KYRB -3C1	L*W*H:1603mm*198mm*152mm Volume 0.05m3
Frame Aluminium Profile KYRB -3C2	L*W*H:1638mm*198mm*152mm Volume 0.05m3
EPS board KYRB -3C3	L*W*H:615mm*615mm*110mm Volume 0.04m3
Gas production rate	0.40m3/d.m3
Overall volume	3m3
Max. gas output daily	1.2m3
Effective fermentation volume	1.2-1.8m3
Effective gas storage volume	1.2-1.8m3
Suitable fermentation	6%-8%
Suitable PH value	6.8-7.2
Fermentation temp.	Medium or normal temperature≥8oC
Discharging method	Automatic discharging
Heating and thermal insulation	The sunlight ceiling to improve the temperature of fermentation liquor in the pool, and laying thermal isolation material at the bottom.

Performance of Kingdo Middle and Mini biogas plant Small biogas plant biogas making equipment

To increase the methane producing rate, the special naturalized high temperature fermented bacteria will be used in project. Generator

should be prepared by client to secure the high temperature fermentation and re-use the recycling heat


Methane producing per year: 7.2×107Nm3

Fermentation concentration TS: 17-20%

Fermentation temperature: 53ºC

Standing time: 12d

TS methane producing rate: 0.08m3/kg

Pool Volume Methane producing rate: 3 m3/ m3·d

Engineering and Technical Characteristics of Small biogas plant

1.) Economic and durable, low investment, high earnings to establish a small biogas plant

Fermentation Digester made from flexible polymer material anaerobic material, placed in sealed aluminum frame

embedded solar panels within the enclosure. Anti-cold, anti-exposure, anti-lightning, anti-earthquake, anti-aging, anti-

aging, no-leakage. Under normal working condition, can be used continuously for 10 years, less investment, high

earnings!

2.) Project operation, high efficiency, low maintenance costs of a small biogas plant

As the frame design based on setup on the ground, and exterior design based on sun warming roof. The whole digester

inside temperature keep at high degrees, the fermentation diester can working at high efficient level. This increased

biogas production ability. There is no other machinery equipment, no need additional special care or maintenance, the

post-maintenance cost is low.

3.) Overall well air tightness, no odor, high safety and high performance of a mini biogas plant

Flexible polymer material anaerobic fermentation digester with good sealing performance, so, the entire project site will

be no smell, fermentation tank using pressure balanced design ensures fermentation atmospheric environment working

under normal pressure, there will be no potential high biogas pressure risk.

4.) No crusts, no need mixing, high biogas production rate, easy and convenient discharge material.

Digester body is deep color, easy absorb solar energy, the pool inside temperature is high, so, gas production rate is

high. As the digester is made from high strength flexible material, anti-tear strength. When biogas comes from raw

material, digester bag top vibrates, this made floating objects will be always suck under biogas liquid material. So, there

will be no crust happens. The whole system is working under 100% sealing, compared with the same volume traditional

biogas digester, gas production ability increased about 50% to 80%. The soft biogas digester bag will be more easy

discharge material.

5.)  Easy and convenient setup, fast installation to found a portable biogas plant

There is no limitation for location installation. If the ground is level, no sharp object will be suitable for installation.

(location such as Animal manure filled lake, Township building stairwell, Soft pit, etc)If there is some distortion for ground, or outside force vibration happens, the system can still working normally, no effect for function and efficiency.

Advantages

Easy installation of portable biogas plant /biogas making equipment

1.       It is easy to smooth a ground for installation at mountains, rocky places.

2.       For plain area, only need a smooth level place for installation.

3.       For new rural household users, only need a corner place for installation.

4.       For resident users, after finishing installation, New Portable Assembly Biogas digester can easy disassembly and  pack, move to other location for re-assembly.

5.       For lakes pastoral and fishing areas users, New Portable Assembly Biogas Digester is easy to dis-assembly and pack, move to other location for re-assembly.

6.       For northern area users, New Portable Assembly Biogas Digester can easy install inside warm greenhouse.

Advanced of Kingdo mini Biogas machines and mini biogas plant

1.       High gas output, about 0.41m3/Cbm.d.

2.       No leaking, 100% overall sealing.

3.       Small amount of daily organic waste, or manure will afford to produce biogas.

4.       Work under mid temperature, insulation, extend gas production time in winter.

5.       No crusts, no blocking, automatic discharging

6.    Edible oil project, grain processing, biodiesel and biogas project experience for more than 17 years

Company Information

Experienced manufacture and project overseas exporter:

Henna Hi-Tech Kingdo Industrial Co., ltd is specialized in house hold biogas plant, she has strong engineering team todesign and develop new product that apply to the expanding market, not only for large scale biogas power plant for national electricity supply, but also for small or mini sizes biogas plant for home use. Especially for the new compact biogas plant KYRB series which has been proved as successfully worked and warmly welcomed both domestically and overseas.
