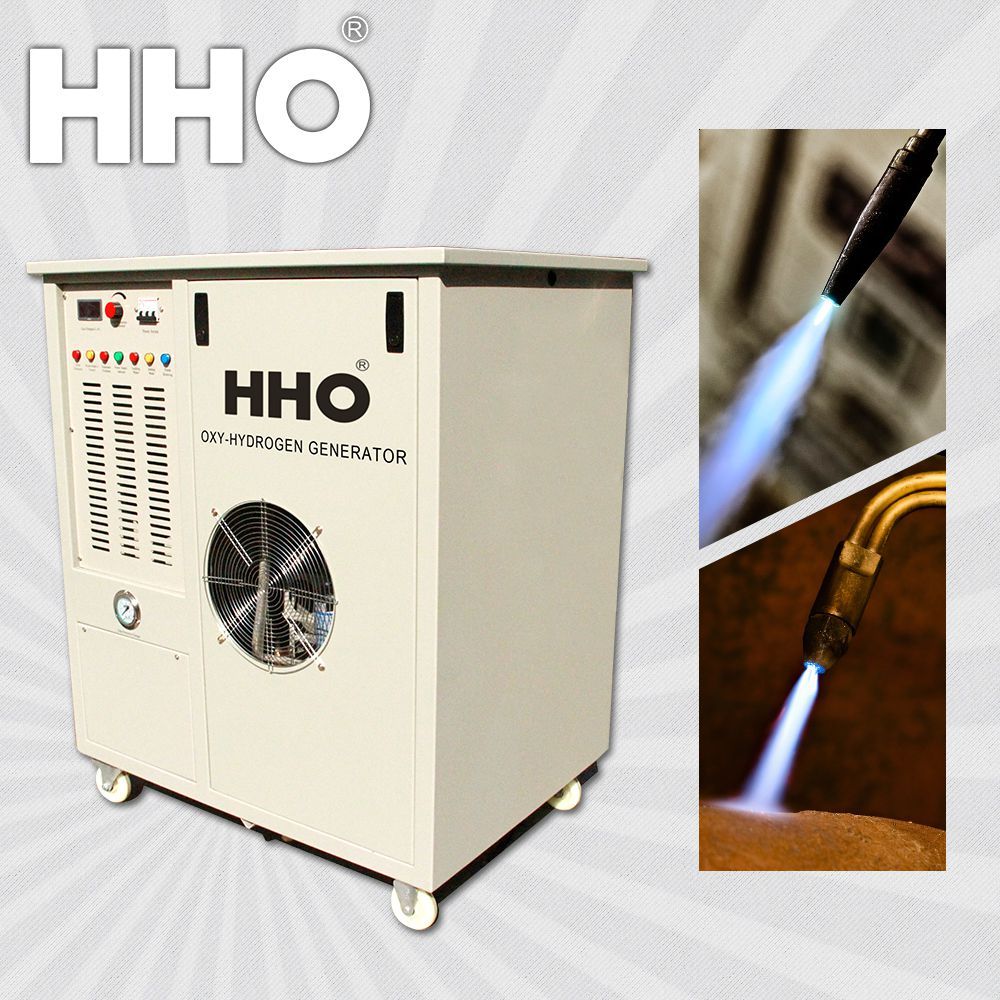

HHO3000 1020*770*1270 Laser steel cutting machine price
Application of cutting in continuous casting billet


Hydrogen, as a green energy medium, can also meet resources, environment and sustainable development's requests that no other gases can match. In 1999,using Oxy-hydrogen flame for the continuous cast products cutting technology successfully applied to the continuous cast products cutting field, it has undertook continuous development and improvements. More than 100 sets of caster and 450 sets of billet, rectangular billet and plate slab use Oxy-hydrogen gas as cutting flame(energy medium).So it make a significant to the work of saving energy and reducing consumption of our country's steel enterprise.

Metal cutting is a metal and oxygen burning exothermic chemical process. In the process of cutting, the main effect of flame is to heat the metal to its ignition point. Burning the hyperbaric oxygen with metal will release a lot of heat, the form metal oxides will blow away by hyperbaric oxygen flow. Then the metal will be cut off. The technology of the electrolyzing water oxy-hydrogen generator in the continuous cast products cutting, using the made oxy-hydrogen as a medium energy, is to burn the billet to its ignition point in order to cut off it.

Burning level is the comprehensive index of the heat performance degree. The size of the combustion intensity depends on the burning speed and total calorific value of the gas flame. The size of the combustion intensity of acetylene is the highest among all kinds of gas. Hydrogen's combustion intensity rank only second to acetylene's for its high burning speed, though it has a low total calorific value. The temperature of the billet has a great impact on the speed of cutting. the cutting speed will be doubled if the casting billet's temperature reaches 800ºC than normal.

There is carbon element in fossil fuel materials. In cutting process, there will form viscous iron carbide(Fe+C→FeC),so, after cutting continuous casting billet, there are many slag which are not easy to clean up, it need precise rectifier before the steel rolling process. However, using Oxy-hydrogen produces fewer slag. which are easy to clean up, than using other fuels. Meanwhile, the Oxy-hydrogen gas has a straight flame with good collectivity so that will get a small kerf and a flat cutting surface.

The Oxy-hydrogen gas, which is non-toxic, would not harm the staff's health. There is no pollution after burning. It accord with environmental protection requirement make hydrogen by electrolyzing water is low cost, safe, reliable and not limited by region. Therefore, the usage of Oxy-hydrogen meets the request of green plants construction.


Advantages of our oxyhydrogen cutting machine?

 Save time & money
No acetylene, no propane, no oil, just water for metal cutting .The temperature of the oxyhydrogen flame is up to 2800 degrees Celsius, and the flame is more concentrated. Compared with conventional fuel, more save time and cost.

 Small incision
The oxy hydrogen flame is concentrated , and fire point is precise.

 Safety and Pro-environment
Because the density of hydrogen is small, will not assembled on the ground,so there is no risk of explosion; designed 3 Alert trigger system, whole process is clean, no pollution.

 Convenient and High-tech
With the latest technologies, It is able to cut 50-500mm,and easy to use.

 Low carbon environmental protection
The all cutting process is just consume water, 1 litre water can produce 1860 litre oxy-hydrogen gas.consume about 4KW/H,oxy-hydrogen gas is no color,no taste,no harm ,no CO,no CO2,is very pure.

Model
TOP-3000TOP-5000TOP-7000TOP-10000
Voltage(V)380  ±10%,50/60Hz,three phase
Rated capacity(KVA)9152231
Working pressure(Mpa)≤0.2
Relative humidity(%)≤90
Rated gas output(L/H)3000±10%5000±10%7000±10%10000±10%
Water consumption(L/H)1.62.73.85.8
Maximum Cutting Thickness(mm)110220310420
Effective perforated thickness(mm)40607090
Cooling wayAir cooling
Insulation classF
power protection gradeIP2S
Flame temperature(T)800-3200 adjustable
Working mediumFiltered water or deionized water or soft water
Workingcontinuous
environment temperature(T)0-40
Dimension(L×W×H)mm1020*770*12701250*830*17201300*930*18201500*930*1940
Weight(KG)293567653894

Prod Model: hhotop-3000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage(V): 380±plusmn;10%,50/60Hz,Three Phase
Working Pressure(MPa): Less Than 0.2
Relative Humidity(%): Less Than 90
Cooling Way: Air Cooling
Insulation Class: F
Power Protection Grade: IP2s
Flame Temperature(T): 800-3200 Adjustable
Working Medium: Filtered Water or Deionized Water or Soft Water
Working: Continuous
Environment Temperature(T): 0-40
Process Usage: CNC Non-Conventional Machine Tools
Movement Method: Point to Point Control
Performance Classification: Economical CNC Machine Tools
Hunan Top Oxy-Hydrogen Generator Co., Ltd. Provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.

Hhotop Oxy-hydrogen generator for boiler only consumes water and electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.

Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc.

Our company has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over our country. Warmly welcome all fields of friends to visit our company and negotiate trade!
