Working Principle:
Electricity flows to the Adjustable Transformer Controller; The alternating current then goes into the Commutator, and transforms into direct current.
The direct current connects to the anode "+", and cathode "-" in the electrolytic cell, to electrolyze water into pure hydrogen and oxygen.
As the Oxyhydrogen gas passes through the filter and pressure detector, the flame device (with antibackfire safety valve) ignites to a temperature between 800 and 3200 degrees centigrade.
It can be used for precision cutting processing equipment, giving results that are economical, reliable, safe, and environmental.
Features:
Ecology and environmental:
The gas generated by our machines can be completely burned without smoke and carbon monoxide. Therefore, pollution, toxins and public nuisance won't be generated.
High standards of safety:
Consistent torch - the energy is available as soon as you turn on the machine.
Multiple safety devices are built-in.
When insufficient water or coolant is present, or when overheated, the machine will cut off automatically, thus ensuring the safety of equipment and users alike.
Economy and practicality:
Requires only easily accessible soft water and a small amount of electric power.
The fuel produced can be widely applied, replacing traditional dangerous gases (including LPG and acetylene) currently used.
Most existing equipment can be used with our generators.
High Mobility:
The machine size is appropriate for its job, and many of our Oxyhydrogen generators come installed with wheels to facilitate mobility.
Each can immediately generate fuel after a minimum set-up, and be used for long periods.
NO Heat Waste:
Eliminates heat waste and radiation. Maintaining a consistent working environment, thus preventing operator fatigue due to radiant heat.
This can reduce operating costs and accidents.
Steel Thickness | Acetylene | Kingkar Brown gas Generator | Efficiency |
Consumption (NL/min) | Cost ($NT) | Time Min.'Sec." | Electricity (Kwh) | Coolant (cc) | Cost($NT) | Time Min.'Sec." |
6mm | 4 | 1.2373 | 2'00" | 0.09 | 35 | 0.892 | 1'52" | 8 seconds faster |
12mm | 9 | 3.253 | 2'20" | 0.155 | 38 | 1.158 | 2'16" | 4 seconds faster |
20mm | 9 | 4.0643 | 2'55" | 0.158 | 38 | 1.167 | 2'30" | 25 seconds faster |
50mm | 13 | 7.88 | 3'55" | 0.221 | 55 | 1.664 | 3'38" | 17 seconds faster |
Technical Data Sheet
Model | Kingkar-3000 | Kingkar-5000 | Kingkar-7000 | Kingkar-10000 |
Voltage(V) | 380 ±10%,50/60Hz,three phase |
Rated capacity(KVA) | 9 | 15 | 22 | 31 |
Working pressure(Mpa) | ≤0.2 |
Relative humidity(%) | ≤90 |
Rated gas output(L/H) | 3000±10% | 5000±10% | 7000±10% | 10000±10% |
Water consumption(L/H) | 1.6 | 2.7 | 3.8 | 5.8 |
Maximum Cutting Thickness(mm) | 110 | 220 | 310 | 420 |
Effective perforated thickness(mm) | 40 | 60 | 70 | 90 |
Cooling way | Air cooling |
Insulation class | F |
power protection grade | IP2S |
Flame temperature(T) | 800-3200 adjustable |
Working medium | Filtered water or deionized water or soft water |
Working | continuous |
environment temperature(T) | 0-40 |
Dimension(L×W×H)mm | 1020*770*1270 | 1250*830*1720 | 1300*930*1820 | 1500*930*1940 |
Weight(KG) | 293 | 567 | 653 | 894 |
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.

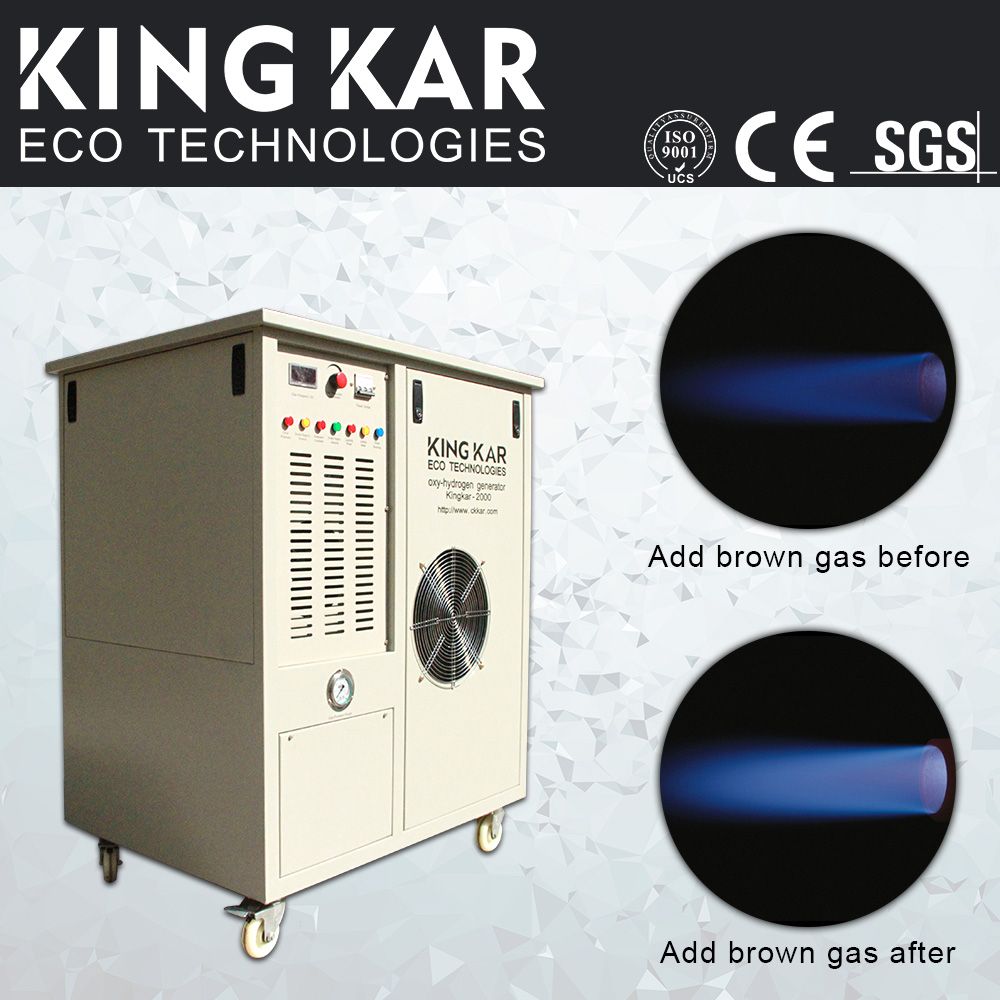

KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
