Home Generator Products Hho Gas Generator for Garbage Incinerator

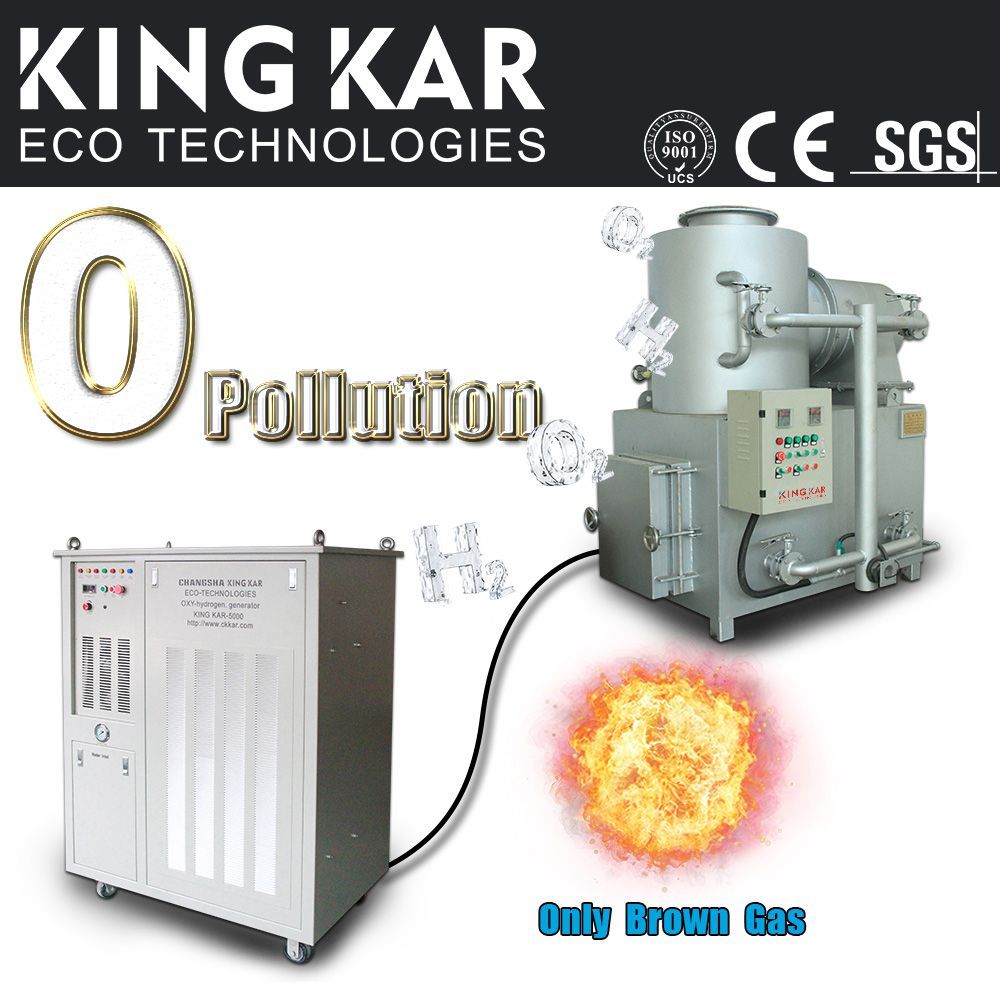

Hho Gas Generator for Garbage Incinerator

Hho Gas Generator for Garbage Incinerator
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Product Description:
Waste incineration is incineration of solid waste equipment, often used in medical and life waste,animal treatment aspects of a sound processing device.Our machine is only need to use the oxy-hydrogen generator and electricity,objects of high temperature burning to be addressed in order to achieve the aim to disinfection(Does not require fuel).It features unique and advanced merits with high burning effect, reasonable burning technology, high degree of non-harm etc.It is an ideal choice for waste treatment of hospitals, hotels and various areas.

Features:
1. Zero Pollution.
2. No Secondary Pollution.
3. Does not require fuel.
4. Capacity reduction effect is good.(Reduce capacity 80% ~ 90%)
5. Full realization of waste resources disposal .
6. Transform the chemical energy to electric energy conversion.(Waste to treasure)
7. Process speed fast,large capacity.
8. Small occupation area.

 Technical Parameters:

                          KINGKAR-WI-50 Waste Incinerator

NO.ItemSpecification
Incinerator
1Burning capacity20~30kg/time (3-6 times/day)
2Incinerator size1.45m*0.9m*1.75m
3Volume of incinerator1st combustion chamber 0.3m³; 2nd combustion
chamber 0.2m³; mixed chamber 0.03 m³


4Size of waste inlet hole480mm*600mm
5ChimneyOuter diameter 280mm
6Air blower0.37kw
7Combustion burner0.11kw, fuel consumption 4-6kg/h
8Re-combustion burner0.11kw, fuel consumption 4-6kg/h
9Running-voltage220V /380V/customized
10Weight(kg)About 2300kg
Oxy-hydrogen generator
11Voltage(V)380±10%,50/60Hz,three phase
12Rated capacity(KVA)15
13Working pressure(Mpa)≤0.2
14Relative humidity(%)≤90
15Rated gas output (L/H)5000±10%
16Water consumption (L/H)2.7
17Cooling wayAir cooling
18Insulation classF
19Power protection gradeIP2S
20Flame temperature(ºC)800-3200 adjustable
21Working mediumFiltered water or deionized water or soft water
22WorkingContinuous
23Environment temperature(ºC)0-40
24Dimension(L/W/H)mm1250*830*1720*
25Weight(KG)567


Prod Model: KINGKAR-WI-50
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Burning Capacity: 20~30kg/Time (3-6 Times/Day)
Incinerator Size: 1.45m*0.9m*1.75m
Size Of Waste Inlet Hole: 480mm*600mm
Chimney: Outer Diameter 280mm
Air Blower: 0.37kw
Combustion Burner: 0.11kw, Fuel Consumption 4-6kg/H
Re-Combustion Burner: 0.11kw, Fuel Consumption 4-6kg/H
Running-Voltage: 220V /380V/Customized
Rated Gas Output (L/H): 5000±10%
Water Consumption (L/H): 2.7
Gas Source: Natural Gas
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.



KingKar Oxy-hydrogen generator for boiler only consumes water

And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.

Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial   And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
