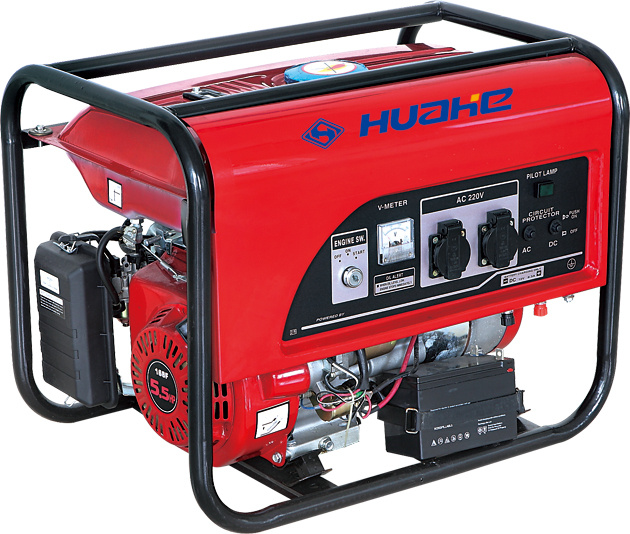

HH3200 CE Generator Manufacture Gasoline Generator (3KW, 4KW, 5KW)
This unit has an output of 3200Watt/4500Watt/5500Watt surge and 3000Watt/4000Watt/5000Watt running power. It has a powerful 9HP/11HP/13HP 270cc/337cc/389cc 4 Stroke OHV engine with a recoil and electric start feature (Key start). The engine has heavy duty cast iron sleeves for long life. Includes heavy duty 1 inch rolled tube steel design with double bar top frame protection. If you choose portable equipment, the unit has large solid wheels, with easy to pull fold down handle. You will be able to safely run all your high tech electronics. With the large 6.6 gallon fuel tank your generator will run for almost 11 hrs under 50% power load.
Specification:
|
Generator |
Rated frequency (Hz): |
50 |
60 |
|
Rated voltage (V): |
220 |
110 |
|
Rated output power (kW): |
3.0/4.0/5.0 |
3.0/4.0/5.0 |
|
Max output power (kW): |
3.5/4.5/5.5 |
3.5/4.5/5.5 |
|
Rated rotation speed (rpm): |
3000 |
3600 |
|
DC output: |
12V 8A |
|
Power factor cos: |
1 |
|
Phase number : |
Single phase |
|
Noise level dB (A)/7m |
72/73/74 |
|
Fule tank[L]: |
25 |
|
Set |
Overall dimensions [mm] ( L x W x H ): |
680*520*540 |
|
N.W[Kg]: |
65/78/86 |
|
Engine |
Engine model: |
HH177/HH182/HH188 |
|
Engine type: |
single cylinder, 4-stroke, air-cooled, OHV, gasoline engine |
|
Displacement [cc]: |
242/237/389 |
|
Compression ratio: |
8.5:1 |
|
Rated power [(HP]: |
9.0/11.0/13.0 |
|
Rated rotation speed (rpm): |
3600 |
|
Starting system: |
recoil starter / electric start |
|
Low oil alarm system : |
With |
Huahe Heavy Industries Co., Ltd.lies in the land scape shore of east see of China----jinqing town luqiao dstrict taizhou city, it is a key base in producting electrical generator in China presently. The company was founded in 1990, managerial philosophy of company is that"take person with ability as basement, develop and try to be practical, quality first, service intensive"and the spirt of onterpriseis that"hold together and innovation, keep on aggressiveness, pursue superiority", it will make the company to explode constantly and is has passed ISO9001: 2000 quality system ceritfcation, CE.
Company has possessed 600 employess, over 68manag. Ement personnel and 22 technicians since is was founded. Inwhich junior college graduatre account for 90%, average ages of employees is 28 years, area of factory building is 20000sq. Meter annusi value of production is 80 milions yuan and have three modemization production line and advanced equipment and perfct monitor and measunng device as puncher, driller, lathe, measurig truck, cutter, shielded welder and pipe bendin machine. Main production of company are all kinds of generators, both petrol and dlesel series, water umps, luggage rack of vehicle, bumper, fuel tankall kinds of motorcycle rack, Auto Majhong Machine and WHD series of dlecmolishde vehide, wide varieties, a complete range of specification. The products have stable qusity and advanced.
Technology and sell well in Japan, America, Euripe, Southeast Asia etccountries and regions. President Mr. Shi HePing heads all staff members of company to welcome you warmly to visit and call for inquiry. Let us join hands to initiate right future together.
