Hfo Power Plant 5mw (2X2.5MW) Hfo/Diesel Genset
| Price: |
Negotiable/Piece |
| Trade Terms: |
others |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

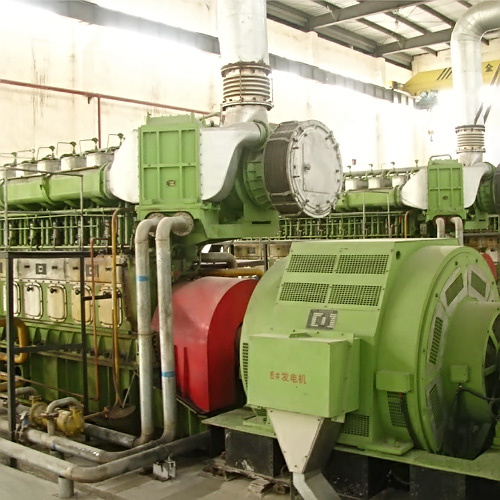

5MW(2X2.5MW) HFO power plant (HFO/DIESEL GENSET), which produced by
AVESPEED NEW ENERGY GROUP Co., LIMITED. 2 units of 2.5mw HFO/diesel generator set in parallel.
This have been tested and ran successfully through our experienced projects and go through five years following and maintainance.
|
2.5MW Gen-set technical specification-5MW HFO Power plant (Generator sets) |
|
No. |
Item |
Unit |
Specification |
|
1 |
Model |
|
2500GF |
|
2 |
Rated power |
kW |
2500 |
|
3 |
Rated rev. |
rpm |
600 |
|
4 |
Rated voltage |
V |
AC13800 |
|
5 |
Rated current |
A |
130.7 |
|
6 |
Frequency |
Hz |
50Hz |
|
7 |
Power factor |
|
0.8 (lagging) |
|
8 |
Phase |
|
3-phase |
|
9 |
Voltage fluctuation rate |
% |
±1 |
|
10 |
Frequency (rev.) fluctuation rate |
% |
±0.5 |
|
11 |
Stable voltage regulating rate |
% |
±2.5 |
|
12 |
Stable frequency (rev.) regulating rate |
% |
5 |
|
13 |
Transientvoltageregulating rate |
% |
±20--15 |
|
14 |
Stabilizing time |
s |
5 |
|
15 |
Voltage regulating method |
|
Auto |
|
16 |
Speed Governor |
|
Electronic hydraulic |
|
17 |
Frequency regulating method |
|
Manual/Auto |
|
18 |
Lubricating method |
|
Pressure lubricating |
|
19 |
Cooling method |
|
Closecircuit of cooling water |
|
20 |
Coupling |
|
Flexiable |
|
21 |
Painting color |
|
Munsel 7.5GB |
|
22 |
Overall dimension |
mm |
8552x2200x3348 |
|
23 |
Net weight |
kg |
48000 |
|
B. Diesel engine specification |
|
No. |
Item |
Unit |
Specification |
|
1 |
Engine Model |
|
GN8320ZD8 |
|
2 |
Type |
|
In-line, 8-Cyls, four-stroke, direct injection, charged, inter cooled |
|
3 |
Bore |
mm |
320 |
|
4 |
Stroke |
mm |
380 |
|
5 |
Total displacemen |
L |
244.5 |
|
6 |
Mean piston seed |
m/s |
7.6 |
|
7 |
Rated power |
KW |
2648 |
|
8 |
Rated rev. |
rpm |
600 |
|
9 |
Overload (1 hr per 12 hrs) |
kW/rpm |
2912.8/600 |
|
10 |
Mean effective pressure |
Mpa |
2.17 |
|
11 |
Compression ratio |
|
13 |
|
12 |
Rotation direction |
|
Clockwise, viewed from flywheel end. |
|
13 |
Firing order |
|
1-5-7-3-8-4-2-6 |
|
14 |
Specific fuel oil consumption |
g/kW.h |
205 |
|
15 |
Specific Lube oil consumption |
g/kW.h |
1.0g/kW.h |
|
16 |
Smoke |
RB |
≤0.3 |
|
17 |
Noise |
dB(A) |
105 |
|
18 |
Starting method |
|
Compressed air |
|
19 |
Cooling system |
|
Open circuit of water cooling |
|
20 |
Lubricating system |
|
Pressure lubricating |
|
21 |
Fuel oil specification |
|
diesel or 180Cst/50ºC |
|
22 |
Lube oil specification |
|
CD40 |
|
23 |
Piston lifting height |
mm |
2600 |
|
24 |
Overall dimension |
mm |
6180x1835x2917 |
|
25 |
Net weight |
kg |
29000 |
|
C. Alternator specification |
|
No. |
Item |
Unit |
Specification |
|
1 |
Alternator Model |
|
TFW2500-12 |
|
2 |
Type |
|
Brushless marine generator |
|
3 |
Rated power |
kW |
600 |
|
4 |
Rated voltage |
V |
13800 |
|
5 |
Rated current |
A |
130.7 |
|
6 |
Frequency |
Hz |
50 |
|
7 |
Power factor |
|
0.8 (lagging) |
|
8 |
Working condition |
|
Continuous |
|
9 |
Phase and connection |
|
3-phase |
|
10 |
Voltage regulation method |
|
Brushless, self excited |
|
11 |
Insulation Class |
|
F |
|
12 |
Protection Class |
|
IP23 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
