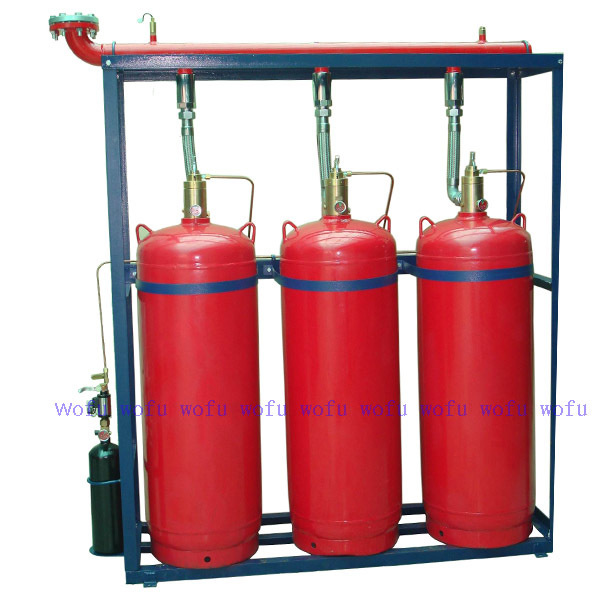

HFC-227ea gas fire protection system
1. System Introduction
HFC-227ea is a clean extinguishing agent, which would completely vaporized in the air, and well
Insulated. Its total flooding mode is applicable to electric fire, liquid fire or fusible solid fire, solid
Surface fire, gas fire which gas supply is cut before extinguishing. And it is able to protect computer
Rooms, communication rooms, substation rooms, hi-tech device rooms, generator rooms, gasoline
Storerooms, combustible chemical storerooms, libraries, data rooms, archives, treasuries, etc. We
Manufacture HFC-227ea system that is well structured, reliable, and widely applied to computer
Rooms, archives, program control exchange engine rooms, TV broadcast center, financial
Organizations and government departments.
2 System Main Technical Parameter
2.1 Storage of cylinder: 40L/70L/100L/120L/150L/180L
2.2 Storage Pressure: 2.5MPa/4.2MPa(20º C)
2.3 Maximum Working Pressure (50º C): 3.4MPa/5.3MPa
2.4 Operating Method: Electromagnetic starter; Emergency mechanical starter
2.5 Nitrogen pressure of the electromagnetic driving device: 6.0± 1.0MPa (20º C)
2.6 Starter power of the electromagnetic driving device: DC24V/1.5A
2.7 Extinguishing agent filling density: ≤ 1150kg/m3
2.8 Extinguishing agent spurting time: ≤ 8s
2.9 Protective Area Temperature: 0º C~50º C
2.9 Cylinder spurting allowance: ≤ 2kg/bottle
2.10 Cylinder-room temperature requirement: -10º C~50º C
Wofu Fire & Security Yongzhou Company specializes in the design, manufacturing and installation various of fire-fighting and security equipment accessories from 2000. Main products: DCP & CO2 & AFFF Foam & Water Stainless Fire Extinguisher, with CE and EN approval; Fire Extinguisher Accessories, Portable Fire Extinguisher, Wheeled Extinguisher, Suspended Automatic Fire Extinguisher. Capacity Size: 1kg -2kg -3kg -4kg -5kg -6kg -8kg-9kg-12kg, 20kg -25kg -50kg -70kg-100kg. HFC Fire Suppression System, CO2, Foam bladder tank Fire Extinguishing System, Water Sprinkler and Fire Alarm System, Fire Hydrant and Lading Valve, etc. Our products passed strict inspections of the National Fire-fighting Testing Center. Popular be sold in many countries and area, such European, Africa, Southeast Asia, and the Middle East, South Africa and South American, etc. Exceed 30 countries and areas begin to cooperate with us for more quality goods and get more profit business from the good price
