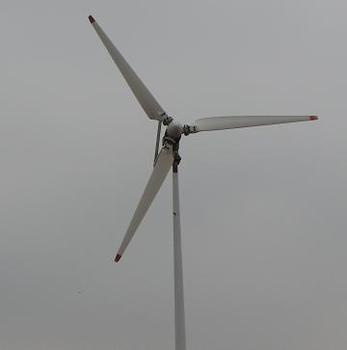

Model FZY1KW Rotor diameter 2.8m
Blades quantity 3 PCS Blades material FRP (composite material)
Rated speed 360r/min Rated output power 1KW
Max output power 1500W Output voltage DC24V/48V/AC220V
Start wind speed 3m/s Rated wind speed 8m/s
Working wind speed 3-25m/s Security wind speed 40m/s
Speed regulation yaw& magnetic resistance Charge control AIC (automatic intelligent control)
Wind turbine type PMG (Permanent Magnet Generator) Working temperature from -40 to +60
Annual average energy production 2500kWh Recommended accumulators 12V150AH4PCS( 600Ah )
Accumulators full charge time about 8 hours Tower type pull wire tubular tower or cone tower(optinal)
Tower height 6m (optional) Weight 45kgs (without tower)
CAN SUPPLY POWER FOR water pump. TV. Washer. Illumine. Fanner. Charge
Qingdao Windwings Wind Turbine Co., Ltd., located in a nice coastal city called Jiaonan is a hi-tech company specialized in research & development, production, sales and service of medium and small wind turbines and devoted to development and utilization of natural environmental protection energy such as wind energy, solar energy, etc.
The main products of this company include off-grid and grid-connected wind turbines, wind turbine blades and wind solar lighting system widely used in agricultural and pastoral areas, mountainous areas, islands, frontier defence sentries and observatories with no electricity or insufficient electricity and rich wind resources.
This company has advanced equipment and manufacture process, complete quality management system and excellent technical team to provide high quality and environmental protection products and improved power supply solution and first-class after-sales service for customers.
The products are made of high-stability ND-Fe-B materials. The specific outer rotor magnetic circuit is designed in a way that the products have high generating efficiency, light weight, low starting torque, appealing appearance, easy installation and higher electric performance and use performance than the kindred products.
Under the tenet "Credit, Respect, Excellence and Share" and marketing belief "Quality is the basis of existence Basis, a Science & technology are the road of development", , this company is devoted to development of wind solar energy and building international brand. The products of this company are sold to Asia, Europe, Africa, America, etc.
Qingdao Windwings Wind Turbine Co., Ltd. is specialized in green energy industry with bright prospect, so this company would like to cooperate with the friends from all over the world and give green brightness to every friend who cares about environmental protection type new energy. It welcomes every friend from all circles to Qingdao Windwings Wind Turbine Co., Ltd. For a visit, instruction and business negotiation.
