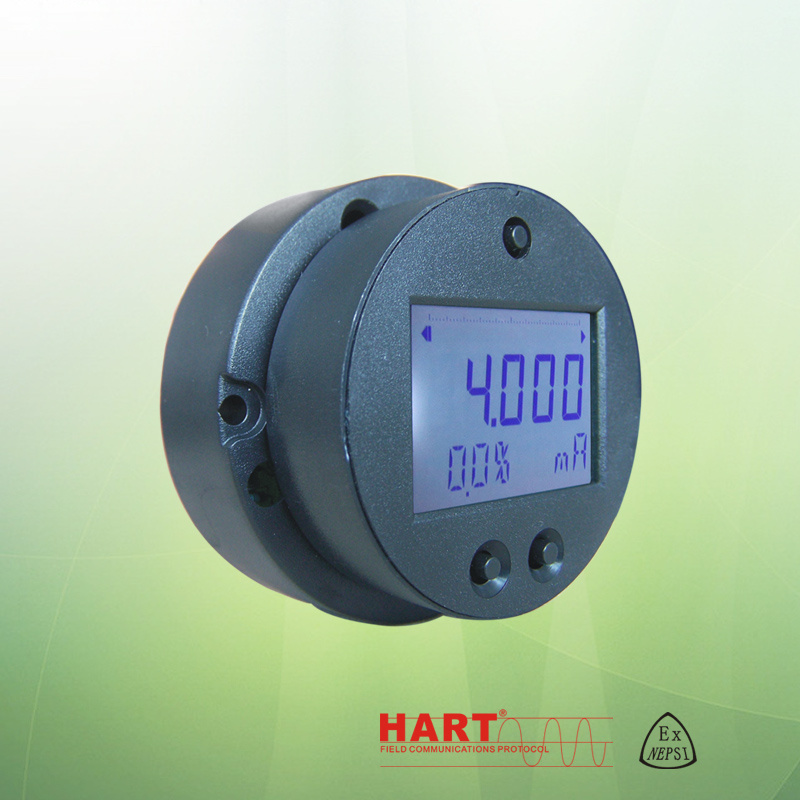

HART pressure module(SE62H)
Introduction:
Input: All of toxic and electrochemical gas sensors and pressure sensor, load cell, strain gauge, magnetic field sensor, differential pressure sensor, resistor of 2/3/4 wires etc.
Specifications:
1. Operation: PC programmable or PDA
2. Operating temperature range: -40-85deg
3. Humidity (non-condensing): 0 to 95%RH
Technology:
* Dimensions: 19.2*35mm
* Multifunction solution for gas, pressure, level, load cell, strain gauge and magnetic field sensor and etc
* Minimized structure style (others on request)
* Freely linearity and temperature compensation
* Excellent stability
* Convenient installation and operation
* High accuracy, fast response
* Excellent EMC performance
|
Output: |
4 to 20mA |
|
Supply voltage: |
9 to 45VDC |
|
Input: |
RTD, TC, Ohm, mV |
|
Galvanic isolation(Input/Output): |
2000VAC |
|
Cold junction: |
Internal |
|
Operation: |
HART-prtocol |
|
Resolution: |
0.3uA |
|
Power supply influence: |
Negligible |
|
Load influence: |
Negligible |
SENSE Instruments Co., Ltd.Is a professional high-tech company, which always specialize in researching, manufacture and sales temperature transmitter, pressure transmitter, digital circuit board, HART-protocol circuit board, and pressure sensors.We also take up with sales the high quality fittings for automation instruments.
We have strong ability of R&D.And we have researched and manufactured new type smart products, its capability has reached one-up level of the world.SENSE has know-how, and can provide OEM products, customizes to your specific requirements ensuring your success in the marketplace.
with the increasing market, some of the products are exported to Taiwan, Southeast Asia, Europe and other countries and regions.Along with the new products were developing ceaselessly and more and more products were pushed into the market, the trademark of SENSE was known by many customers.
