Generator Manufacturers and Factories

Home Generator Products Guangzhou 30kVA Four Stock Water Cooling Three Phase Silent Cummins Diesel Generator

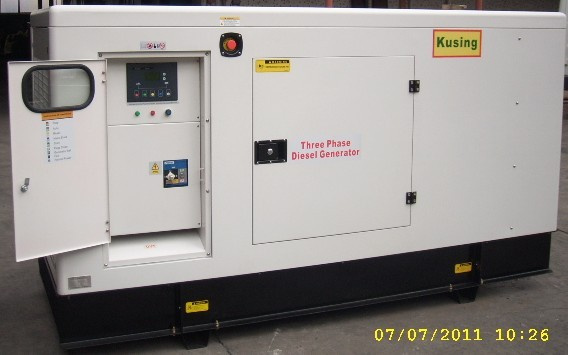

Guangzhou 30kVA Four Stock Water Cooling Three Phase Silent Cummins Diesel Generator

Guangzhou 30kVA Four Stock Water Cooling Three Phase Silent Cummins Diesel Generator
Price: US $ 7700/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1set
Pay Type: L/C,T/T,Western Union
KUSING GENERATOR SET TECHNICAL DESCRIPTION

1. KUSING diesel generator sets comply with the newest national and international standard.
2. The diesel engines KUSING use are famous brand with high quality, such as CUMMINS, VOLVO, ISUZU, LOVOL, YTO, YANGDONG, SDEC, etc; All of them have a 4-stroke, direct injection system, electric start mode and water-cooling system; They will make the generator sets work more economically, reliably and durably.
3. The alternators KUSING use are also famous brand with high quality, such as MARTHON, LEROY SOMER, STAMFORD, EVO-TEC ENGLA etc; They are brushless, self-excited and 4 single-bearing structure with protection grade IP21-IP23 and insulation class H.
4. KUSING silent type generator sets will be mounted with a canopy; It is designed by us with the advanced soundproof technology, which can greatly reduce the noise level to 60-70dB(A) or even lower.
5. The industrial silencer system of KUSING works highly efficiently.
6. A seperated plastic fuel tank is equiped inside the generator, which can keep the fuel fine and safe.
7. All the KUSING generator sets have a anti-vibrated system.
8. The multi-functional LED controller with MFC make the operation of generator set more easily and safely.
9. If a ATS(Automatic Transfer Switch) is mounted, the generator set can running without operation by hand and charge battery by normal power.
10. The output of KUSING generator sets range from 10KVA to 2000KVA.
Warranty:
We offer the free spare part with the generator together  for 1000 hours using.12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
Power generator use of safety norms:
1.Operators sould be familiar with the operation of generating units, operating methods, and all control bodies, manual valves, stopping body position.
2.In the engine room or near the unit, must hoisting of danger notices warning signs associated personnel:
(1)Uints exist electric shocks danger;
(2)Uints exist scald danger;
(3)Units exist winding, and collision dangers;
3.To avoid fuel, lubricants, and other fire, engine room No smoking.
4.Engine room or other nearest shouldmaintain an appropriate level of fire service equipment (proposed CO2 fire extinguishers).
5.Grounding the entire unit reliably, and meet the applicable requirements of neutral grounding.
6.Above and around the unit should not be unrelated equipment, obstructions and dangerous goods, should be keeping the floor dry and clean without oil.
7.Units will be run by noise, suggest that the staff wear suitable protective equipment, such as earmuffs vehicles.
8.Before any maintenance, must cut off all power lines, particularly the Dcpower supply circuit (remove the battery's anode and cathode), the warning signs must also note "is maintenance", and should have another concern, especially in the narrow region maintenance at the same time should be nitified stop all of this unit operation.
9.To the reliable operation of unit, the settings of unit voltage, frequency, speed and other related parameters and unit controller set up should not be arbitrarily changed except the specialized operators.
10.Units are valuable equipment, for personal safety, operation stability to light, no illegal operation and drink operation.
Control Systems
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
AMF Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.
ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically;
While main power resumes balanced, it controls the generator set to shut down after cooled.
Engine
*Heavy duty diesel engine
*Four stroke, water cooled
*12V and 24V stater and charge alternator
*Cooling radiator and fan
*Maintenance free battery including ract and cable
*Flexible fuel connection hoses and manual oil sump drain valve
*Exhaust silencer
Alternator
*Brushless, single bearing, flexible disc
*Insulation class: H
*Protection class: IP23
*Self-exciting and Self-regulation
Canopy
*All canopy designed with modular principles
*All metal canopy parts painted by electrostatic polyester power paint
*Soundproof design ensure that the noise level be controlled in small scope
*Convenient to lift and move
*Easy to maintenance and operate
Base Frame
*Base frame including position for forklift and crane
*Integral fuel tank
*Daily fuel tank continuously supply for 8-24 hours
*Fuel tank easy to maintain and clean
*Anti-vibration pads are flexed between engine and alternator.
 Control System
*Control, monitor and protect the Generator Set including:
*High water temperature
*Low oil pressure
*Over and under speed
*Over current
*Under/Over generator voltage
*Start and stop failure
*Low and high battery voltage
*Charge fail
*Emergency stop
Model CK30200
Phase3 Phase
Power Factor0.8cosØ
Frequency50HZ60HZ
SpeedRPM15001800
Max. Power     KVA32.534
KW2628
Rated Power       KVA3030
KW2424
Rated Voltage    V400400
Rated Current         A6572
Fuel Consumption G/KW.H≤214
Generator Controller              Auto Multi-function
Engine Model.                           4B3.9-G2
Alternator       TCU-188D
Clinder No.      4/L
Starting SystemElectric Start
Cooling MethodWater-cooling
Protection GradeIP21-IP23
Insulation ClassH
Size  (MM)Silent Type2300*1100*1250
Open Type1700*850*1080
OptionalATS (auto transfer switch)
 Pls contact me by free:
Jack Wu

Mobile:86-15202047502
TEL:86-20-87428540   FAX:86-20-87422241
Sale: No. 2 of Heng An Road, Xiatang Xi, Yuexiu District, GuangZhou  (Next to New DengFeng Hotel) Postcode:510091
Website:www.cnkusing.net
Prod Model: CK30200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine: Cummins
Alternator: German Evo Tec, Leroy Somer, Stamford, Marathon
Fuel Tank: Bsae for 8 Hours Continuous Running
Generator Controller: Auto Multi-Function
Protection Grade: IP21-IP23
Insulation Class: H
Hz: 50/60
Phase: 1/3
Silent Size: 2300*1100*1250
Open Size: 1700*850*1080
Type: Micro-Computer Control Automatic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Guangzhou Kusing Generator Co., Ltd is a professional manufacturer of generator sets, which produces diesel generator sets range from 10kVA to 2000kVA. Kusing has a modern facory covering more than 6000m2, located in Guangzhou(Canton), Guangdong province, China. The products of Kusing are winning more and more customers' approval and favor, and are widely applied to hotel, highway construction, mining, oil exploration, disaster relief etc. all over the world.

'Humanity, innovation, efficiency, perfection' is the belief of Kusing. We have a distinguished R&D team, which is made up of designers, engineers and technicians. To ensure the quality of products, we manufacture all the generating sets according to the International Quality of Certification: ISO9001: 2000. Our production have been with SON-CAP Certification & SASO Certification. For each new order we recieve, we will strictly apply the manufacturing steps as follows: 1st, making a production plan; 2ND, technology designing, 3rd, supporting the procurement, 4th, manufacturing, 5th, performance controlling, 6th, testing, 7th, packing and warehousing. With convincing quality, Kusing products endue generators 'Made in China' with a new implication-'European quality with competitive price'.

Kusing has steady and long-term cooperation with famous companies, such as engine: CUMMINS, PERKINS, LOVOL, Volvo, YTO, SDEC, YANGDONG, WUDONG, KOFO etc., alternator: STAMFORD, MARTHON\LEROY SOMER, EVO-TEC, ENGGA, etc. The above engines give the diesel generator sets we made a strong and stable heart. And the high quality brushless alternators ensure the generators to supply electricty safely and stably for a long time. Nowadays, with great enthusiasm and persistence efforts, all Kusing members are working toward the goal of being one of leading enterprise in the international lines. Warmly welcome people from all over the world to visit our company and cooperate with us!
