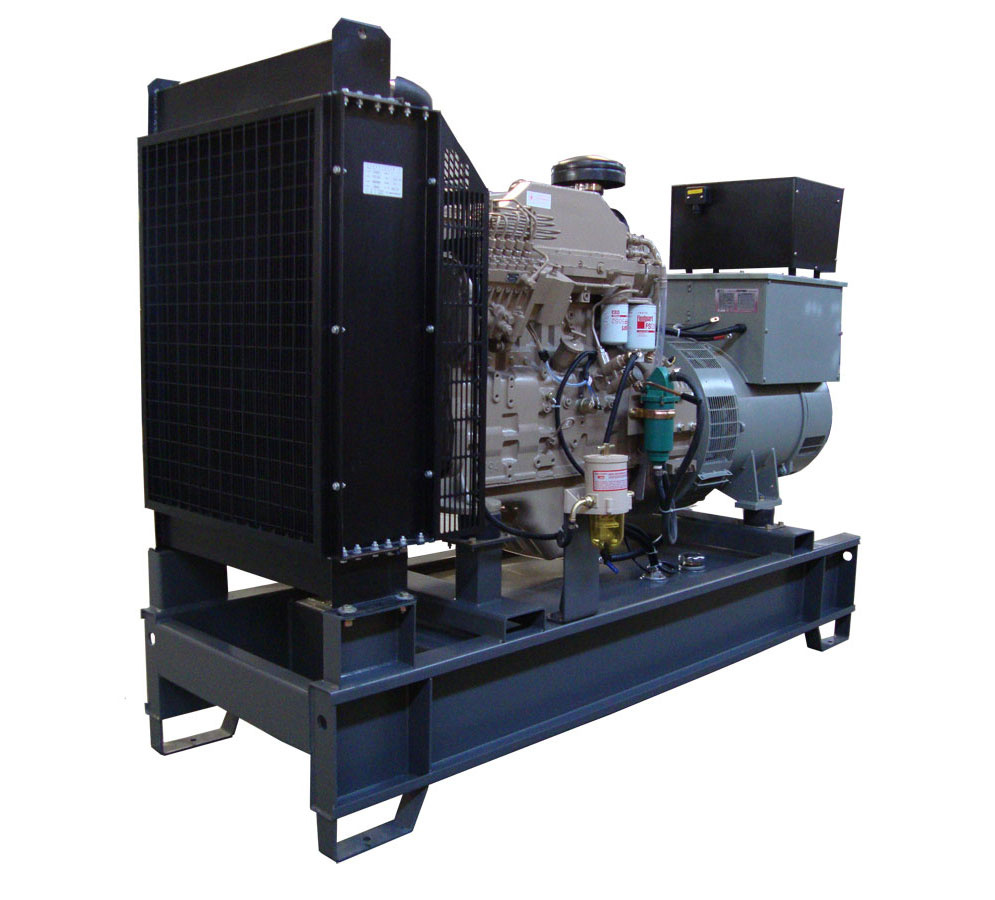

GTL Power generator set
Feature:
1. Engine: Cummins(Chinese)
2. Alternator: Leroy Some, Stamford or Marathon
3. Rated Voltage: 50Hz: 400/230V, 60Hz: 480/277V
4. Three-phase voltage available: 480/277v, 440/254v, 416/240v, 220/127v, 207/120v
5. Power range: 20KW-200KW(25KVA-250KVA)
6. Rated Frequency: 50Hz/60Hz
7. Rated speed: 1500RPM/1800RPM
8. Excitation Way: Brushless Excitation
9. Inspiration Method: Natural aspirated or Turbocharged
10. Cooling Method: Water-cooled
11. Governor Method: Electrical or Mechanical governor
12: Cylinder: 4L-12V
13. Phase: Three phase, four wires
14. Protection: IP23
15. Insulation Class: H
16. AMF, ATS, Soundproof canopy and movable trailers for Choices.
17. Packing: As per customers requirements.
Keywords: Cummins generator, diesel generator, diesel generator set, power generator, power generator set, generator set, generating set, diesel genset, power genset, cummins diesel genset, cummins diesel generating
1500 rmp/400v 3P 4W/50HZ/0.8F |
Engine specifications |
Dimensions & Weight |
Model |
PRP |
LTP |
Open type |
KVA |
KW |
KVA |
KW |
Engine type |
Cylinder |
Bore
(mm) |
Stroke
(mm) |
Dimensions
(mm) |
N.G.
(kg) |
DCW-25 |
25 |
20 |
28 |
22 |
4B3.9-G1 |
4L |
102 |
120 |
1650×730×1400 |
660 |
DCW-25 |
25 |
20 |
28 |
22 |
4B3.9-G2 |
4L |
102 |
120 |
1650×730×1400 |
660 |
DCW-38 |
38 |
30 |
41 |
33 |
4BT3.9-G1 |
4L |
102 |
120 |
1680×730×1400 |
690 |
DCW-38 |
38 |
30 |
41 |
33 |
4BT3.9-G2 |
4L |
102 |
120 |
1680×730×1400 |
690 |
DCW-50 |
50 |
40 |
55 |
44 |
4BTA3.9-G2 |
4L |
102 |
120 |
1865×730×1400 |
795 |
DCW-85 |
85 |
68 |
94 |
75 |
6BT5.9-G1 |
6L |
102 |
120 |
2150×830×1450 |
900 |
DCW-94 |
94 |
75 |
103 |
83 |
6BT5.9-G1 |
6L |
102 |
120 |
2150×830×1450 |
900 |
DCW-94 |
94 |
75 |
103 |
83 |
6BT5.9-G2 |
6L |
102 |
120 |
2150×830×1450 |
900 |
DCW-105 |
105 |
84 |
116 |
92 |
6BTA5.9-G2 |
6L |
102 |
120 |
2150×830×1450 |
900 |
DCW-130 |
130 |
104 |
143 |
114 |
6BTAA5.9-G2 |
6L |
102 |
120 |
2350×800×1520 |
900 |
DCW-150 |
150 |
120 |
165 |
132 |
6CTA8.3-G2 |
6L |
114 |
135 |
2360×800×1600 |
1180 |
DCW-180 |
180 |
144 |
198 |
158 |
6CTA8.3-G2 |
6L |
114 |
135 |
2360×800×1600 |
1300 |
DCW-200 |
200 |
160 |
220 |
176 |
6CTAA8.3-G2 |
6L |
114 |
135 |
2400×950×1650 |
1420 |
DCW-250 |
250 |
200 |
275 |
220 |
6LTAA8.9-G2 |
6L |
114 |
135 |
2600×950×1700 |
1560 |
|
|
|
|
|
|
|
|
|
|
|
CCW-250 |
250 |
200 |
275 |
220 |
NT855-GA |
6L |
140 |
152 |
2950×950×1650 |
2100 |
CCW-275 |
275 |
220 |
303 |
242 |
NTA855-G1A |
6L |
140 |
152 |
2950×950×1650 |
2150 |
CCW-313 |
313 |
250 |
343 |
275 |
NTA855-G1B |
6L |
140 |
152 |
2900×950×1650 |
1900 |
CCW-344 |
344 |
275 |
378 |
303 |
NTA855-G2A |
6L |
140 |
152 |
2950×950×1650 |
2150 |
CCW-375 |
375 |
300 |
413 |
330 |
NTAA855-G7 |
6L |
140 |
152 |
3100×1250×1750 |
2180 |
CCW-400 |
400 |
320 |
440 |
352 |
NTAA855-G7A |
6L |
140 |
152 |
3100×1250×1750 |
2180 |
After 10 years of development, GTL company in energy generator industry has accumulated rich experience in manufacturing, the leading status. Headquarters is located in Xiamen, China.
Here, design, manufacture and sales of GTL brand series products and related technologies, and through the agency of global each country dealer network to provide customers with technical service. Products are widely used in office building, hospital, factories, municipal, power plants, university, entertainment. Besides, GTL can also according to customer special power needs to provide specific solutions for various industries and provide efficient and reliable electricity.
GTL production base in xiamen strictly enforce the ISO9000 quality and the industry standard, in order to ensure product outstanding quality.
