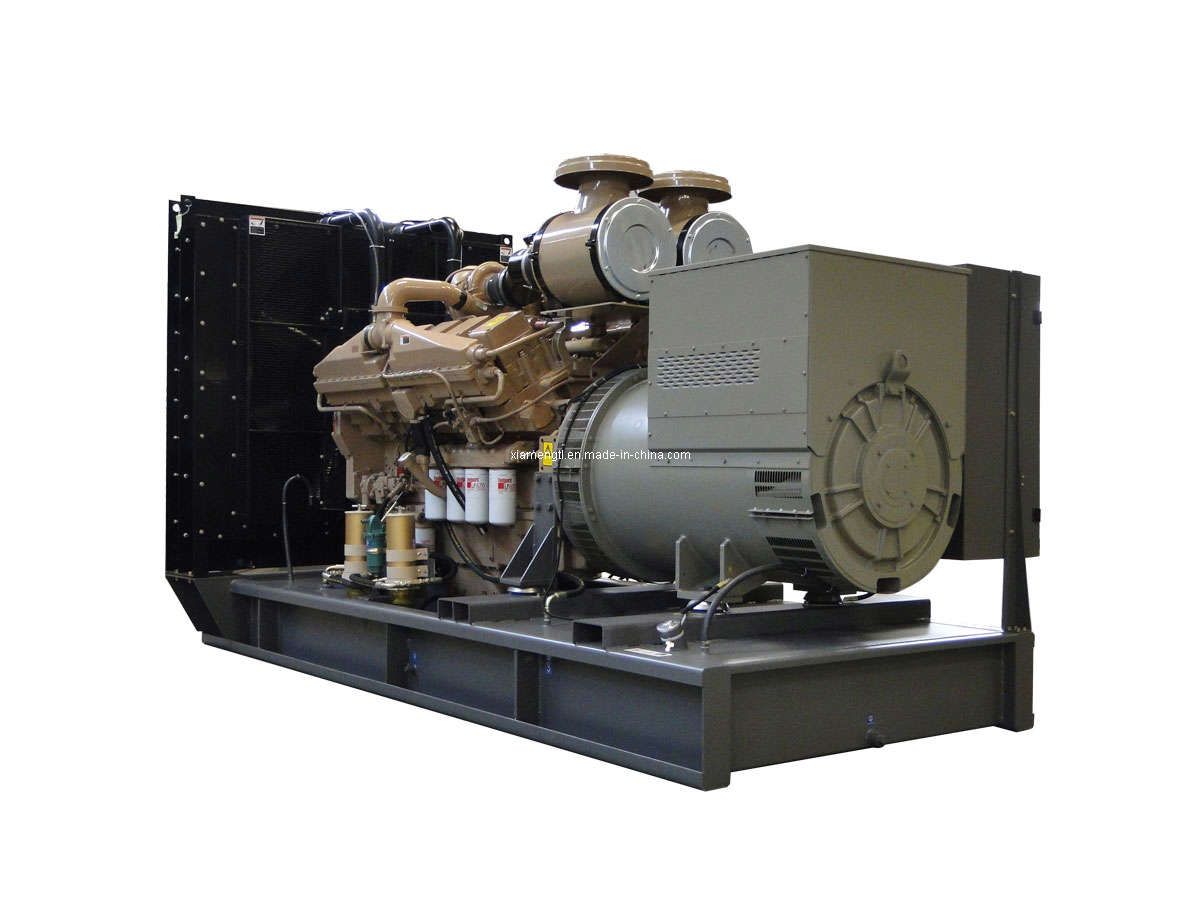

GTL Cummins generator set
Technical Specifications and of Diesel Generator Set:
Techinical data
1. Genset model: GCW
2. Genset output Power range: 20KW~1000KW
3. Rated Voltage: 220/380V, 23/400V, 240/415V, 120/240V
4. Frequency: 50/60Hz
5. Power Factor(COS): 0.8
6. Rated Speed: 1500/1800RPM
7. Output Type: AC Three Phase/Singe Phase
8. Motor: Brushless
Diesel Engine
1. Brand: Cummins
2. Model: 4B, 4BT, 6BT, 6CT, NT, KTA
3. Engine Structure: 6V-12V/6L-16V
4. Cooling Method: Water cooled
5. Rotating Speed: 1500/1800RPM
6. Governor System: Electrical or Mechanical Governor
7. Aspiration mode: Natural aspirated or Turbocharged
8. Starting method: 12/24V DC electric starting
9. Displacement(L): /
10 Stroke: 4 stroke
11. Compression Ratio: /
11.100%load fuel consumption(L/h): /
Alternator
1. Brand: Leroy semor, Stamford, Meccalte, Maraton etc.
2. Model: DCW200T5
3. Regulator: AVR automatic voltage regulating
4. Excite Type: PRET or Shunt
5. Connecting Type: 3PH star, 3PH-DELTA
6. Steady Frequency Change: More or equal to 0-5%
7. No load voltage: More or equal to 95%-105
8. Steady voltage: Less or equal to plus-minus 1
9. Insulation degree: H degree
10 Exclosure degree: IP 23
The components of the genset:
(1)Diesel engine; (2)Generator; (3)Control panel
The Accessories:
Wave pipe, curved pipe, muffler, accumulator and the connecting line, shock-absorbing spacer, and data.
Control panel:
The control panel is GZ6110 control panel, one controller, a key power switch, a DC power indicator.
According to customers requirment, can provide ammeter, voltmeter, frequency tables, etc.
Built-in the fine-tuning knob of speed and voltage can be configured according to customer requirements or pre-warm the engine oil button.
Other features:
Voltage available:
50hz: 200/115, 220/127, 220/110, 230/115, 240/120, 380/220, 400/230, 415/240(200v--690v)
60hz: 480//277, 440/254, 220/127, 240/139, 208/120, 120/240
After 10 years of development, GTL company in energy generator industry has accumulated rich experience in manufacturing, the leading status. Headquarters is located in Xiamen, China.
Here, design, manufacture and sales of GTL brand series products and related technologies, and through the agency of global each country dealer network to provide customers with technical service. Products are widely used in office building, hospital, factories, municipal, power plants, university, entertainment. Besides, GTL can also according to customer special power needs to provide specific solutions for various industries and provide efficient and reliable electricity.
GTL production base in xiamen strictly enforce the ISO9000 quality and the industry standard, in order to ensure product outstanding quality.
