GSM Base Station Power Supply System in DC

GSM Base Station Power Supply System in DC
Price: US $ 9000-10000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

GSM BTS STATION POWER SUPPLY
Working principle

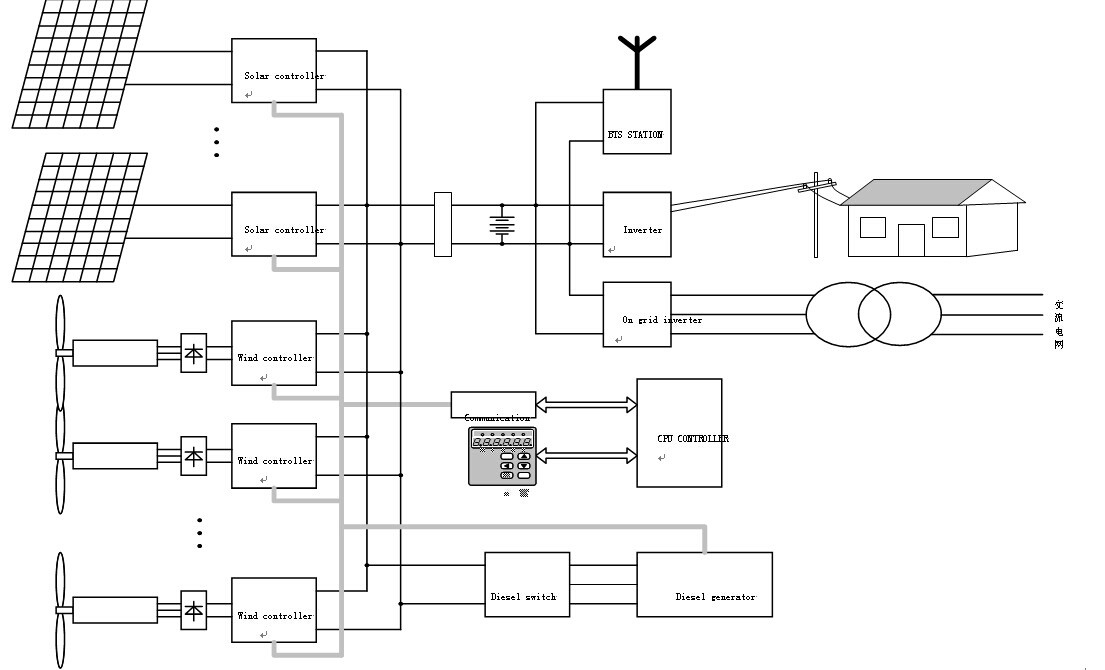

Wind turbine and solar panel generate electricity, charge into DC48 battery group through 48V wind and solar hybrid controller, supply power for GSM base station loads
System configuration
1 Wind turbine
2 Tower and accessory
3 DC controller
4 Battery group
System advantage
1 Suitable for all kinds of GSM base station of world, decrease system cost
2 overcome the scattered distribution of GSM base station, omnibearing cover
3. System has extensibility, reproducible world-wide
Application area

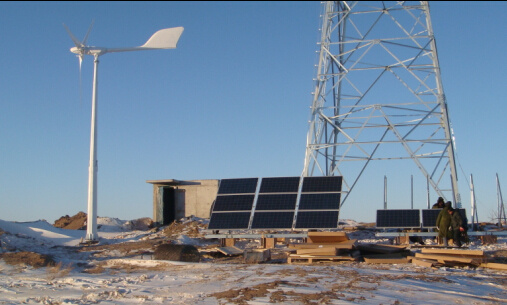

Signal station, GSM base station and so on.


  Wind solar hybrid system
Specifications

wind turbine 1. 30% more electricity
2. Pitch controlled
3. Auto brake
4. Maintenance free
5. Low start-up wind speed

ANE wind turbine advantages

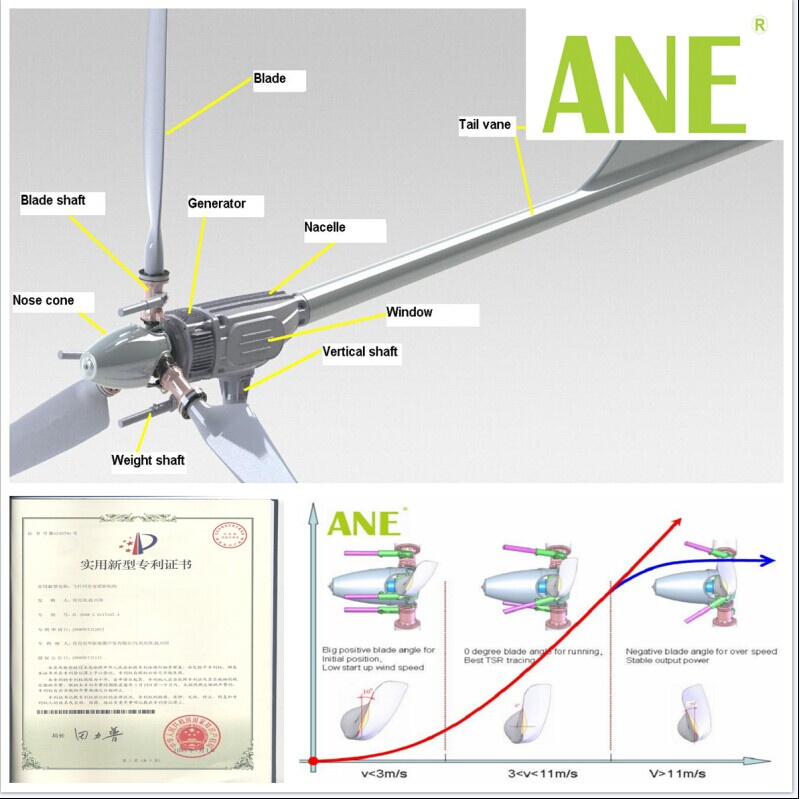

1. Leading centrifugal pitch control technology

Anhua pitch controlled wind turbine, is a patented product and pioneer in China. The self-developed centrifugal pitch controlled mechanism of Wind turbine adjusts blade pitch following wind rotor rotating speed, and keep wind turbine at rated rotating speed. The wind turbine has a stable output power and safe running and is maintenance free.



2. Auto protection system: APS System

Anhua auto protection system, is selfdeveloped system. When wind speed is over 30m/s or output votlage is over rated, protection system will stop wind turbine, when wind speed is suitable, it will release wind turbine again



3. Blade technology:

Choose aerofoil through wind tunnel test, optimize design according to aerodynamics, self design and manufactured blade vAnhua wind turbine blade has high efficiency and wide TSR. ANE blade has passed the strict test in Denmark, and has got Danish proval.



4. Generator technology:

Direct drive, wind rotor matches PM generator in optimum TSR vHigh efficiency, low start-up torque.

Allow continuous running in over speed and over load condition 1.5 times of rated speed and power

Maintenance free

ANE generator has passed the strict test in Germany. Output power, current and voltage all meet design requirements



5. Installation technology:

tilt-up tower, particular patent technology, save installation cost



6. 30% more electricity generated

ANE double-grade pitch controlled system not only guarantees optimum efficiency of wind rotor, wind turbine safety and steady output power when the wind speed is higher than rated wind speed, but also makes sure the system can trace the optimum tip speed ratio when the wind speed is lower than rated wind speed to make the wind turbine easy startup, good wind rotor efficiency and more power generation at low wind speed zone.





7. Multiple protection measures

Leading eadge protection finishing:reduce 10% wind rotor noise, good anti-corrosion capability, prolong service life effectively.



Perfect wind turbine breath system, let the air flow easily inside wind turbine, avoid generation of condensated water to protect inner component.




AH-10000w Pitch Controlled wind turbine Technical parameters wind solar hybrid system
Wind rotor diameter (m) 7.6m
Blade material and quantity Fiber glass reinforced * 3
Rated power / max power (w) 10000/12000
Rated wind speed (m/s) 12
Rated rotate speed (rpm) 220
Working wind speed (m/s) 3-30
Startup wind speed (m/s) 2.5
Survived wind speed (m/s) 60
Working voltage (v) DC500v    AC220V
Battery voltage / capcity (v, ah)   12*42=500/100
Speed regulation method pitch-controlled
Stop method Manual brake+pitch-controlled
Generator style Three phase, permanent magnet
Wind turbine weight (kg) 450
AAATower height / weight (m/kg) 12/1500
Prod Model: 10KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power: 10kw
Name: Wind Turbine
Material: Fiberglass
Application: Home Use, Residential, Business, Island, Telecom
Delivery: 2weeks
Warranty: 2years
Hybrid: Wind Solar
Rotating Shaft: Horizontal
Number Of Blade: Three Blade
Stress Way Of Blade: Lift Force
Qingdao Anhua New Energy Equipment Co., Ltd. is a national high and new tech enterprise which specializes in small and medium wind turbine design and manufacture. More than 30 years, the company dedicates to small and medium wind turbine whole system R&D and popularization and accumulates rich experience in design and construction.

ANE wind turbines adopt whole self-developed technology; Meanwhile, ANE possesses more than 10 patents such as pitch controlled system, automatic safety protection system, yawing, permanent magnet generator etc...Now, there are three series of products: Diffused-type wind turbine AH-400W; Yawing-size wind turbine AH-500W, AH-1kW, AH-1.5kW and AH-2kW; Pitch controlled wind turbine AH-5kW, AH-10kW and AH-30kW. Every series of products achieve self-protection and running smoothly and safely at gale condition and extending their service life. Thereinto, a series of pitch controlled wind turbines adopts mechnical pitch controlled system and automatic safety protection system, which is pioneered in China and this revolution leads to the whole small and medium wind turbine industry development in the field of pitch controlled technology. ANE becomes the industry leader in the small and medium wind turbine business.

ANE factory covers an area of 5, 000 square meters and occupies the most advanced and self-developed generator test platform, wind rotor balance debug system, pitch controlled system test platform and other various wind turbine specialized detection equipments; Meanwhile, ANE has own test field for small and medium wind turbine. ANE engages well-known wind power expert Professor Zhao Fusheng as General Engineer and meanwhile owns s small and medium wind turbine professional technical team who have strong R&D capability.

ANE has already passed ISO900L Quality Management System and the products have passed CE and EN61400-2 certificate. At home, ANE has cooperated with China Mobile, China Unicom, GUO DIAN Group, State Grid Corporation, Goldwind Science&Technology, BAO LI Group, Da Gang Oild Field, RUI HAO Group, BEI LIANG Group and otherlarge-scale businesses or enterprises, and provides complete system solution for them, and promotes small and medium wind turbine applications in domestic market. Abroad, the products have been passed installation certificate in Germany, Denmark and other countries that are famous for their advanced wind power technology; Meanwhile, bulk products are also purchased in North America, Europe, Australia, Southeast Asia, South Asia, Central Asia and other countries and regions, and have been high praised by the consumers across the world

Qingdao Anhua New Energy Equipment Co., Ltd. is devoting to wind power enterprise development all the time and building the world first-class brand.
