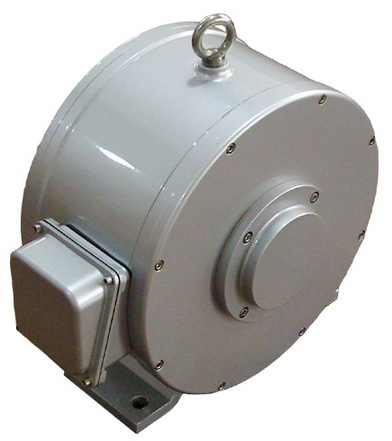

We have successfully producing over thousands of PMGs to European and American customers. Please find the information as below for your interest. Alternatively, We are more than pleased to customise a design for the client to enable a perfect fit to their system requirements. This can be a modification based on one of our existing designs or one could be developed for you from scratch.
Rated Output Power:
0.5kW (Model No. GL-PMG-500A)
1kW (Model No. GL-PMG-1000)
1.5kW (Model No. GL-PMG-1500)
1.8kW (Model No. GL-PMG-1800)
3.5kW (Model No. GL-PMG-3500)
5kW (Model No.: GL-PMG-5K)
7.5kW (Model No.: GL-PMG-7500, rated 10kW at 260 RPM)
12kW (Model No.: GL-PMG-12K)
15kW (Model No.: GL-PMG-15K)
20kW (Model No.: GL-PMG-20K)
30kW (Model No.: GL-PMG-30K)
Features:
*Low start up speed due to low cogging and resistive torque design. Gearless, direct drive, low RPM generator
*High standard, quality components for use in harsh and extreme environments for wind turbines.
*High efficiency, Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure
*Low mechanical resistance energy loss
*High strength from the specially design structure and fully heat treatment Aluminium.
*Generator is designed using specially selected material and treated to resist corrosion and oxidation.
*Designed for reliable and long operational lifetime under long-term full output.
*Designed for 20-year operation life. *Patent protected design
Main specifications:
*Outer frame material High standard Aluminium alloy with TF heat treatment*Outer frame finish Aluminium surface is anodised then power painted for anti-corrosion protection
*Shaft material High standard Stainless Steel, Shaft bearing High standard SKF or NSK bearing
*Fasteners (nuts and bolts) High standard Stainless Steel, Lamination stack High specification cold-rolled Steel
*Windings temperature rating 180 degrees Celsius
*Magnet material NdFeB (Neodymium Iron Boron) temperature rating 150 degree
For more information, please visit our company website.
Ginlong Technologies is one of the world's leading specialists in manufacturing PV/Solar and Wind grid tie inverters, wind turbine permanent magnget generators (alternators) and wind turbine products.
With our machine and electrical products manufacturing background going back over 20 years, we have a team of dedicated engineers experienced in renewable energy, devoted to providing you with top quality, world class wind turbine parts and components, which may be from a standard range or, if the client so chooses, a specially customised design.
