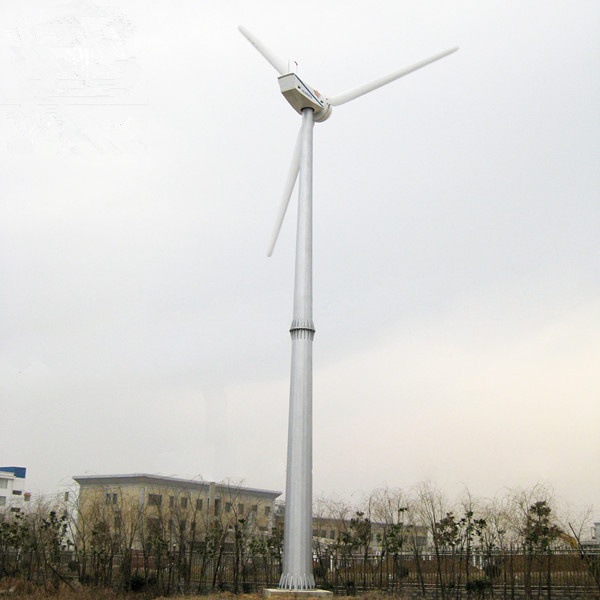

Product features of 50kW wind turbine:
1) Patented technology
Hummer's 50kW wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator's weight and size down to 25% to 30% of the traditional one, and the production efficiency is 25% to 30% higher. This ensures that the generator functions perfectly in small wind condition.
2) Smart control
Hummer 50kW wind turbine's controlling system adopts the smart touch-screen PLC (Programmable Logic Controller) which is integrated with Siemens controlling unit. The PLC will alarm and adjust the abnormal running status of the wind turbine automatically both timely and efficiently. Siemens module offers high reliability to our PLC and its customers worldwide can testify for that.
3) Lower noise
The design of the rotor blade of Hummer 50kW wind turbine absorbs the highlights of the small aircraft's airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.
4) High reliability
Hummer 50kW wind turbine adopts the triple braking protection system, which are the yawing mechanism, the electromagnetic braking system and the hydraulic braking system to regulate the rotation of the wind turbine. It is easy and convenient to shut down the whole system both manually and automatically.
Application of 50kW wind turbine:
1) Housing, office, farm and factory;
2) Telecommunications Station
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station;
| Model No. | H16.5-50KW |
| Configuration | 3 Blades, Horizontal axis, Upwind |
| Rotor Diameter | 16.5m |
| Direction of Rotation | Clockwise looking upwind |
| Blade Material | Fiberglass reinforced composite |
| Rated Power | 50kW @ 11m/s |
| Maximum Output Power | 50kW |
| Battery Bank Voltage | 400 Vdc |
| System Output Voltage | 380 Vac three phase |
| Cut-in Wind Speed | 3m/s |
| Rated rotating rate | 70 r/min |
| Working Wind Speed | 3-25 m/s |
| Survival Wind Speed | 50 m/s |
| Alternator | Permanent magnet alternator, SCF technology |
| Alternator Weight | 1200kg |
| Generator Efficiency | >0.92 |
| Energy monitoring & User control | Siemens PLC controller with touch screen |
| Gearbox | None, Direct drive with front generator design |
| Over Speed Regulation | Auto Yawing & Hydraulic Braking& Pitch control |
| Shutting Down Method | Manual & Automatic electromagnetism Braking |
| Warranty | 2 years |
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
