Summarize:

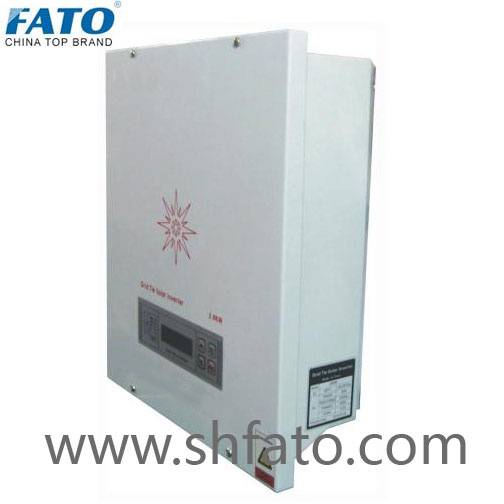

The grid connected inverter can be used with a connection to grid or power lines. This type supplies the loading appliances with electric power produced by photovoltaic systems.
The advantage of grid-type is not to worry any power waste, because by connecting inverter to grid, it can save any surplus electricity.
Features
*Wide DC input voltage range
*DSP controller
*High efficiency by using advanced IGBT and IPM
*MPPT(Maximum power point tracking) technology
*Transformer less, High efficiency
*In accordance with international standards
*Quick and easy installation
*Operation parameters can be adjusted via LCD and keys
*The perfect protection function
*Designed to suitable for critical grid environment
Technical Data
Model FZ-ZB 1000W
DC Input MPPT Voltage Range DC100 ~ 500V
Rated DC Voltage 360V
Control System MPPT
AC Output Output Power 1000W
Rate voltage AC220
Voltage range AC 185 ~ 264V (1 phase)
Normal Grid Frequency 50/60Hz(Grid frequency)
Phases 1 phase 2 wire
Power Factor > 0.95
Current THD At rated power and in the sine wave < 3.5%
Control System PWM
Anti-islanding ≤ 0.5 sec
Total Max. Current 4.5A
Max. Efficiency 97%
Euro Efficiency 96.4%
Structure Protection Class IP65
Cooling system Natural cooling
Noise < 50dB
Data Interfaces External RS232C/RS485
Display LCD
Packing Dimensions
(W*H*D) 510*430*210mm
Net weight 15 kgs
Gross weight 16.8kgs
Protection Inverter Input over voltage, output short circuit, overheat, output DC component.
Grid Anti-islanding, over/under voltage of grid, over/under frequency of grid.
Environment Environment No corrosion gas, flammable gas, oil mist, dust etc.
Operation temperature -10C~40C ( 50C )
Stored temperature -20C~ 65C
Relative humidity 0~100% (Do not wet with dew)
