Product introduction:
Solar inverter is the heart of solar power system. It converts direct current from batteries or solar modules into alternating current AC power to operate lights, appliances or anything that normally operates on power supplied by the utility grid.
Grid-tie solar inverters convert DC power from PV modules into AC power to be fed into the utility grid.

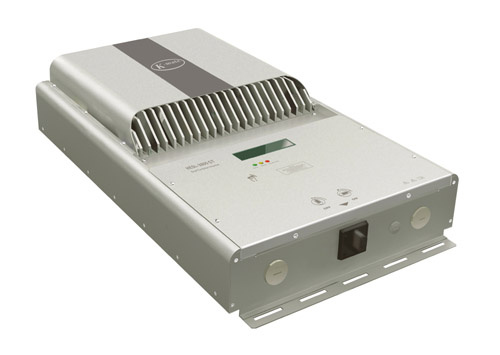

K-mate HESI series inverters are high efficiency & high reliable grid-tie solar inverters. They can be easily applied in residential or commercial installations. Products include the model HESI-2500GT(2500W), HESI-3800GT(3800W), HESI-3000GT(3000W), HESI-5000GT(5000W)T, covering the power from 1000W to 5000W. Bigger size inverter will come soon.
Features
1. HF galvanic Isolation AC transformer
2. LCD display
3. Murphy for back-Light display
4. Big heatsink for natural cool
5. IP65 Protection rating
6. Light weight and versatile mounting bracket
Vantages
1. High reliability
2. Broad range for MPPT
3. Complete protection functions
4. High efficiency low heat emission
5. Light weight
6. Easy to install and operate
7. Customization to meet promptly
8. Excellent service
9. Professional technical support
|
Electrical Specifications |
HESI-5000GT |
|
Input |
|
Input voltage, maximum power point range |
195-550 Vdc |
|
Maximum array open circuit voltage |
600 Vdc |
|
Maximum, Input Current |
22.0Adc |
|
Maximum array short circuit current |
24Adc |
|
Reversal voltage protection |
Short circuit Diode |
|
Ground fail protection |
GF detection, IDIF> 1A |
|
Output |
|
Max output power |
5000W |
|
Nominal output voltage |
230V (240V) |
|
Operating range, utility voltage (default)* |
207-253Vac (211-264 Vac) |
|
Nominal Output frequency |
50HZ/60HZ |
|
Operating range, utility frequency (default)* |
47.0-51HZ/59.3-60.5HZ |
|
Maximum contious output current |
21A |
|
Output over current protection |
30A |
|
total harmonic distortion |
< 3% |
|
Power factor |
> 0.99 (at rated power) |
|
Output characteristics |
Current supply |
|
Output current waveform |
Sine wave |
|
Mechnical Specifications |
|
|
Operating temperature range |
-20 degree to +60 degree |
|
Protection rating |
IP65 |
|
InverterDimension(H× W× D) |
68.7× 40.5× 15cm |
|
Inverter Weight |
26.0kg |
|
System data |
|
|
Model number |
HESI-5000GT |
|
Maximum efficiency |
95.0% |
|
Topology |
HF Transformer |
|
Islanding Protection |
UL1741 |
|
Cooling |
Convection (no fan) |
|
Night-time tare Loss |
1W |
|
Disply |
Backlit, 2× 20 character liquid crystal display |
|
Communication interfaces |
RS485, Canbus |
|
Accessories |
|
|
Remote display |
Provides information on power level & energy production |
Zhongshan K-Mate Electronics Co., Ltd. founded in Y2002, located in Zhongshan city of China, is a professional manufacturer specializing in development, designing, manufacturing of Solar inverter, RF generator, RF Match & RF Splitter. K-mate company attaches great importance to technology development and independent, as large investments of R& D expense for new product development yearly. The company has a master's degree as the main body to the specialized R& D team, with a wealth of the photovoltaic renewable energy and semiconductor experience. This motivated and experienced team enables us to successfully transfer new technologies again and again into practical applications.
K-mate products have been sold to many countries around the world, especially to the Occident. All our products comply strictly with the CE, ISO9001 standard. Based on establishing stable cooperation, we will provide high qualified products and good after-sale services service. The company conducts itself in loyalty, cherishes the technology, depends on quality, innovations to shape up a first class company striving to meet customers needs.
Regarding solar inverter, K-mate is a leading manufacturer in China. All K-mate inverters equip with galvanic isolation transformer, they have safer galvanic feature than transformerless inverter. And comparing with solar inverter with transformer, K-mate products own the features of higher efficient, lighter weight, easier to install. Moreover, they possess wide MPPT voltage range: 195-550V.
K-mate inverters with above advantages will be suitable for all kind of solar panels. You should more option to choose the panel. Products include HESI-2500GT (2.5KW), HESI-3000GT(3000W), HESI-3800GT (3.8KW), and HESI-5000GT (5KW). Welcome to order. OEM is welcome!
