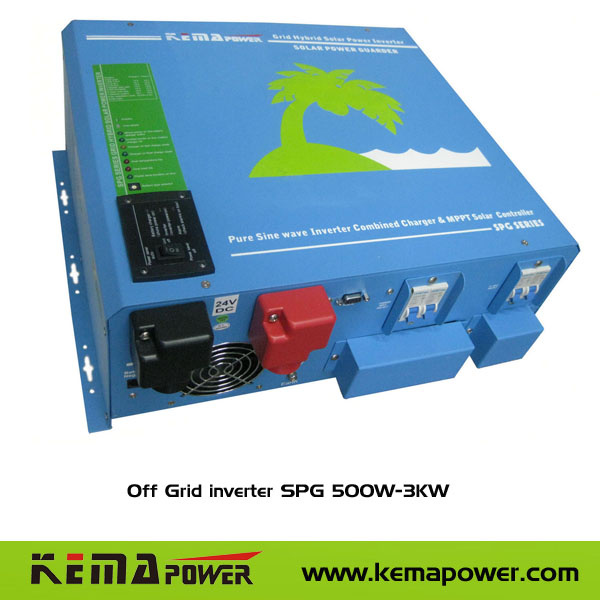

Grid Hybrid Solar Inverter (SPG500W-3000W)
*3 in 1 Off Grid design,Inverter + AC Charger + Controller
*sine wave inverter,big current charger,MPPT PV controller
*Solar Power first or grid power first selectable by user
*plug and play design, with the all breakers of the system
*Auto transfer between solar power and grid power
*Stand by Function
*500-3000W, 24VDC or 48VDC, 220VAC or 110VAC
*need external battery and pv array
Kea features:
1. Grid Hybrid sine wave solar power inverter, Combine Grid power and Solar Power Together
2. Solar energy first, grid power as
3. Combined AC charger and MPPT solar charge controller
4. MPPT solar controller to increase solar energy efficiency
5. Automatic transfer between grid power and solar power within 10ms
6. Plug and play design with the all breakers of solar power system
7. Wall mounted design with wired remote control
8. Power saver( stand by) function with lower idle consume
9. Battery selector for different battery to improve battery life
10. RS232 communication is optional for LED mode
11. SNMP Net Agent card is optional for LED mode
12. LCD display is optional
13. Grid Power Fist, Solar Power as backup design is optional
14. Automatic start Generator function is optional.
| Mode | SPG500 | SPG1000 | SPG1500 | SPG2000 | SPG3000 |
| Continuous power (W) | 500W | 1000W | 1500W | 2000W | 3000W |
| Surge capability (W) | 1500W | 3000W | 4500W | 6000W | 6000W |
| System DC input (VDC) | 12V or 24VDC | 24VDCV | 24VDC | 24VDC | 24VDC |
| AC Output | 110 / 120V/ 220V/230V ±5% , 50HZ or 60HZ. Terminal |
| AC Output waveform | Pure Sine Wave |
| DC output | 12VDC or 24VDC Terminal |
| Efficiency | >85% |
| AC/DC Charger | Max 15A | Max 25A | Max 25A | Max 40AMP | Max 50 |
| Solar Charge Controller | MPPT,20AMP | MPPT,30AMP | MPPT,40AMP | MPPT,50AMP | MPPT 100AMP |
| Adviced PV | 36 or 72 Cell | 72 Cell | 72 Cell | 72 Cell | 72 Cell |
| External battery back | 12 or 24VDC | 24VDC | 24VDC | 24VDC | 24VDC |
| Breakers | with Breakers for AC Input , AC output, PV input , DC output |
| Battery low protection | yes |
| Over discharge protection | yes |
| Resume voltage | yes. When fault remove |
| Over voltage protection | yes |
| Overload protection | yes. |
| With cooling fan | yes |
| Display | LED for Inverter,charger,Battery Capacity state, DC load state and fault. LCD display is optional |
| Running Temperature | -35 degree to 55 degree |
| High temperature protection | YES |
| Short circuit protection | YES |
| Reverse polarity protection | YES. Only for DC load side. |
| Stand by | yes. continou ouput while > 25W |
| Communication | RS232 Power Manager, NetAgent SNMP , Optional for LED mode |
| Package Size(mm) | 608*558*293 | 608*558*293 | 608*558*293 | 608*558*293 | 608*558*293 |
| Gross Weight KG | 21 | 24 | 24 | 26 | 32 |
| product Size (mm) | 460*440*200 | 460*440*200 | 460*440*200 | 460*440*200 | 460*440*200 |
| product weight( kg) | 15KG | 16KG | 16KG | 19.5KG | 24KG |
![]()
![]()
