Home Generator Products Good Service Semi-Automatic Diesel Generators Factory Diesel Hho Generator

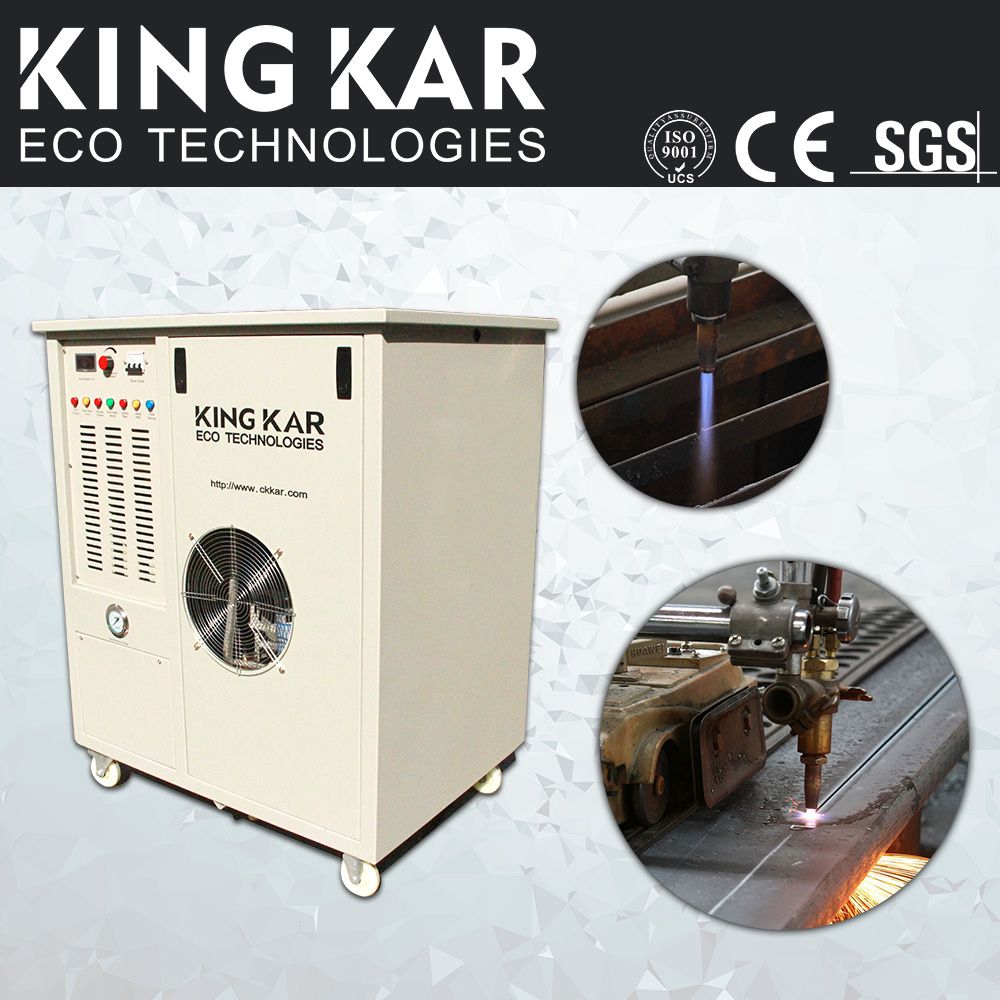

Good Service Semi-Automatic Diesel Generators Factory Diesel Hho Generator

Good Service Semi-Automatic Diesel Generators Factory Diesel Hho Generator
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Oxy-hydrogen generator source:

Electricity flows to the Adjustable Transformer Controller; The alternating current then goes into the Commutator, and transforms into direct current.
The direct current connects to the anode "+", and cathode "-" in the electrolytic cell, to electrolyze water into pure hydrogen and oxygen.
As the Oxyhydrogen gas passes through the filter and pressure detector, the flame device (with antibackfire safety valve) ignites to a temperature between 800 and 3200 degrees centigrade.
It can be used for precision cutting processing equipment, giving results that are economical, reliable, safe, and environmental.



Some oxy-oxy-hydrogen Advantages — Cutting of Iron/steel:
Oxy-hydrogen Flame can punch holes in iron/steel and other materials without additional oxygen. The gas already contains all the oxygen it needs to burn perfectly.
Oxy-hydrogen holes have very little taper (compared with fuel-gasses) and 'throwback' significantly less material when punching through iron/steel.
Oxy-hydrogen Flame cones are long, allowing the torch to be held farther away from the work. This results in virtually no torch cleaning maintenance or tip damage.
Oxy-hydrogen Flame cuts iron much faster than any other torch gas on a BTU to BTU basis.
Oxy-hydrogen Flame will cut thicker iron with the same torch tip and oxygen pressures.
Oxy-hydrogen Flame will cut the same thickness of steel using a smaller torch tip. This allows for faster, cleaner cuts with less kerf.
Oxy-hydrogen Flame cuts from 10% to 25% faster with excellent quality and no slag or dross.

Technical Data Sheet
ModelKingkar-3000Kingkar-5000Kingkar-7000Kingkar-10000
Voltage(V)380  ±10%,50/60Hz,three phase
Rated capacity(KVA)9152231
Working pressure(Mpa)≤0.2
Relative humidity(%)≤90
Rated gas output(L/H)3000±10%5000±10%7000±10%10000±10%
Water consumption(L/H)1.62.73.85.8
Maximum Cutting Thickness(mm)110220310420
Effective perforated thickness(mm)40607090
Cooling wayAir cooling
Insulation classF
power protection gradeIP2S
Flame temperature(T)800-3200 adjustable
Working mediumFiltered water or deionized water or soft water
Workingcontinuous
environment temperature(T)0-40
Dimension(L×W×H)mm1020*770*12701250*830*17201300*930*18201500*930*1940
Weight(KG)293567653894

Prod Model: Kingkar13000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Kingkar13000
Input Power: 3 Phase 380 V (50-60) Hz
Max.Gas Output(Lph): 13000L/H
Working Current(a): 500
Water Consumption(L/H): 7.6
Rated Capacity: 44kVA
Flame Temperature: 800-3200 Adjustable
Working Time: Continuous
Appearance Size(L*W*H)Mm: 1400*880*1880
Weight(Kg): 620
Gas Source: Water and Electricity
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.



KingKar Oxy-hydrogen generator for boiler only consumes water

And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.

Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial   And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
