Good quality affordable price Super Silent Cummins 350kVA Generator (GDC350*S)Safety
Design, production and testing of the generator sets comply with EU CE safety standard;
Equipped with circuit breaker to avoid possible electric risk at re-startup when engine stops in emergency.
The controller has a historical operation recording function for troubleshooting and inspection.
Powerful Engines
Adopts world-famous engines,with low noise and low emission.
Rugged structure ensures lowest vibration.
Common rail system: (for some models) significantly lowers the combustion temperature, and also leads to cleaner exhaust.
For the turbocharged machines, the carbon dioxide (CO2) emission is reduced.
Control System
Micro-processor cored digital system.
Multiple languages, automatic control.
Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs.
1. Specification of genset |
| Gensets model | GDC350*S |
| Prime power | 280KW/350KVA |
| Standby power | 310KW/388KVA |
| Rated Voltage | 220/380V |
| Rated frequency(HZ) | 50HZ/60HZ |
| Rated Speed | 1500rpm/1800rpm |
| Power Factor | 0.8(lagging) |
| Tank Capacity: L | 45 0L |
| Dimensions(mm) (L×W×H) | 3200*1480*2050 |
| Genset Weight(kg) | 3040 |
| 2. Specification of diesel engine |
| Engine brand | CUMMINS |
| Engine model | NTA855 -G 4 |
| Type and Cylinder | 4 Cycle; In-line;6 Cylinder |
| S tandby Rated Output kW | 351KW |
| Oil Capacity L | 38.6 |
| Coolant Capacity L | 20.8 |
| Starting System | Electric - 24 volt DC |
| Displacement L | 14 |
| Battery Voltage /Capacity | 24 VDC |
| Exhaust Temperature o c | 524 |
| Fuel Consumption 100% L/hr | 75 |
| Fuel Consumption 75% L/hr | 56 |
| Fuel Consumption 50% L/hr | 37 |
| 3. Specification of alternator |
| Alternator brand | Stamford |
| Alternator model | HCI444E |
| Windings | 100% copper |
| Connection Type | Reconnectable |
| Insulation Type | Class H |
| A.V.R. Model | AS440 |
| Voltage Regulation NL - FL | ± 0.5% |
| Underspeed Protection | Standard |
| Overexcitation Protection | IP23 |
| Phase Sequence | A(U), B(V), C(W) |

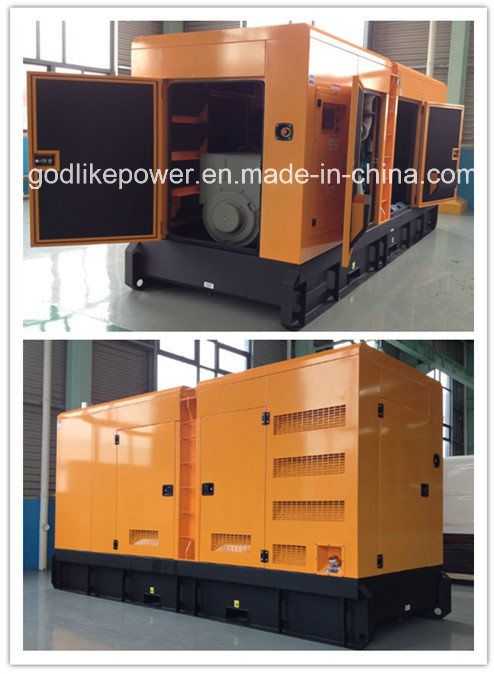

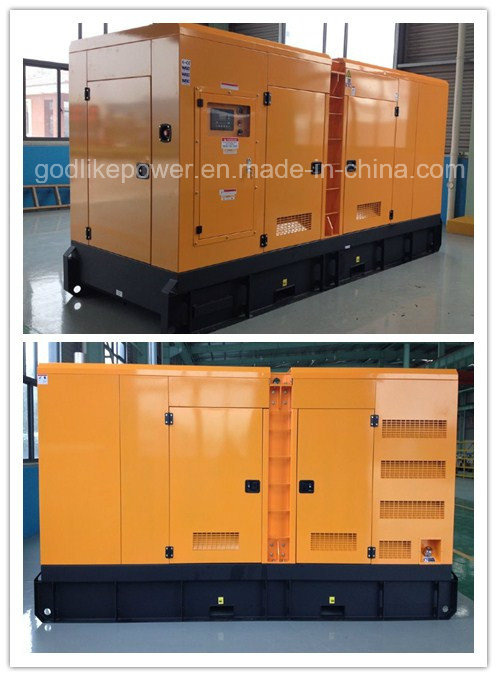

Generator photos:

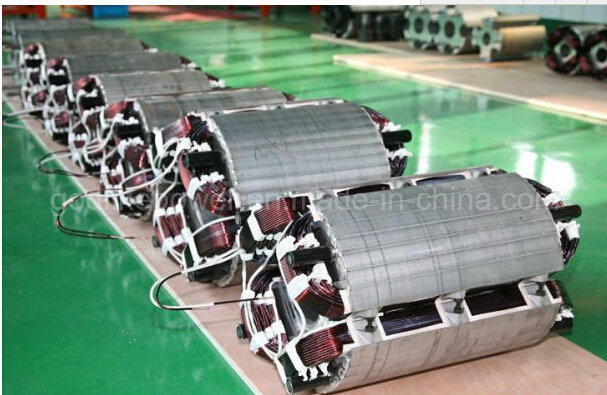

100% pure copper alternator
Contact: Ms Vicki Yuan
Tel: 86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
